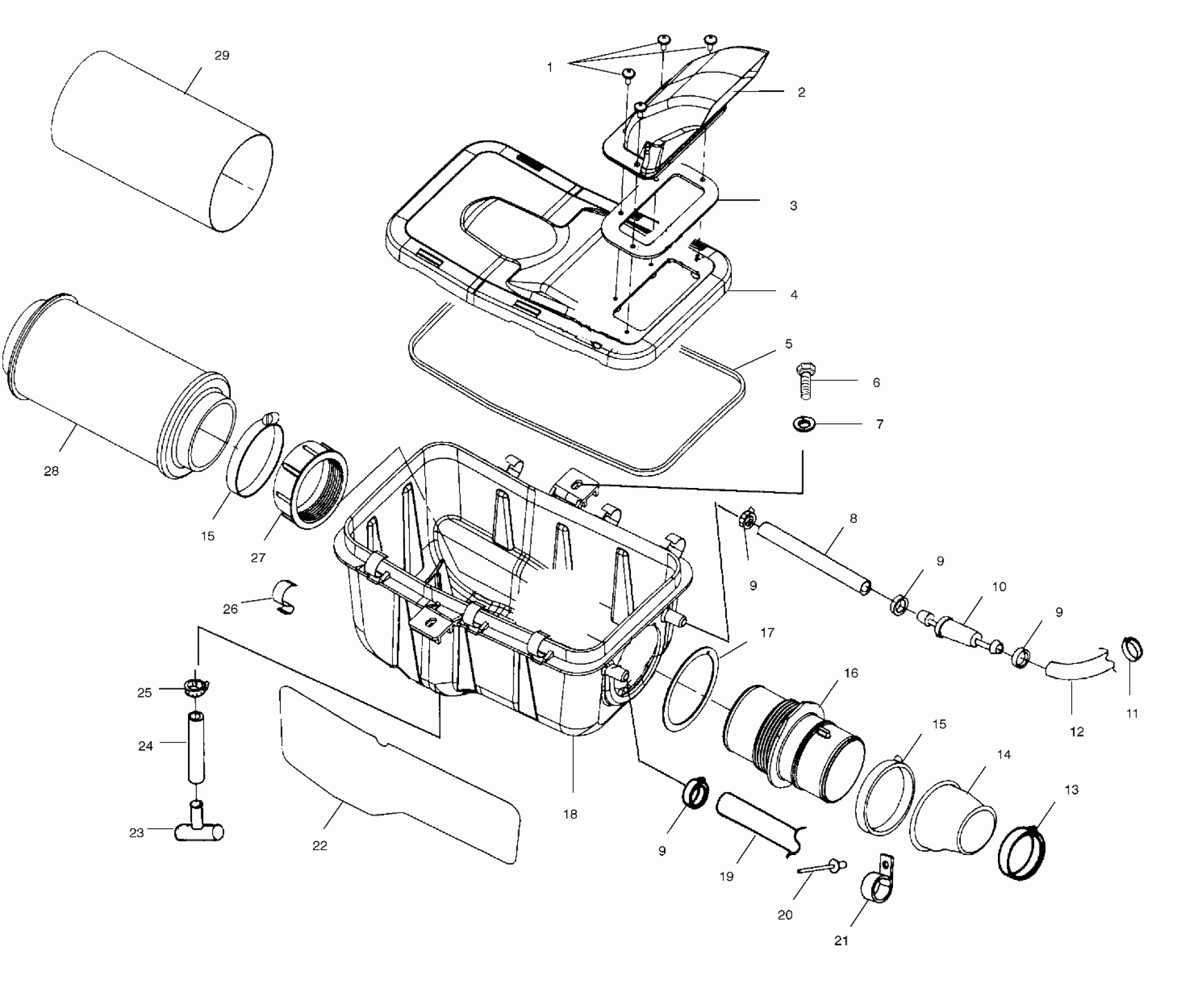

Polaris SCRAMBLER 500 4X4 - A01BG50AA AIR BOX - A01BG50AA (4963766376C005) Diagram

#

Description
Price

1

SCREW,SEMS(10)

7517541

$4.76

2

DUCT,INLET,AIRBOX COVER

5432859

Unavailable

3

GASKET,INTAKE

5411422

$6.59

4

COVER,AIRBOX

5432868

$56.65

5

SEAL,AIRBOX COVER

5811482

$28.32

6

SCREW(10)

7515179

$2.38

7

WASHER(10)

7558301

$1.19

8

LINE,BREATHER,3/8 ID.

8450073-600

Unavailable

9

CLAMP,HOSE

7080699

$1.59

9

CLAMP,HOSE

7080699

$1.59

9

CLAMP,HOSE

7080699

$1.59

9

CLAMP,HOSE

7080699

$1.59

10

FILTER,BREATHER,IN LINE

2530029

$6.35

11

CLAMP,HOSE,SPRING

7080694

$6.64

12

HOSE,BRTHR,FORMED,W/CHAFE

5411847

Unavailable

13

CLAMP, NARROW BAND(10)

7080511

$4.76

14

BOOT,CARB,500 HYBRID

5411414

Unavailable

15

CLAMP,BAND,NARROW

7080413

$3.17

15

CLAMP,BAND,NARROW

7080413

$3.17

16

DUCT,CARB.INLET

5432473

Unavailable

17

GASKET,CARB.IN.DUCT

5830128

Unavailable

18

BOX,AIR INT,4-STROKE

5432774

$125.46

19

HOSE,BRTHR,SLIT,63CM,3/8I.D

5411873

Unavailable

20

RIVET,3/16X.402(50)

7621432

$1.19

21

CLAMP-HOSE,.625 DIA VNL COATED

7080880

$5.56

22

FOIL,AIRBOX

5811650

Unavailable

23

Plug, Trap

5432377

Unavailable

24

FUEL LINE

8450059-150

Unavailable

25

CLAMP,HOSE,(10)

7080650

$3.97

26

CLIP-AIR BOX

5242044

$9.52

27

COLLAR,CARB INLET

5432601

$12.94

28

FILTER,AIR INTAKE

7080595

$27.78

29

FILTER,PRECLEAN.SLEEVE

5811633

$11.90
