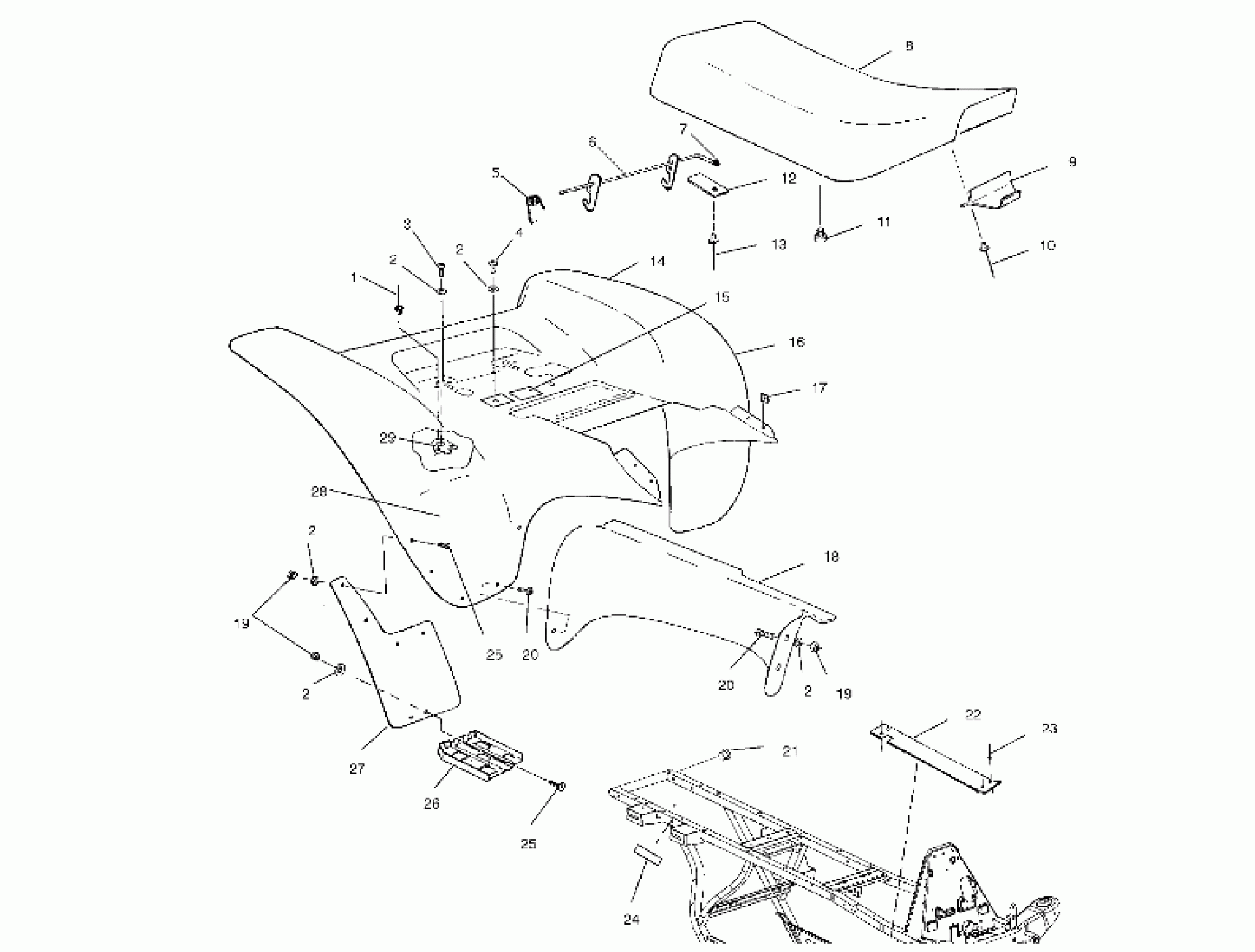

Polaris SCRAMBLER 500 2X4 - A02BA50AA REAR CAB - A02BA50AA/AB (4969976997A04) Diagram

#

Description
Price

1

RIVET(50)

7621472

$1.49

2

WASHER, FLAT(10)

7555859

$1.19

2

WASHER, FLAT(10)

7555859

$1.19

2

WASHER, FLAT(10)

7555859

$1.19

2

WASHER, FLAT(10)

7555859

$1.19

2

WASHER, FLAT(10)

7555859

$1.19

3

BOLT(10)

7512232

$1.19

4

SCREW(10)

7512242

$2.38

5

SPRING,LATCH,LIGHT

7041607

Unavailable

6

LATCH,SEAT,BLK. Substituted by 1040412

1040412-067

Unavailable

7

CAP,SEATLATCH,GEN 3

5411392

Unavailable

8

SEAT,RED,W/WHITE "POLARIS" (AA)

2682453-288

Unavailable

8

COVER,SEAT,BLAZ.RED (AA)

2681769-288

Unavailable

8

SEAT, ASMSCR 500 2X4 "X" (AB)

2682888

Unavailable

8

SEAT-COVER,SCR 500 2X4 "X" (AB)

2682889

$94.44

9

TONGUE,SEAT

5431986

$10.51

10

RIVET(50)

7621479

$1.98

11

BUMPER-RUBBER

5412067

$3.97

12

BRACKET,LEVER RETAINER

5211033

$34.99

13

BLIND RIVET(50)

7621403

$1.19

14

Foil, Rear Cab, Small

5810991

Unavailable

15

DECAL-4 STRK,CARB/FILTER INFO

7079902

Unavailable

16

CAB-REAR,GEN 3,BLAZING RED (AA)

5434014-288

Unavailable

16

CAB-REAR,GEN 3,CDS,BLK MET (AB)

5434014-177

Unavailable

17

NUT, SPEED(10)

7670057

$1.19

18

SHIELD,MUFFLER/FOIL ASM,GEN3

2632274

Unavailable

18

FOIL,FOAM

5811113

Unavailable

19

NUT-LOCK(10)

7542122

$1.19

19

NUT-LOCK(10)

7542122

$1.19

20

Screw

7517264

$3.97

20

Screw

7517264

$3.97

21

PLUG,ENDCAP,RIBBED

5432831

$5.65

22

GUARD-CLUTCH, BLK

5241403-067

$5.71

23

RIVET-3/16-.090-.290

7661637

$1.19

24

DECAL-REFLECT.2.88,RED

7079925

$8.08

25

BOLT, BLACK(10)

7512282

Unavailable

25

BOLT, BLACK(10)

7512282

Unavailable

26

Footpad (See Front Cab Pg. A3 Ref. 14) (See Front Cab Pg. A3 Ref. 14)

----

Unavailable

27

MUDFLAP,RH,R.HYBRID

5850148

Unavailable

27

MUDFLAP-REAR,HYBRID,LH

5812134

Unavailable

28

Foil, Rear Cab

5810957

Unavailable

29

BRKT,R.HOLDDOWN

5220880

Unavailable
