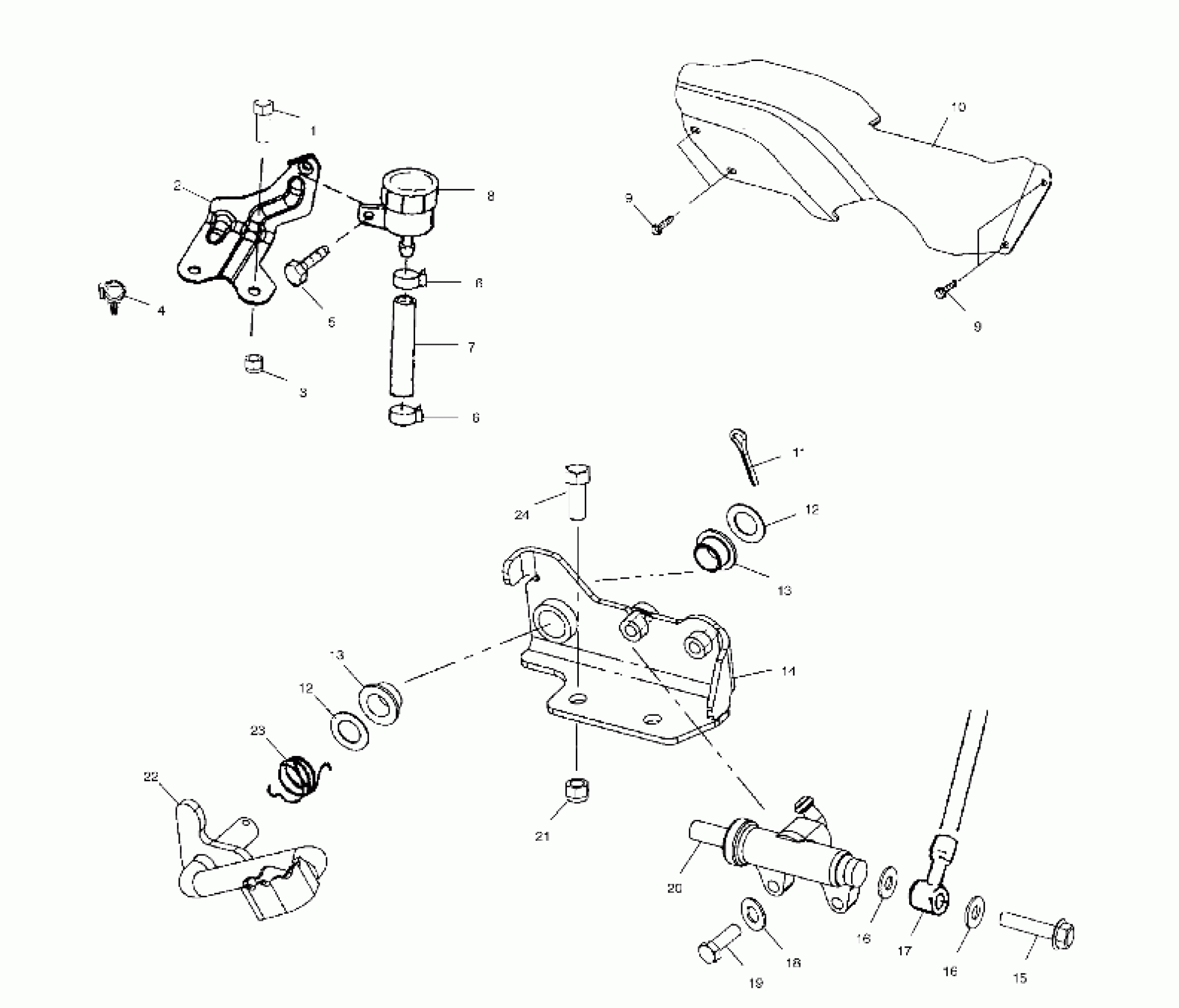

Polaris SCRAMBLER 500 2X4 - A02BA50AA REAR BRAKE MASTER CYLINDER - A02BA50AA/AB (4969976997B13) Diagram

#

Description
Price

1

SCREW(10)

7512113

$3.99

2

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.75

3

NUT-LOCK(10)

7542122

$1.49

4

CLIP,SILENCER,(10)

7670102

$2.39

5

SCREW(10)

7512208

$3.99

6

HOSE CLAMP, RED

7080003

$1.49

6

HOSE CLAMP, RED

7080003

$1.49

7

HOSE,RESERVOIR,1/4ID,4.75 IN

1910404

Unavailable

8

RESERVOIR ASM,R.BRAKE

1930854

$35.99

9

SCR-1/4-20X3/4-TR/TX/TAP-M(10)

7517916

$6.39

9

SCR-1/4-20X3/4-TR/TX/TAP-M(10)

7517916

$6.39

10

GUARD,PROP SHAFT,SIDE

5433457

$95.19

11

COTTER PIN(10)

7661401

$1.49

12

WASHER(10)

7555919

$4.99

12

WASHER(10)

7555919

$4.99

13

BUSHING-PEDAL PIVOT

5431107

$8.79

13

BUSHING-PEDAL PIVOT

5431107

$8.79

14

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

15

BOLT-BANJO, 10MM X 1.25-6G

1910958

$7.99

16

Seal

5410988

$4.84

16

Seal

5410988

$4.84

17

Line Foot Brake Rear (See Rear Caliper Mounting Pg. B9 Ref. 6) (See Rear Caliper Mounting Pg. B9 Ref. 6)

-------

Unavailable

18

LOCK WASHER(10)

7552801

$1.59

19

SCREW(10)

7515179

$2.39

20

BRAKE MSTR CYL,FOOT,BANJO

1910311

$166.01

21

NUT-5/16-18 NYLOK-Y

7542324

$1.49

22

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

23

SPRING-TORSION,BRAKE

7041750

$8.79

24

BOLT(10)

7515321

$1.49
