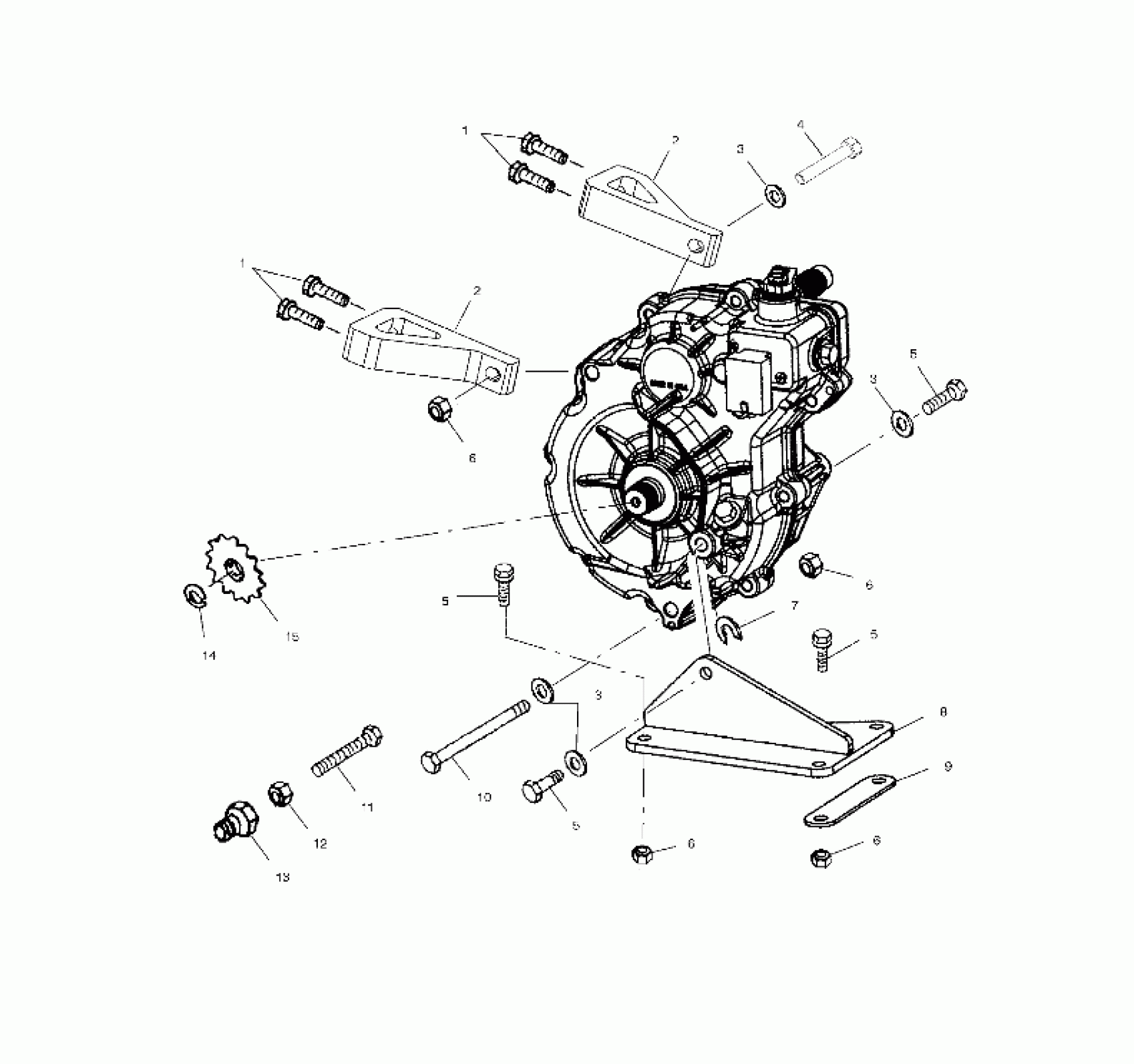

Polaris SCRAMBLER 500 2X4 - A02BA50AA GEARCASE MOUNTING - A02BA50AA/AB (4969976997C02) Diagram

#

Description
Price

1

SCREW

7517632

$5.59

1

SCREW

7517632

$5.59

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.99

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.99

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

3

WASHER(10)

7555806

$1.49

4

Screw

7517642

$7.99

5

SCREW(10)

7512492

$1.49

5

SCREW(10)

7512492

$1.49

5

SCREW(10)

7512492

$1.49

5

SCREW(10)

7512492

$1.49

6

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

6

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

6

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

6

NUT-3/8-16 FLG LOCK-Y

7547089

$4.79

7

SPACER,(10) (.020)

5210764

Unavailable

7

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

7

SHIM,(.030) (.030)

5211517

Unavailable

8

MOUNT,TRANSMISSION,2X4,BLK

1012886-067

Unavailable

9

SPACER-TRANSMISSION MNT,BLK

5243296-067

$5.91

10

SCREW

7517646

$7.19

11

Screw

7517631

$5.59

12

NUT(10)

7542440

Unavailable

13

Plug Drain (See Gearcase Pg. C8 Ref. 36) (See Gearcase Pg. C8 Ref. 36)

-------

Unavailable

14

RING,SNAP(10)

7710434

$3.99

15

SPKT, 12T

3221044

$43.99
