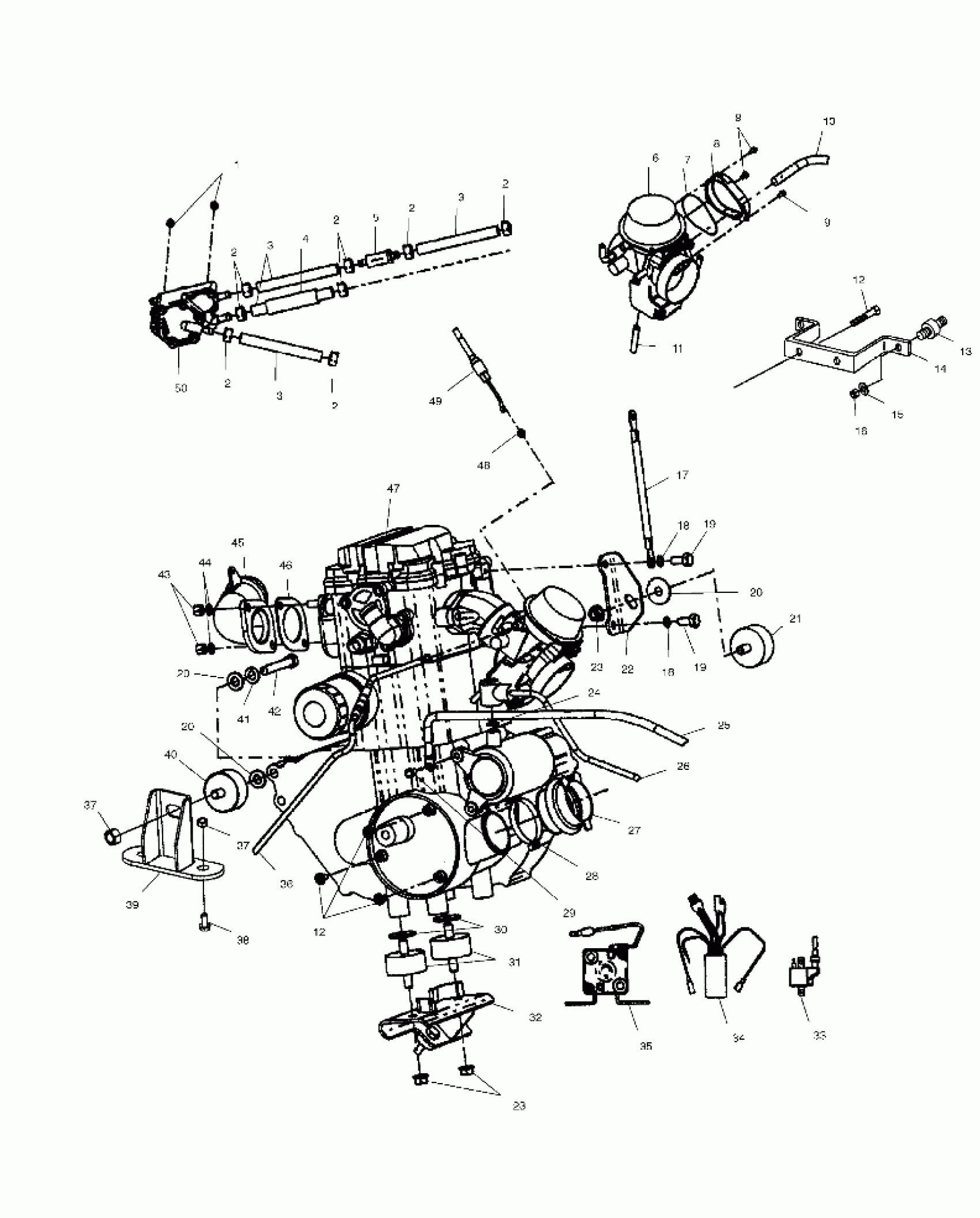

Polaris SCRAMBLER 500 2X4 - A02BA50AA ENGINE MOUNTING - A02BA50AA/AB (4969976997A11) Diagram

#

Description
Price

1

NUT-M5X.8,HX NYL-Y

7546601

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

2

HOSE CLAMP, RED

7080003

$1.49

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

3

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

4

SHEATH/FOIL,LAM,58CM. Substituted by 8450080-65

8450080-58

$64.75

5

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

6

Asm. Carburetor (See Carburetor Pg. D2 Ref. 18) (See Carburetor Pg. D2 Ref. 18)

-------

Unavailable

7

O-RING

3130929

$13.19

8

COVER

3130930

$31.99

9

SCREW

3130924

$1.59

9

SCREW

3130924

$1.59

10

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

11

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

12

SCREW & WASHER(10)

3084205

$3.99

12

SCREW & WASHER(10)

3084205

$3.99

13

Mount, Rubber

3110032

$7.99

14

BRKT,CARB.MOUNT,BLK.

5242258-067

Unavailable

15

WASHER(10)

7552605

$5.27

16

NUT HEX(10)

7542105

$3.99

17

CABLE,GND-ENGINE

4010132

Unavailable

18

LOCK WASHER(10)

7552901

$1.49

18

LOCK WASHER(10)

7552901

$1.49

19

BOLT(10)

7512315

$4.79

19

BOLT(10)

7512315

$4.79

20

WASHER(10)

7555823

$3.99

20

WASHER(10)

7555823

$3.99

20

WASHER(10)

7555823

$3.99

21

MOUNT,RUBBER,TOP

3110044

Unavailable

22

BRKT,ENG.MT,TOP,BLK

5242674-067

Unavailable

23

NUT

7547108

$4.79

23

NUT

7547108

$4.79

24

O RING

3083648

$1.99

25

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

26

CABLE,SOL/STARTER

4010093

$47.99

27

BOOT,CLUTCH INTAKE

5410421

$11.19

28

CLAMP, NARROW BAND(10)

7080511

$4.79

29

BOLT&WASHER ASM.

3082038

$3.99

30

WASHER, FLAT(10)

7555815

$3.99

31

MOUNT,RUBBER,FRONT

3110046

Unavailable

32

MOUNT,ENGINE,REAR,500,BLK

1013222-067

$23.99

33

DESC NOT_AVAILABLE

3084630

Unavailable

34

CDI-SYSTEM

3086982

Unavailable

35

SWITCH-MAGNETIC Substituted by 3085521

3083211

Unavailable

36

CABLE-CHOKE,FRICTION,26"

7081007

$42.46

37

NUT-5/16-18 NYLOK-Y

7542324

$1.49

37

NUT-5/16-18 NYLOK-Y

7542324

$1.49

38

SCREW(10)

7515398

$2.39

39

MOUNT,FR.ENGINE,BLK.

1040688-067

$14.68

40

MOUNT,MOTOR

3110067

Unavailable

41

WASHER(10)

7552603

$1.49

42

BOLT(10)

7515438

$4.79

43

NUT(10)

3080285

Unavailable

44

WASHER LOCK ,(10)

3080530

$3.19

45

MANIFOLD,BLK.

1260994-029

$189.99

46

GASKET, EXH. Substituted by 3085075

3084689

Unavailable

47

ENG.EH50PLE-04 NOTE: The Short Block assembly contains a crankcase assembly cylinder and cylinder head assembly and a piston & crankshaft assembly. Prior authorization required fo

3085822

Unavailable

48

GUIDE,CABLE

3130543

$27.99

49

CABLE-THROTTLE,1/4 TURN,4 STK

7080967

$55.99

50

PUMP, FUEL *

3085275

$77.21
