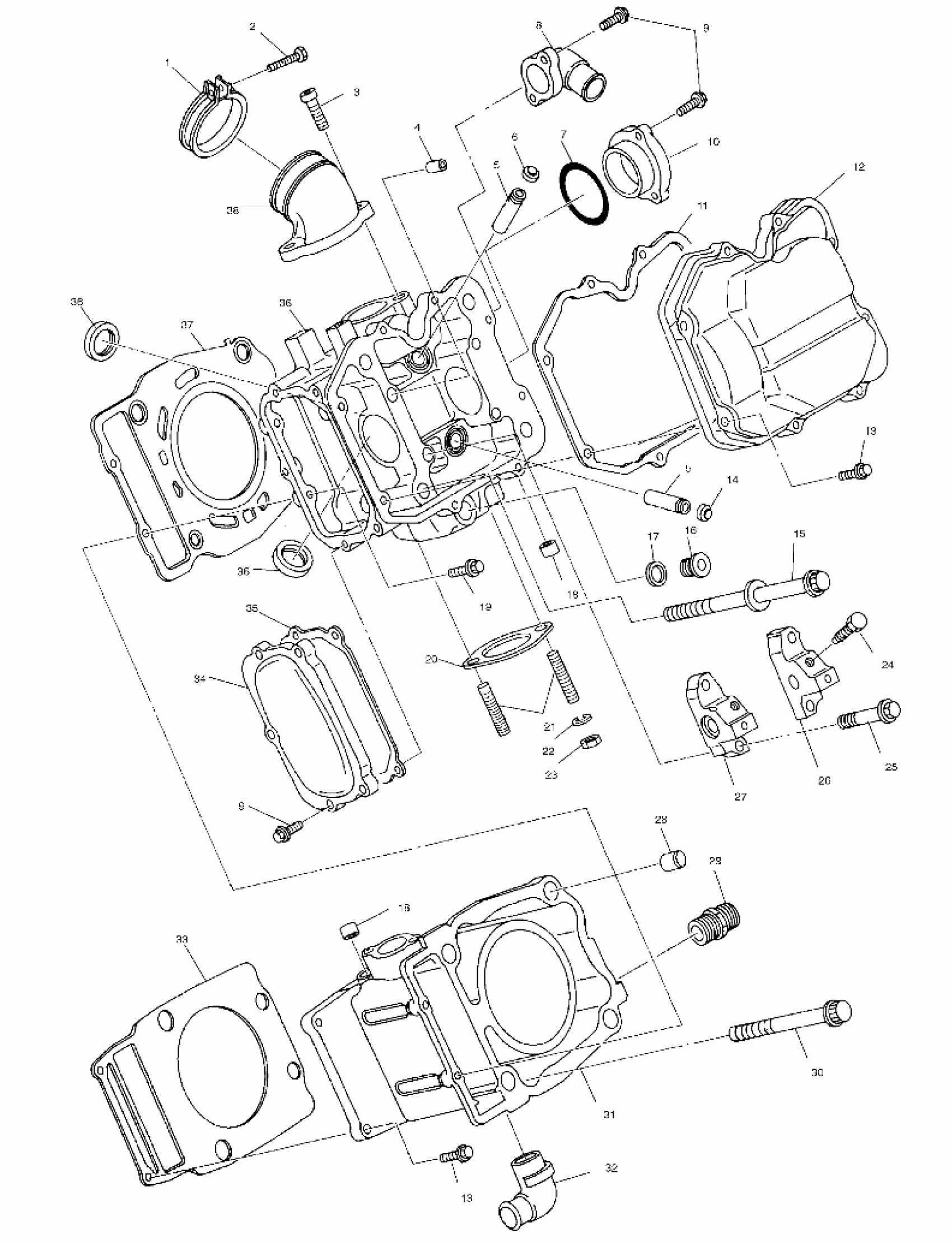

Polaris SCRAMBLER 500 2X4 - A02BA50AA CYLINDER - A02BA50AA/AB (4969976997C11) Diagram

#

Description
Price

1

BAND ASM. (Incl. 2)

3084045

Unavailable

2

SCREW,(10)

3081497

$2.39

3

Bolt, Allen

3081330

$3.99

4

PIN,STRAIGHT

3084857

Unavailable

5

GUIDE,VALVE

3084994

$39.99

5

GUIDE,VALVE

3084994

$39.99

6

SEAL,INTAKE VALVE

3084858

$13.59

7

O-RING

3084867

$23.99

8

ADAPTER,(WATER OUT) Substituted by 3084870

3085072

Unavailable

9

BOLT,FLANGE(10)

3084877

Unavailable

9

BOLT,FLANGE(10)

3084877

Unavailable

10

ADAPTER,CAMSHAFT

3084866

Unavailable

11

GASKET,(R.COVER)

3085074

$31.99

12

COVER,ROCKER

3085073

$75.99

13

BOLT, FLANGE

3084874

Unavailable

13

BOLT, FLANGE

3084874

Unavailable

14

SEAL,EXHAUST VALVE

3084859

$23.99

15

BOLT

3084875

Unavailable

16

PLUG

3084860

$7.19

17

GASKET

3084861

$4.79

18

PLUG, BLIND

3084862

Unavailable

18

PLUG, BLIND

3084862

Unavailable

19

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

20

GASKET,EXH.

3085075

$39.99

21

STUD,(10)

3085326

Unavailable

22

WASHER LOCK ,(10)

3080530

$3.19

23

NUT(10)

3080285

Unavailable

24

BOLT (ROCKER SHAFT)

3085854

Unavailable

25

BOLT

3084876

$4.79

26

SUPPORT,VALVE ROCKER (PTO)

3084864

Unavailable

27

SUPPORT,VALVE ROCKER (MAG)

3084863

$91.99

28

PIN,STRAIGHT

3084838

Unavailable

29

UNION,OIL PUMP

3084849

Unavailable

30

BOLT, FLANGE

3084873

Unavailable

31

CYLINDER * (Incl. 32)

3086811

Unavailable

32

PIPE, 2 ELBOW Substituted by 3086747

3084130

Unavailable

33

Gasket, Cylinder

3085370

$38.60

34

Cover, Camshaft

3084868

Unavailable

35

GASKET-COVER CAM

3086200

Unavailable

36

HEAD,CYLINDER * (Incl. 4-6,14,16-18,21)

3085527

$712.79

36

HEAD,CYLINDER * (Incl. 4-6,14,16-18,21)

3085527

$712.79

36

HEAD,CYLINDER * (Incl. 4-6,14,16-18,21)

3085527

$712.79

37

GASKET, HEAD

3085371

$55.99

38

ADAPTER

3085809

Unavailable
