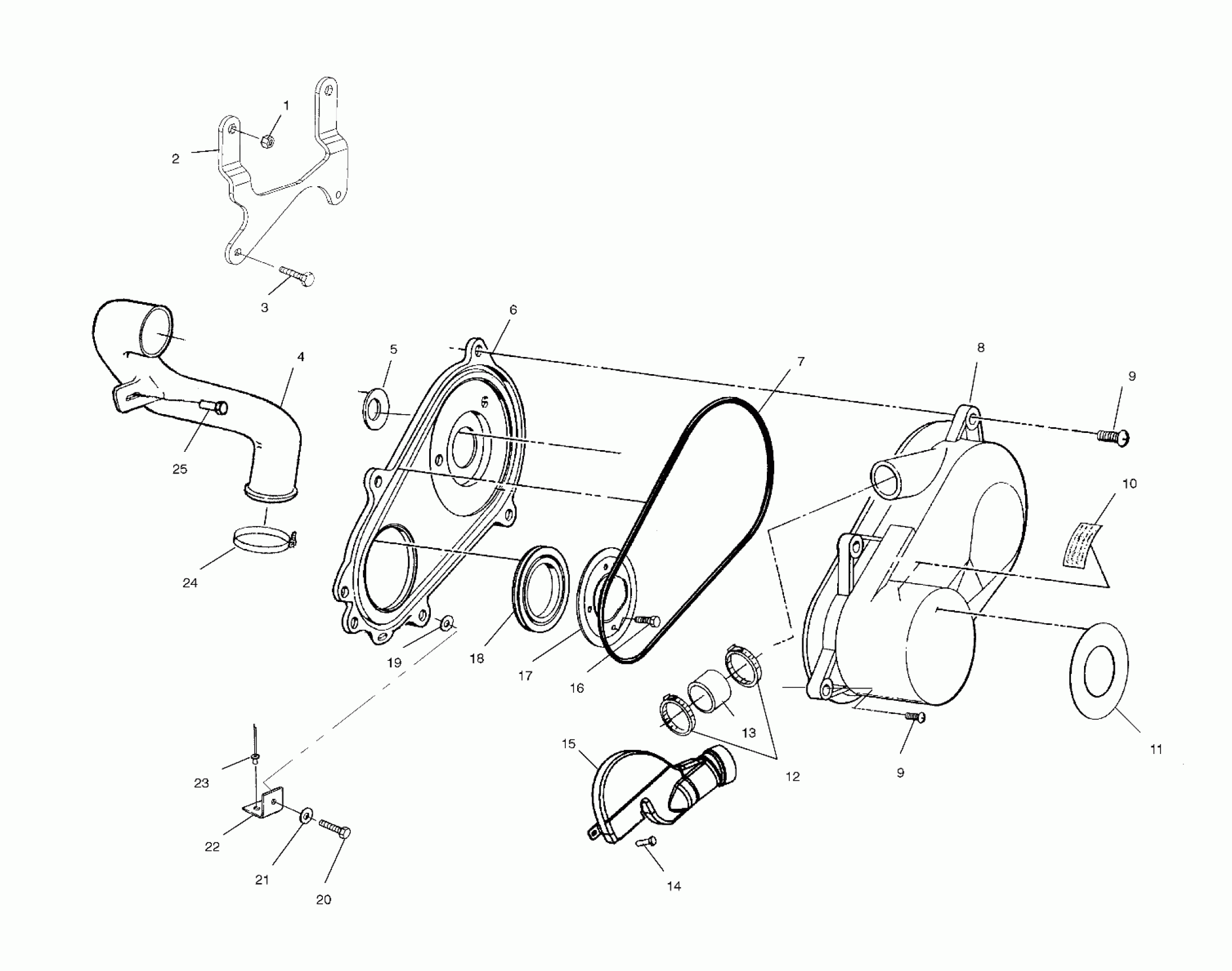

Polaris SCRAMBLER 500 2X4 - A02BA50AA CLUTCH COVER - A02BA50AA/AB (4969976997C04) Diagram

#

Description
Price

1

NUTSERT,HEX

7547067

$6.23

2

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

3

BOLT(10)

7512232

$1.49

4

DUCT,INLET,DOWN TUBE

5432698

Unavailable

5

SEAL,CVR,CASE 1/2

5411180

$24.27

6

Kit, Inner Clutch Cover (Incl. 9,20)(If built after 4/12/02)

2201851

$125.46

6

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 9,20)(If built before 4/12/02)

2201160

$121.41

7

SEAL,CLUTCHCOVER

5521301

$30.88

8

COVER,CLUTCH-OUTER,HV,BLK

5433451-070

$178.08

9

SCREW(10)

7512094

$1.59

9

SCREW(10)

7512094

$1.59

10

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

11

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

13

BOOT,DUCT,HI-FLOW

5411489

Unavailable

14

SCR-1/4-20X3/4-TR/TX/TAP-M(10)

7517916

$6.39

15

DUCT-CLUTCH,OUT,HI-FLOW,13.6

5434160

Unavailable

16

BOLT/RBR WASHER 1/4-20X1,ASM.(10)

7517860

Unavailable

17

BRACKET,CLUTCH SEAL

5242046

$35.99

18

Seal, Cover Case

5410575

Unavailable

19

WASHER,NYLON

7555932

$2.39

20

Screw

7512098

$1.59

21

WASHER(10)

7555935

$2.39

22

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

23

RIVET-3/16-.090-.290

7661637

$1.49

24

CLAMP, NARROW BAND(10)

7080511

$4.79

25

Screw

7517916

$6.39
