Description

Price

1

Screw

3130821

$7.19

2

COVER,DIAPHRAGM

3130914

$43.99

3

SPRING

3130911

$10.39

4

RING

3130913

$5.59

5

RING,"E"

3130908

$6.39

6

RING

3130915

$5.59

7

NEEDLE-JET

3131358

$40.46

8

DIAPHRAGM

3130910

$63.99

9

VALVE,PISTON

3130912

$59.99

10

GUIDE,CABLE

3130543

$27.99

11

THROTTLE SHAFT ASSM.

3130931

$63.99

12

RING

3130932

$1.75

13

SPRING

3130927

$6.15

14

SCREW

3130933

$2.39

14

SCREW

3130933

$2.39

15

WASHER

3130926

$3.99

16

CASE

3130925

$51.99

17

JET, (PAJ1)

3130619

$7.27

18

ASM-CARBURETOR (Incl. 1-53)

3131307

$505.78

19

JET-NEEDLE Substituted by 3130920

3131309

Unavailable

20

BLOCK-JET Substituted by 3130909

3131290

Unavailable

21

RING,"O"

3130916

$4.79

22

DESC NOT_AVAILABLE

3131208

Unavailable

23

PLUNGER ASM. Substituted by 3130539

3130593

$34.74

24

SPRING

3130538

$4.79

25

HOLDER,GUIDE

3130199

$28.32

26

CAP

3130519

$10.39

27

E-RING

3130518

$1.59

28

PACKING

-------

Unavailable

29

SEAL

3130515

$11.99

29

SEAL

3130515

$11.99

30

Screw

3130906

Unavailable

31

VALVE,THROTTLE (120)

3130907

$43.99

32

ADJUSTER

3130934

$12.99

33

Spring

3130525

$4.79

34

Washer

3130523

$2.39

35

O-Ring

3130522

$5.65

36

JET-PILOT Substituted by 3130624 (#40)

3131306

Unavailable

37

VALVE-NEEDLE (1.5)

3131359

$67.99

38

O-RING

3130928

$6.39

39

O-RING Substituted by 3130929

3131294

Unavailable

40

COVER

3130930

$31.99

41

SCREW

3130924

$1.59

42

SPRING,THROTTLE ADJ.

3130010

$8.89

43

ASM-CABLE ADJUSTER

3131295

Unavailable

44

WASHER

3131296

$9.59

45

CLIP

3131242

$30.79

46

SCREW-GUIDE Substituted by 3130321

3131291

Unavailable

47

O RING

3130239

Unavailable

48

JET-MAIN(#155) Substituted by 3130571 (#155)

3131308

Unavailable

49

RING

3130919

Unavailable

50

SCREW

3130935

$5.59

51

FLOAT BODY ASSM.

3130923

$63.99

52

SEAL

3130917

$7.19

53

ASM-FLOAT Substituted by 3130921

3131293

Unavailable

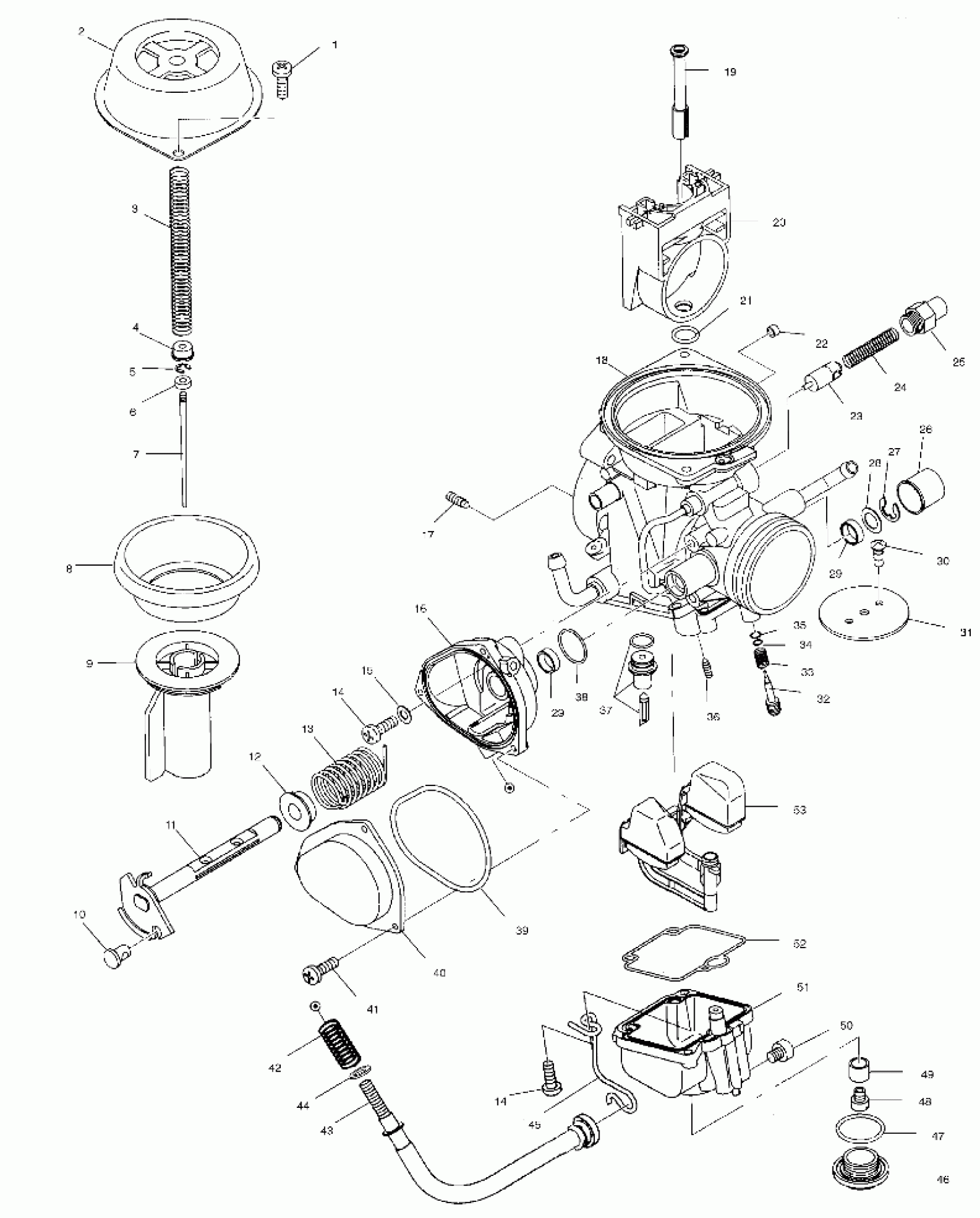

Polaris SCRAMBLER 500 2X4 - A02BA50AA CARBURETOR - A02BA50AA/AB (4969976997D01) Diagram

Screw

COVER,DIAPHRAGM

SPRING

RING

RING,"E"

RING

NEEDLE-JET

DIAPHRAGM

VALVE,PISTON

GUIDE,CABLE

THROTTLE SHAFT ASSM.

RING

SPRING

SCREW

SCREW

WASHER

CASE

JET, (PAJ1)

ASM-CARBURETOR (Incl. 1-53)

JET-NEEDLE Substituted by 3130920

BLOCK-JET Substituted by 3130909

RING,"O"

DESC NOT_AVAILABLE

PLUNGER ASM. Substituted by 3130539

SPRING

HOLDER,GUIDE

CAP

E-RING

PACKING

SEAL

SEAL

Screw

VALVE,THROTTLE (120)

ADJUSTER

Spring

Washer

O-Ring

JET-PILOT Substituted by 3130624 (#40)

VALVE-NEEDLE (1.5)

O-RING

O-RING Substituted by 3130929

COVER

SCREW

SPRING,THROTTLE ADJ.

ASM-CABLE ADJUSTER

WASHER

CLIP

SCREW-GUIDE Substituted by 3130321

O RING

JET-MAIN(#155) Substituted by 3130571 (#155)

RING

SCREW

FLOAT BODY ASSM.

SEAL

ASM-FLOAT Substituted by 3130921
