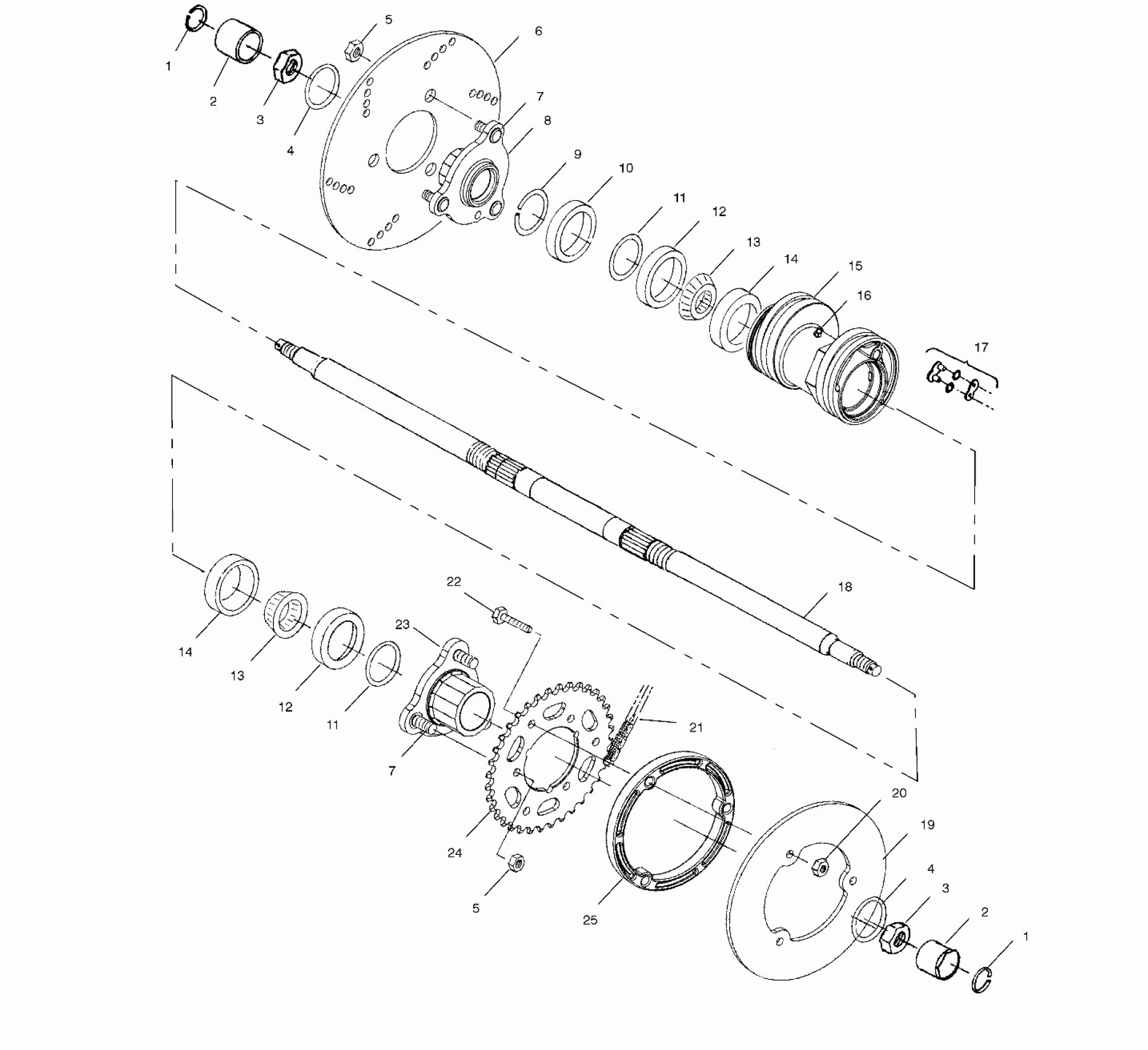

Polaris SCRAMBLER 500 2X4 - A01BA50AB REAR HOUSING - A01BA50AA (4963716371C003) Diagram

#

Description
Price

1

RING,RETAINING

7710472

$5.59

1

RING,RETAINING

7710472

$5.59

2

EXTRUSION,RETAINER,NUT

5510313

$54.99

2

EXTRUSION,RETAINER,NUT

5510313

$54.99

3

NUT,JAM

7547031

$27.99

3

NUT,JAM

7547031

$27.99

4

SEAL,FOAM

5411555

$13.59

4

SEAL,FOAM

5411555

$13.59

5

NUT-LOCK(10)

7542439

$1.49

5

NUT-LOCK(10)

7542439

$1.49

6

DISC,BRK,7.00 OD,.188 THK

5243678

Unavailable

7

STUD(10)

7515513

$1.49

7

STUD(10)

7515513

$1.49

8

HUB ASM,BRK.DISC,LOCKING (Incl. 7)

1520259

Unavailable

9

RING, SNAP(10)

7710405

$4.79

10

SPACER,AXLE

5010462

$27.99

11

O RING

5410889

Unavailable

11

O RING

5410889

Unavailable

12

SEAL,LIP

3610070

$15.99

12

SEAL,LIP

3610070

$15.99

13

BEARING,CONE,TAPERED

3554518

$39.99

13

BEARING,CONE,TAPERED

3554518

$39.99

14

BEARING,CUP,TAPERED

3554517

$15.99

14

BEARING,CUP,TAPERED

3554517

$15.99

15

HOUSING-AXLE,REAR(MACH)

5132098

$115.99

16

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

17

LINK,CONNECT,520 ORD

3225027

Unavailable

18

AXLE,REAR,HYBRID

5020944

Unavailable

19

GUARD,38T SPKT,BLK.ALUM.

5211585-067

Unavailable

20

NUT

7547108

$4.79

21

CHAIN,76P,520 ORD,O-RING

3221111-076

$121.41

22

BOLT(10)

7512404

$3.99

23

HUB ASM,SPKT,LOCKING (Incl. 7)

1520258

$103.99

24

SPKT,36T,R.AXLE,(ATV)

3222109

$105.59

25

SPACER-SPROCKET GUARD

5630586

Unavailable
