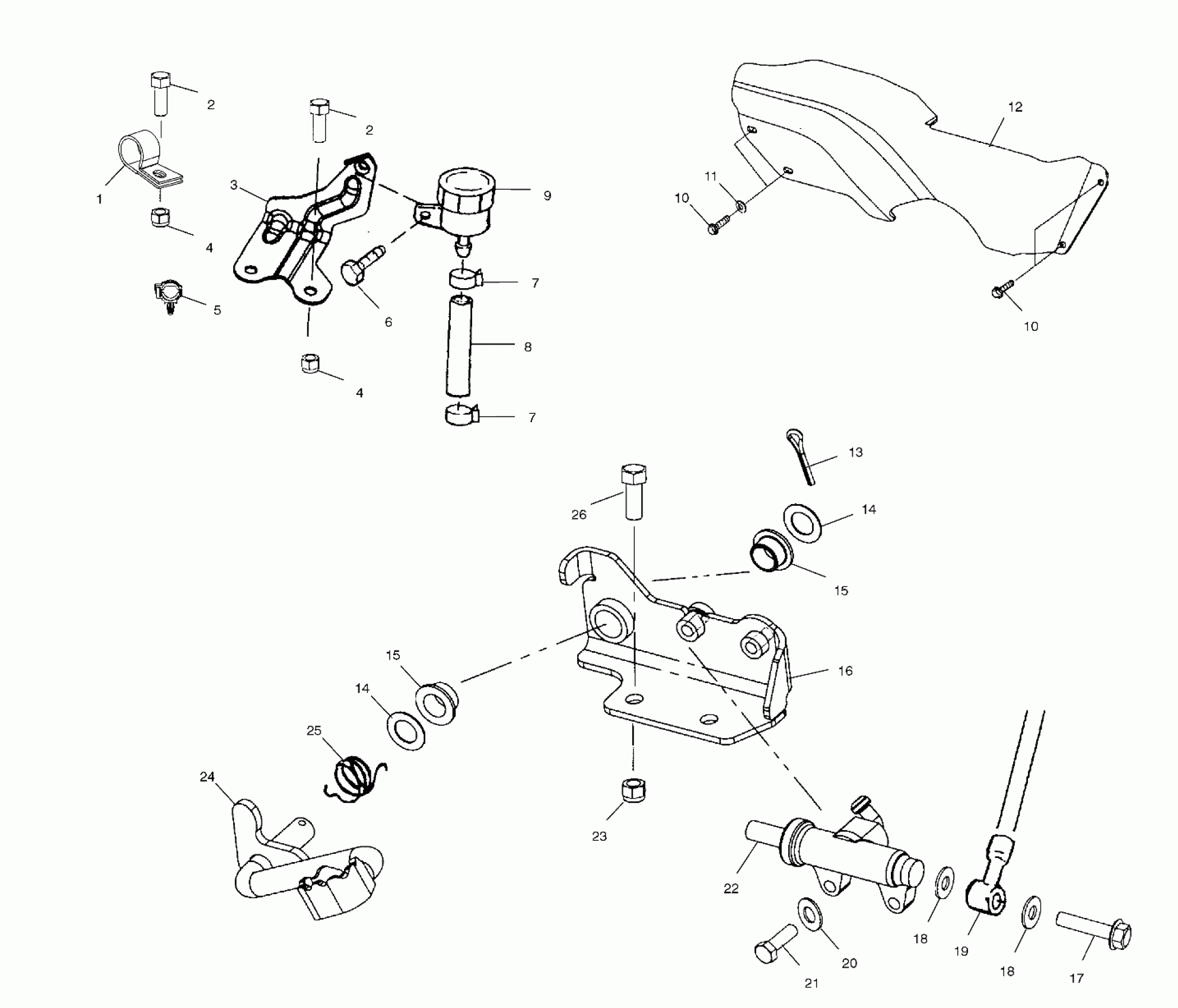

Polaris SCRAMBLER 500 2X4 - A01BA50AB REAR BRAKE MASTER CYLINDER - A01BA50AA (4963716371C001) Diagram

#

Description
Price

1

CLAMP-HOSE,.625 DIA VNL COATED (AA)

7080880

$5.56

2

SCREW(10)

7512113

$3.97

2

SCREW(10)

7512113

$3.97

3

BRKT,RESERVOIR MNT,BLK

5244091-067

$5.71

4

NUT-LOCK(10)

7542122

$1.19

4

NUT-LOCK(10)

7542122

$1.19

5

CLIP,SILENCER,(10)

7670102

$2.38

6

SCREW(10)

7512208

$2.74

7

HOSE CLAMP, RED

7080003

$1.19

7

HOSE CLAMP, RED

7080003

$1.19

8

HOSE,RESERVOIR,1/4ID,4.75 IN

1910404

Unavailable

9

RESERVOIR ASM,R.BRAKE

1930854

$36.41

10

BOLT(10)

7512232

$1.19

10

BOLT(10)

7512232

$1.19

11

WASHER(10)

7558301

$1.19

12

GUARD,PROP SHAFT,SIDE

5433457

$94.44

13

COTTER PIN(10)

7661401

$0.79

14

WASHER(10)

7555919

$4.99

14

WASHER(10)

7555919

$4.99

15

BUSHING-PEDAL PIVOT

5431107

$8.73

15

BUSHING-PEDAL PIVOT

5431107

$8.73

16

MOUNT,BRAKE,CDS,BLK

1910375-067

Unavailable

17

BOLT,BANJO,BRAKE (AA)

1930674

Unavailable

17

BOLT-BANJO, 10MM X 1.25-6G (AB)

1910958

$7.94

18

Seal

5410988

$4.84

18

Seal

5410988

$4.84

19

Line, Foot Brake, Rear (See Rear Caliper Mounting Pg. B14, Ref. 6)

----

Unavailable

20

LOCK WASHER(10)

7552801

$1.59

21

SCREW(10)

7515179

$2.38

22

BRAKE MSTR CYL,FOOT,BANJO

1910311

$174.03

23

NUT-5/16-18 NYLOK-Y

7542324

$0.79

24

BRAKE ROD,CDS,GEN 3,BLK

1910377-067

Unavailable

25

SPRING-TORSION,BRAKE

7041750

$8.89

26

BOLT(10)

7515321

Unavailable
