Description

Price

1

SCREW-SEMS(10)

7511848

$3.99

2

PLATE,VENT,OIL TANK

5211523

$13.99

3

GASKET,OIL RESERVOIR

5830053

$54.99

4

Fitting

7052163

Unavailable

5

HOSE,BRTHR,SLIT,63CM,3/8I.D

5411873

Unavailable

6

PLUG,MAG.12 M.

7051524

$27.99

6

PLUG,MAG.12 M.

7051524

$27.99

7

BOLT

7517102

Unavailable

8

WASHER,COPPER,14MM.

7555896

$1.49

9

TUBE,BANJO RETURN

7052213

Unavailable

10

DIPSTICK

5432289

Unavailable

11

O RING

5410889

Unavailable

12

HOSE, 3/8"ID

5411036

Unavailable

13

CLAMP-HOSE,.875-SS

7080474

$8.40

14

FITTING,HOSE BR

7052106

$6.23

15

SCREEN,OIL FILTER

2530014

$9.91

16

TANK,LH,OIL

5131785

$131.99

17

NUT-LOCK(10)

7542122

$1.49

18

Grommet

5411042

Unavailable

19

GROMMET,MTG,RESERVOIR (10)

5410828

$3.99

20

BUSHING,MTG.

5333204

$26.39

21

WASHER(10)

7558301

$1.49

22

BOLT(10)

7512130

$3.99

23

WASHER

5850135

$3.19

24

SCREW(10)

7515158

$4.79

25

TANK,OIL,RH

5131255

Unavailable

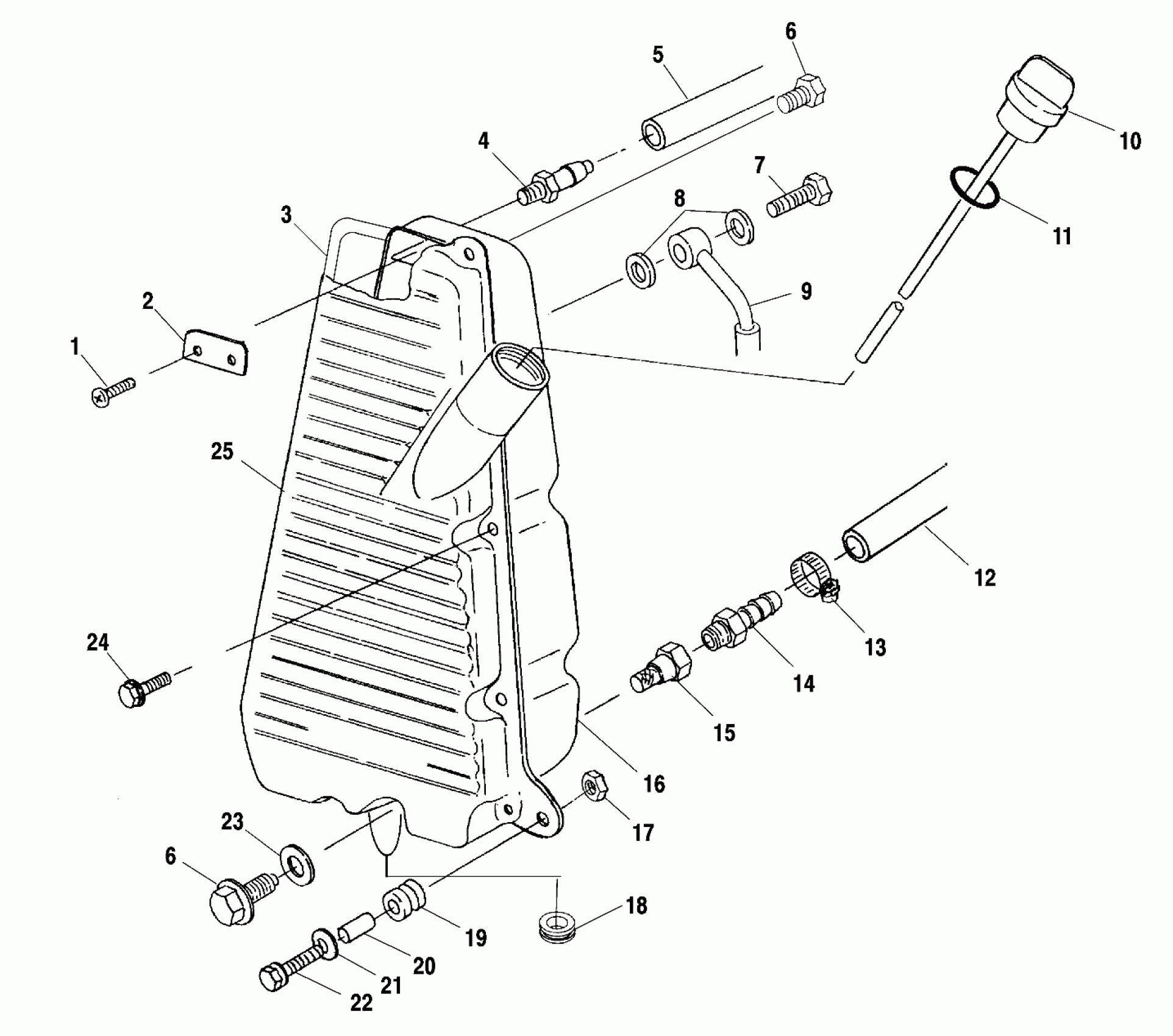

Polaris SCRAMBLER 500 2X4 - A01BA50AB OIL TANK - A01BA50AA (4963716371A010) Diagram

SCREW-SEMS(10)

PLATE,VENT,OIL TANK

GASKET,OIL RESERVOIR

Fitting

HOSE,BRTHR,SLIT,63CM,3/8I.D

PLUG,MAG.12 M.

PLUG,MAG.12 M.

BOLT

WASHER,COPPER,14MM.

TUBE,BANJO RETURN

DIPSTICK

O RING

HOSE, 3/8"ID

CLAMP-HOSE,.875-SS

FITTING,HOSE BR

SCREEN,OIL FILTER

TANK,LH,OIL

NUT-LOCK(10)

Grommet

GROMMET,MTG,RESERVOIR (10)

BUSHING,MTG.

WASHER(10)

BOLT(10)

WASHER

SCREW(10)

TANK,OIL,RH
