INTAKE and EXHAUST - A01BA50AA (4963716371D005)

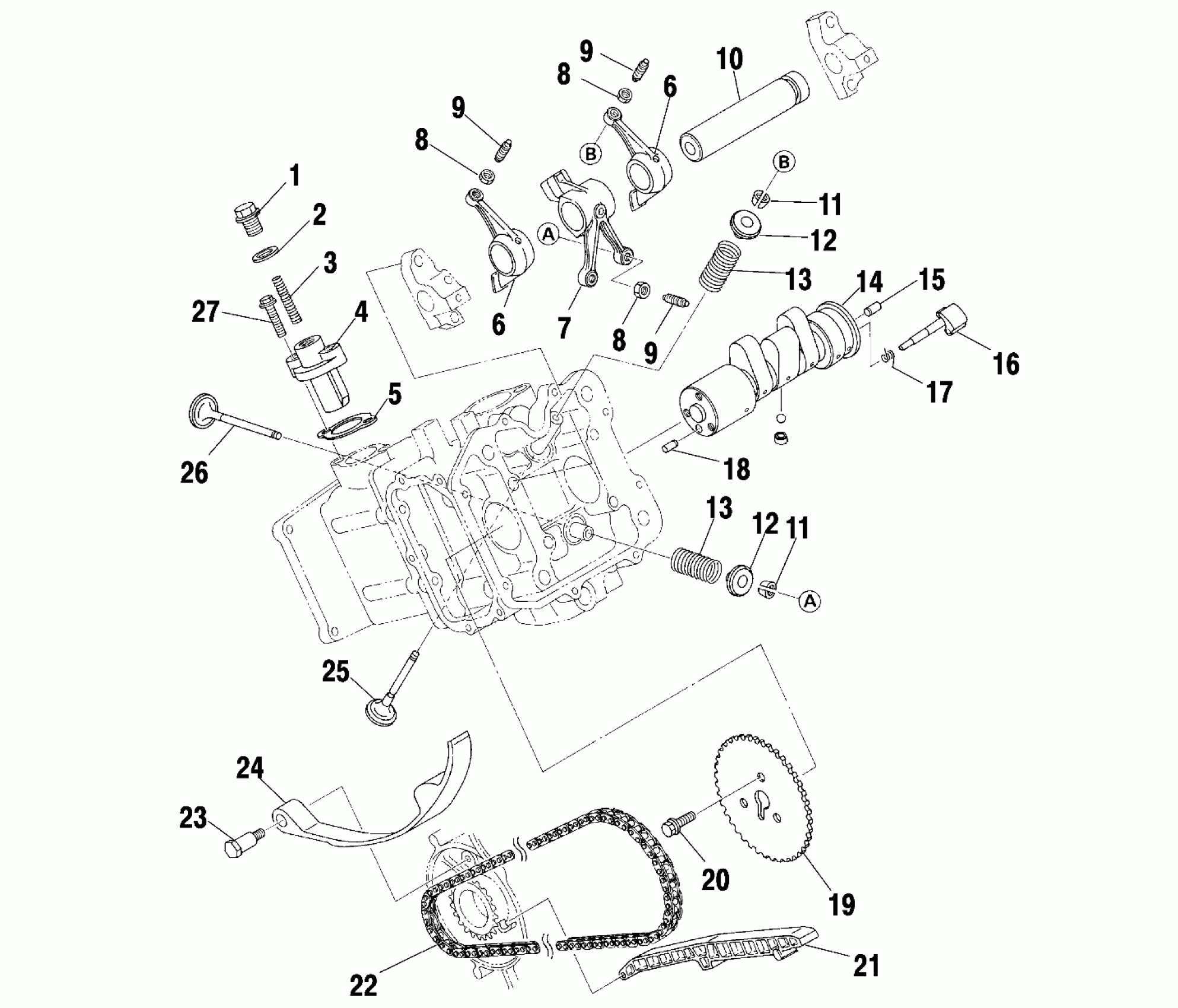

Polaris SCRAMBLER 500 2X4 - A01BA50AB INTAKE and EXHAUST - A01BA50AA (4963716371D005) Diagram
#
Description
Price
1
PLUG
3084845
Unavailable
2
Gasket, Plug
3084920
Unavailable
3
SPRING,TENSIONER
3086839
Unavailable
4
TENSIONER,ASM (Incl. 1-3)
3086813
Unavailable
5
GASKET,TENSIONER
3084922
Unavailable
6
ROCKERARM ASM,INTAKE * (Incl. 8,9)
3084910
$115.99
6
ROCKERARM ASM,INTAKE * (Incl. 8,9)
3084910
$115.99
7
ROCKERARM ASM,EXHAUST * (Incl. 8,9)
3084913
$131.99
8
NUT(10)
3084912
$3.99
8
NUT(10)
3084912
$3.99
8
NUT(10)
3084912
$3.99
9
SCREW, ADJ.
3084911
$9.59
9
SCREW, ADJ.
3084911
$9.59
9
SCREW, ADJ.
3084911
$9.59
10
SHAFT,ROCKER
3084909
$51.99
11
COLLET,VALVE
3084908
$3.99
11
COLLET,VALVE
3084908
$3.99
12
RETAINER,SPRING Substituted by 3086893
3084907
Unavailable
12
RETAINER,SPRING Substituted by 3086893
3084907
Unavailable
13
SPRING,VALVE Substituted by 3086892
3084906
Unavailable
13
SPRING,VALVE Substituted by 3086892
3084906
Unavailable
14
CAMSHAFT (Incl. 15-18)
3085855
$303.99
15
DOWEL-PIN
3086838
$7.19
16
LEVER, RELEASE
3085348
Unavailable
17
SPRING,RETURN
3085076
Unavailable
18
PIN,DOWEL
3084899
$7.19
19
SPROCKET 2
3084914
$75.99
20
BOLT&WASHER ASM.
3081657
$4.79
21
GUIDE,CHAIN
3084916
Unavailable
22
CHAIN, TIMING *
3084915
$95.99
23
BOLT,PIVOT,LEVER
3084924
Unavailable
24
LEVER
3084917
$91.99
25
VALVE,INTAKE
3085349
$63.99
26
VALVE,EXHAUST Substituted by 3085412
3084905
Unavailable
27
BOLT, FLANGE
3084874
Unavailable
