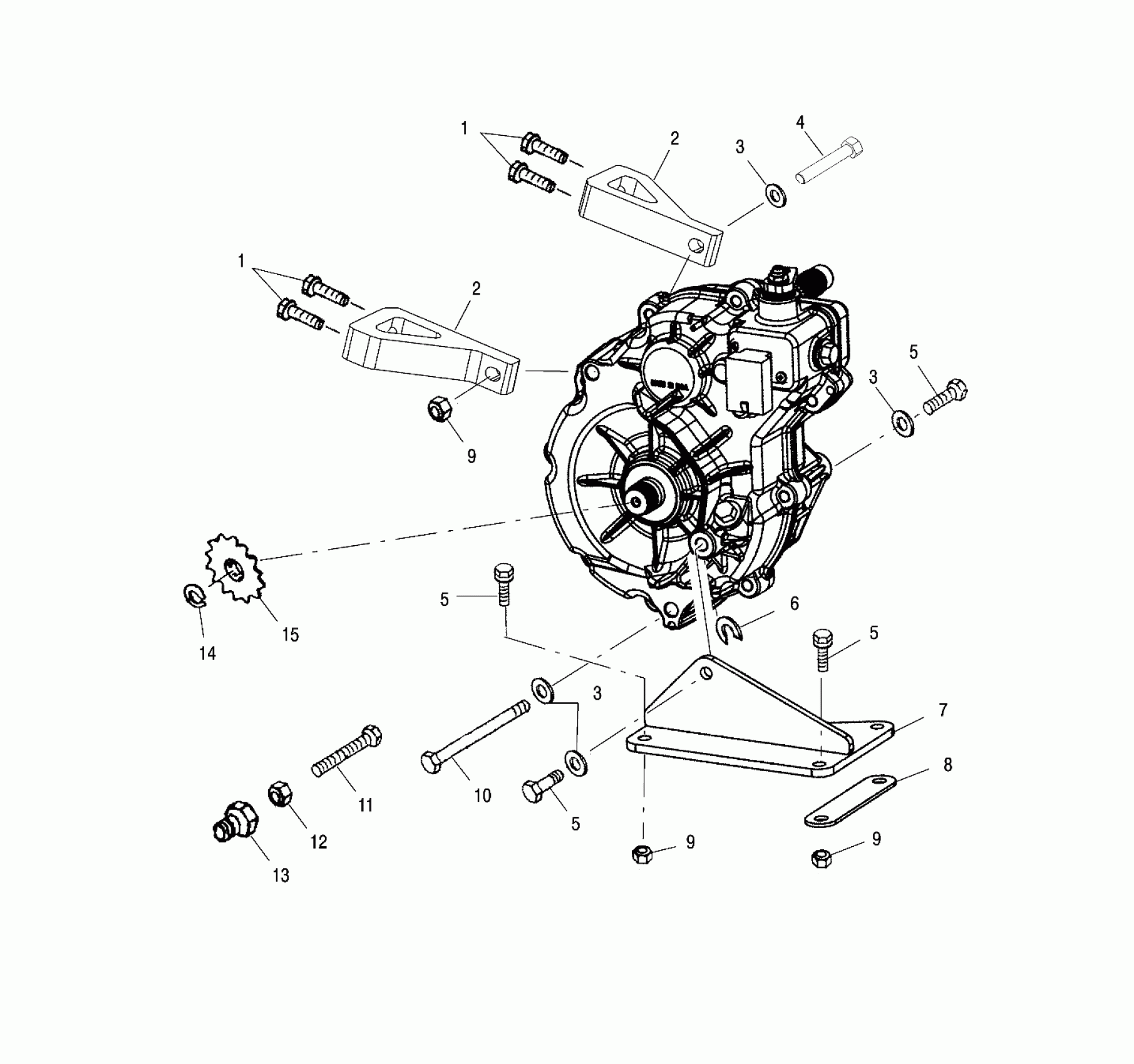

Polaris SCRAMBLER 500 2X4 - A01BA50AB GEARCASE MOUNTING - A01BA50AA (4963716371B013) Diagram

#

Description
Price

1

SCREW

7517632

$5.56

1

SCREW

7517632

$5.56

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.71

2

MOUNT-TRANSMISSION,REAR,MACH

5132046

$35.71

3

WASHER(10)

7555806

$0.79

3

WASHER(10)

7555806

$0.79

3

WASHER(10)

7555806

$0.79

4

Screw

7517642

$7.94

5

SCREW(10)

7512492

$1.19

5

SCREW(10)

7512492

$1.19

5

SCREW(10)

7512492

$1.19

5

SCREW(10)

7512492

$1.19

6

SPACER,(10) (.020)

5210764

Unavailable

6

SHIM,.010,GEARCASE (.010)

5211065

Unavailable

6

SHIM,(.030) (.030)

5211517

Unavailable

7

MOUNT,TRANSMISSION,2X4,BLK

1012886-067

$31.75

8

SPACER-TRANSMISSION MNT,BLK

5243296-067

$4.06

9

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

9

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

9

NUT-3/8-16 FLG LOCK-Y

7547089

$4.76

10

SCREW

7517646

$7.14

11

Screw

7517631

$5.56

12

NUT(10)

7542440

$1.59

13

Plug, Drain (See Gearcase Pg. C10, Ref. 36)

----

Unavailable

14

RING,SNAP(10)

7710434

$3.97

15

SPKT, 12T

3221044

$44.51
