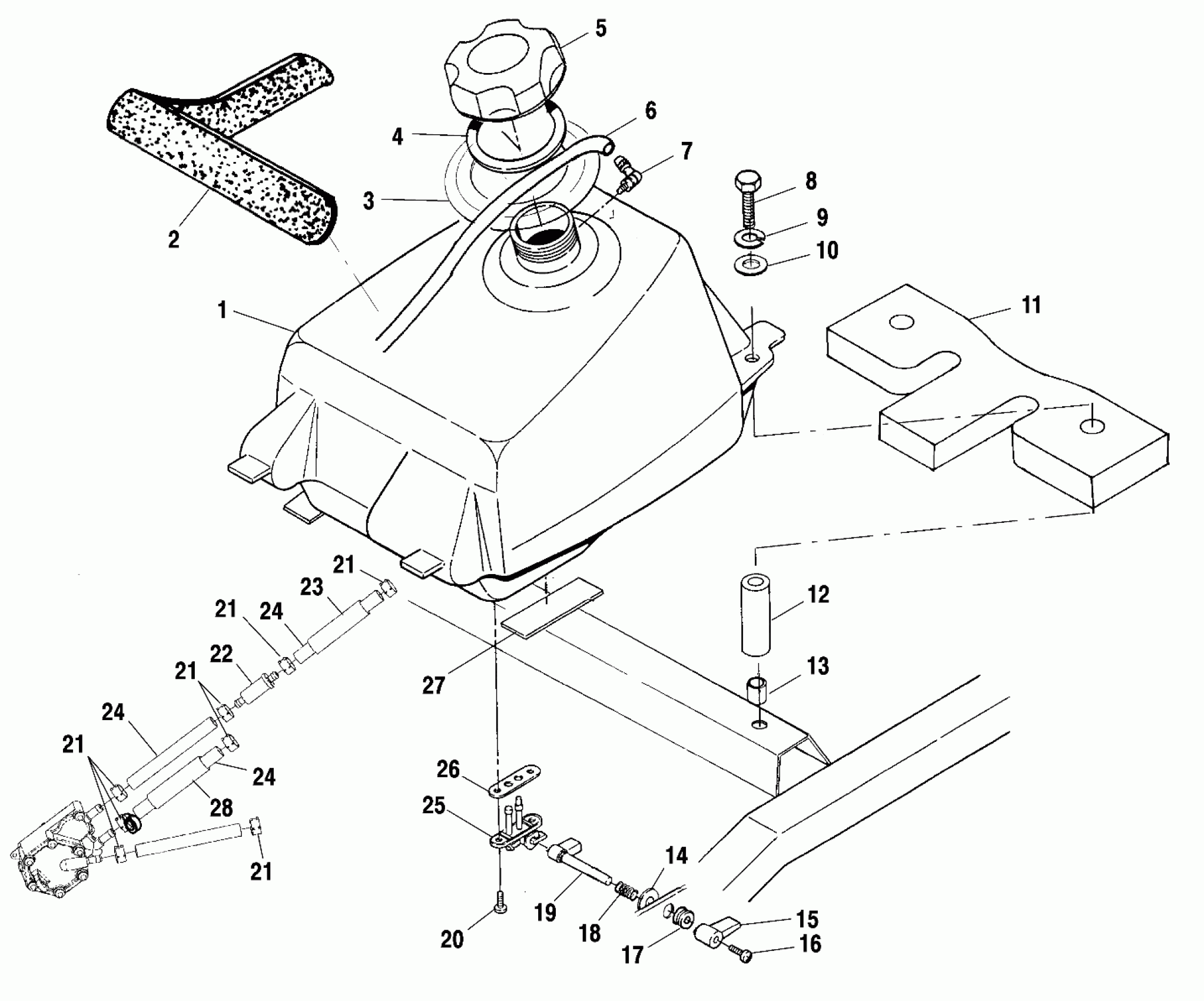

Polaris SCRAMBLER 500 2X4 - A01BA50AB FUEL TANK - A01BA50AA (4963716371A013) Diagram

#

Description
Price

1

FUEL TANK W/ VALVE [Item NotAvailable] (Incl. 7,20,25,26)(AB)

2520241

Unavailable

1

TANK,FUEL

5432879

Unavailable

1

TANK ASM,FUEL (Incl. 7,20,25,26)(AA)

2511342

Unavailable

2

SEAL,FOAM

5811527

Unavailable

3

GROMMET,FUELTANK

5410842

Unavailable

4

GASKET,GAS CAP

5812123

$5.65

5

CAP,GAS TANK

5433687

$20.22

6

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

7

Vent, Tank

5431053

$24.27

8

BOLT(10)

7512249

Unavailable

9

LOCK WASHER(10)

7552801

$1.59

10

WASHER, FLAT(10)

7555859

$1.19

11

SEAL,FOAM

5811526

Unavailable

12

Spacer

5332457

Unavailable

13

NUTSERT,HEX

7547067

$4.28

14

WASHER(10)

7555726

$1.59

15

Lever, Fuel

5431021

$4.84

16

SCREW(10)

7511840

Unavailable

17

Grommet

5432291

$2.38

18

SPRING,LEVER,COMPRESS.

7041209

$8.08

19

EXT.,FUEL LEVER

5431391

$7.27

20

SCREW(10)

7515136

$1.19

21

HOSE CLAMP, RED

7080003

$1.19

21

HOSE CLAMP, RED

7080003

$1.19

21

HOSE CLAMP, RED

7080003

$1.19

21

HOSE CLAMP, RED

7080003

$1.19

21

HOSE CLAMP, RED

7080003

$1.19

22

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46

23

SHEATH-FOIL LAMINATED,5/8X27CM Substituted by 8450080-65 (AA)

8450080-27

$64.75

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$72.84

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$72.84

24

FUEL LINE,1/4 ID(600 CM.)

8450040-600

$72.84

25

VALVE ASM, FUEL (AB)

7051006

$56.65

25

VALVE,FUEL,MAGNUM (AA)

7052190

$48.56

26

Gasket, Fuel Valve

5810859

$6.46

27

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

28

SHEATH/FOIL,LAM,58CM. Substituted by 8450080-65 (AA)

8450080-58

$64.75

28

SHEATH-FOIL,LAMINATED,5-8X38CM Substituted by 8450080-65 (AB)

8450080-38

$64.75
