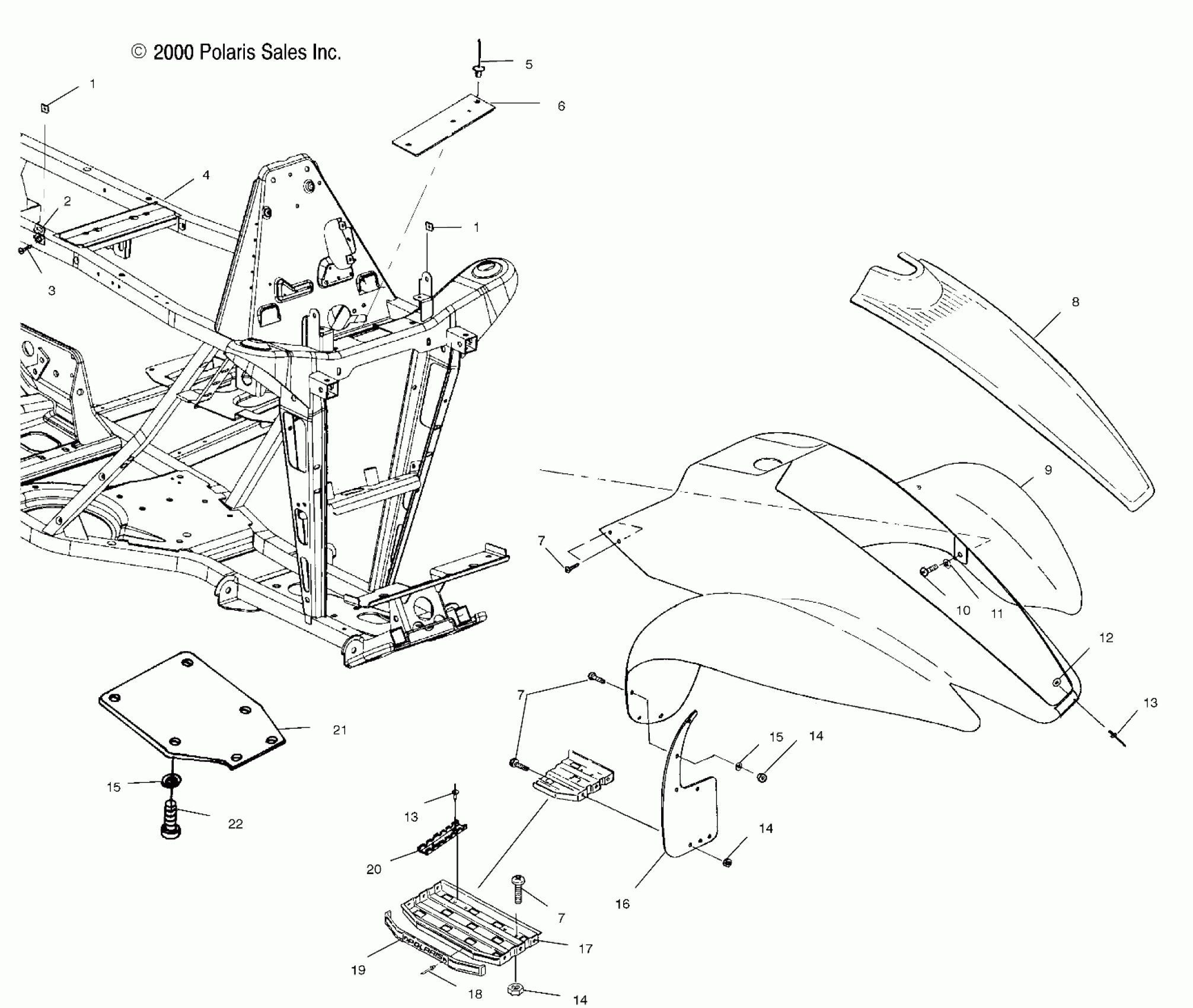

Polaris SCRAMBLER 500 2X4 - A01BA50AB FRONT CAB - A01BA50AA (4963716371A003) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

BRKT-CAB MOUNT,GEN III,LH,BLK

5244482-067

$3.81

2

BRKT-CAB MOUNT,GEN III,RH,BLK

5244483-067

$45.24

3

SCREW,(10)

7517386

$1.49

4

FRAME,MAIN,SCR 500,BLK (AA)

1013037-067

Unavailable

4

FRAME,MAIN,SCR 500,BLK (AB)

1013384-067

Unavailable

5

RIVET,3/16X.402(50) (AA)

7621432

$1.49

6

STRAP,MTG,FUELPUMP (AA)

5211547-067

$2.02

7

BOLT, BLACK(10)

7512282

$1.49

7

BOLT, BLACK(10)

7512282

$1.49

7

BOLT, BLACK(10)

7512282

$1.49

8

COVER-FRONT,SCR 500,BLAZINGRED

5432553-288

Unavailable

9

CAB,FRONT,SVC,BLAZING RED Substituted by 2632424-288 (w/Warning Decals)(If built before 11/13/00)

2631988-288

Unavailable

9

ASM-CAB,FR,GENIII,BLAZING RED (w/Warning Decals)(If built after 11/13/00)

2632424-288

Unavailable

10

SCR-1/4-20X3/4-TR/TX/TAP-M(10)

7517916

$6.39

11

WASHER

7558301

$1.49

12

WASHER, FLAT(10)

7558201

$5.79

13

RIVET(50)

7621472

$1.49

13

RIVET(50)

7621472

$1.49

14

NUT-LOCK(10)

7542122

$1.49

14

NUT-LOCK(10)

7542122

$1.49

14

NUT-LOCK(10)

7542122

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

15

WASHER, FLAT(10)

7555859

$1.49

16

MUDFLAP,RH,FR.HYBRID

5850150

Unavailable

16

MUDFLAP-FRONT,HYBRID,LH

5811831

Unavailable

17

FOOTPAD,CDS,STEEL,BLK

1013249-067

$63.79

18

RIVET,(50)

7661825

$1.49

19

Trim, Footrest

5431484

Unavailable

20

BRKT,HEEL CLEAT,BLK

5242525-067

$16.47

21

GUARD,ROCK

5432763

$87.99

22

SCREW(10)

7515179

$2.39
