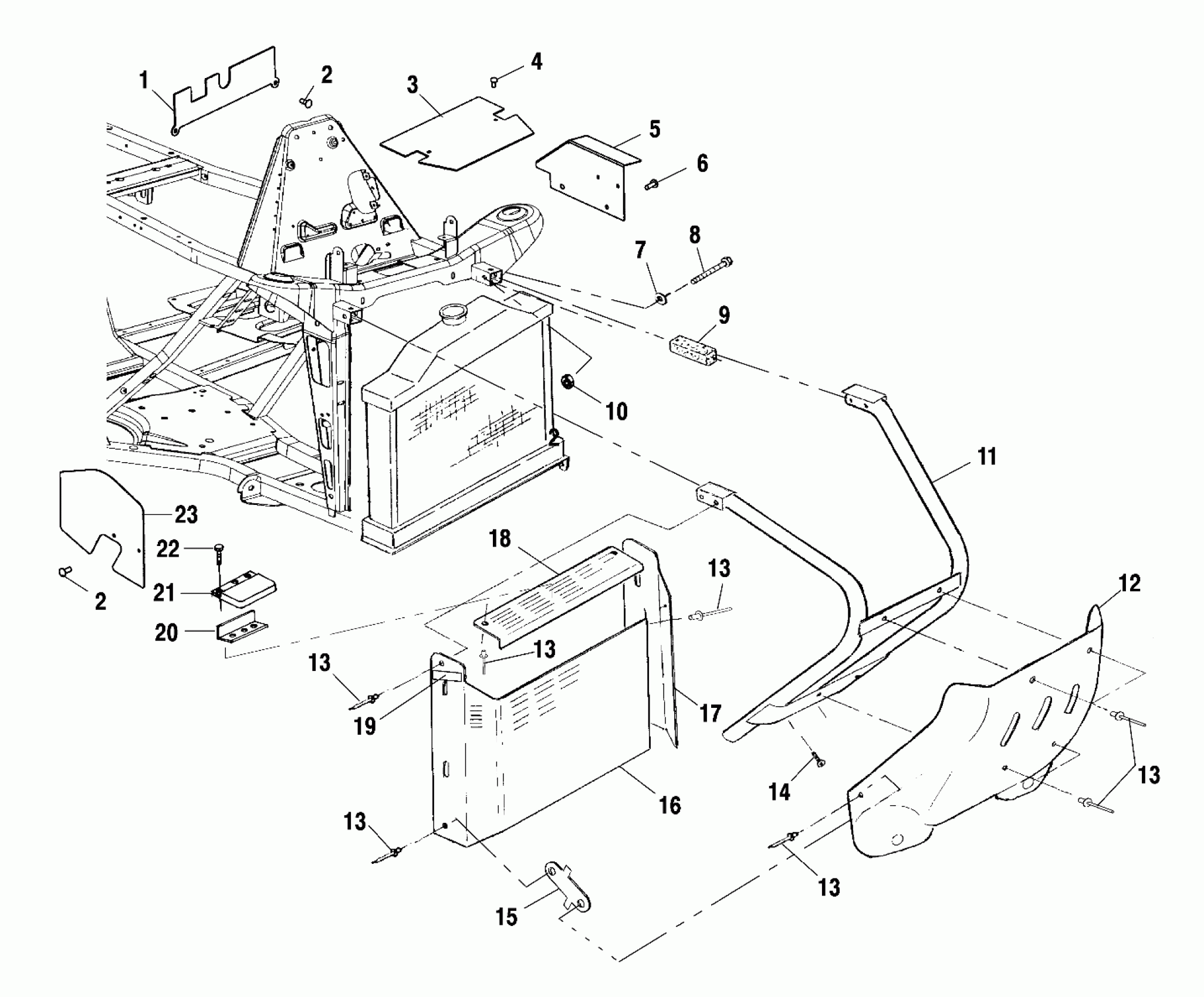

Polaris SCRAMBLER 500 2X4 - A01BA50AB FRONT BUMPER and SHIELDS - A01BA50AA (4963716371A005) Diagram

#

Description
Price

1

SHIELD-SPLASH,GEN3,REAR (AB)

5434162

$12.39

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

2

CLIP-PLASTIC DART, NYLON

7670088

$1.59

3

SHIELD-SPLASH,GEN3,FRONT (AB)

5434161

$12.39

4

SCREW(10)

7522026

$4.79

5

SHIELD-SPLASH,GEN3,LH,BLACK (AB)

5245415-067

$13.10

6

BOLT(10)

7512232

$1.49

7

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

8

BOLT(10)

7512329

$3.99

9

PLUG,FRAME,FOAM

5811675

Unavailable

10

NUT

7547071

$5.59

11

BUMPER,FR,GEN 3,BLK.

1012773-067

$259.99

12

PLATE,SKID,BUMPER,BLK

5432378-070

$92.39

13

RIVET-1/4"MULTIGRIP,.08-.35,B (50)

7661121

Unavailable

13

RIVET-1/4"MULTIGRIP,.08-.35,B (50)

7661121

Unavailable

13

RIVET-1/4"MULTIGRIP,.08-.35,B (50)

7661121

Unavailable

13

RIVET-1/4"MULTIGRIP,.08-.35,B (50)

7661121

Unavailable

13

RIVET-1/4"MULTIGRIP,.08-.35,B (50)

7661121

Unavailable

13

RIVET-1/4"MULTIGRIP,.08-.35,B (50)

7661121

Unavailable

14

SCREW(10)

7515399

$1.49

15

BRKT,RADIATOR SHIELD,BLK

5242694-067

Unavailable

16

SHIELD-RADIATOR SIDE,RH,ST,BLK

5245343-067

Unavailable

17

SHIELD-RADIATOR SIDE,LH,ST,BLK

5245342-067

Unavailable

18

SHIELD-UPPER RADIATOR,ST,BLK

5245344-067

Unavailable

19

REFLECTOR ASM,AMBER

2670134

$9.70

20

HEATSINK RECT.

5131036

Unavailable

21

RECTIFIER,FULL WAVE

4060173

Unavailable

22

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

23

GUARD-SPALSH,GEN 3,RH

5434085

$28.95
