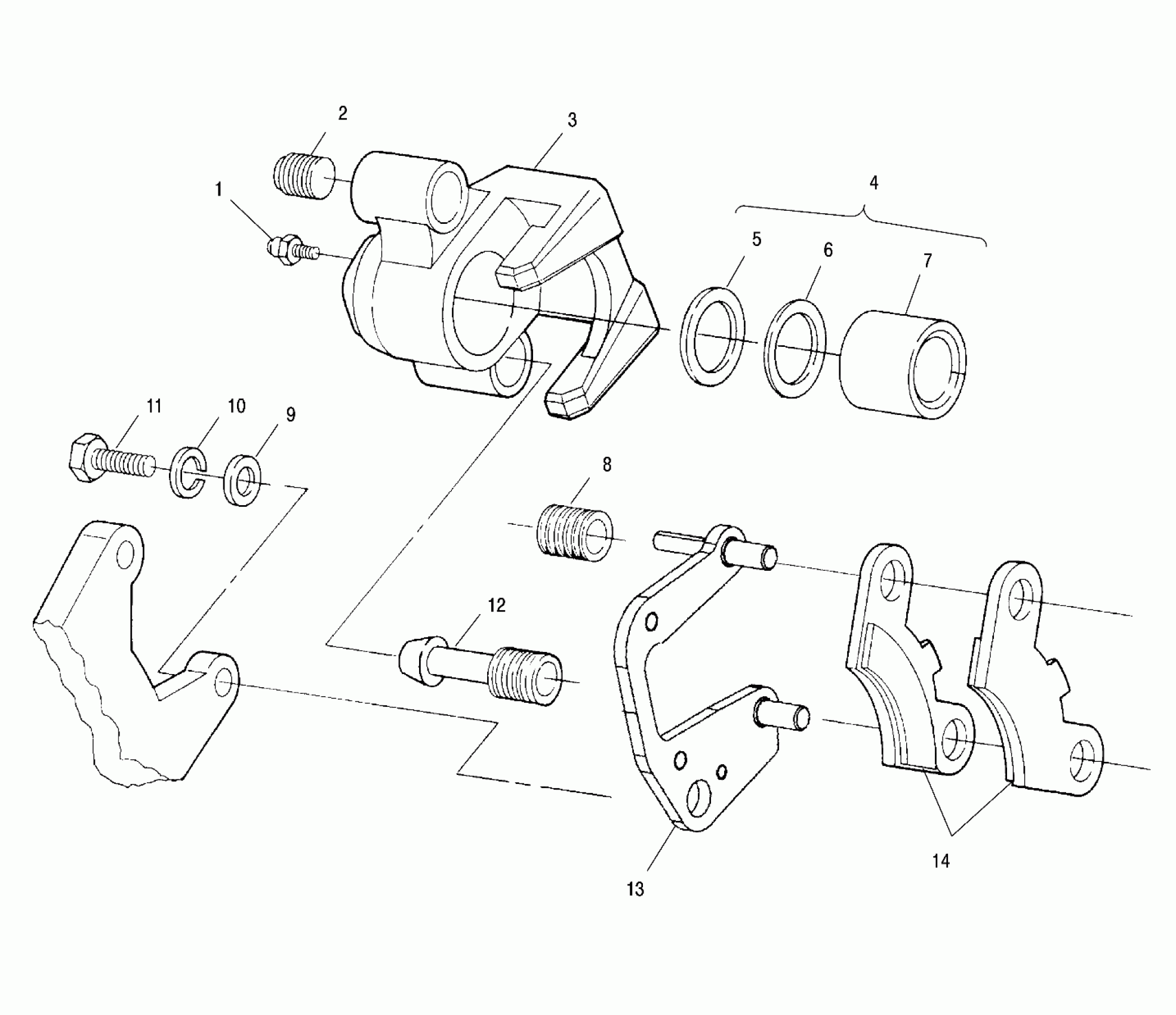

Polaris SCRAMBLER 500 2X4 - A01BA50AB FRONT BRAKE - A01BA50AA (4963716371B003) Diagram

#

Description
Price

-

KIT-BOOT,FRONT BRAKE (Incl. 8,12)

1930642

$11.19

-

CALIPER BRAKE,ASM LH,1.187,7" (Incl. 1-8)(If built after 7/24/00)

1910547

Unavailable

-

CALIPER,BRAKE ASM,RH,1.187,7" (Incl. 1-8)(If built after 7/24/00)

1910548

Unavailable

-

CALIPER ASM.BRAKEFR.LH. (Incl. 1-8)(If built before 7/24/00)

1910444

Unavailable

-

CALIPER,BRAKE,FRONT,RH (Incl. 1-8)(If built before 7/24/00)

1910445

Unavailable

1

SCREW,BLEEDER

7080352

$3.19

2

SETSCREW,SKT.HD.(10)

7515489

$5.59

3

CALIPER-BRAKE,MACH,RH,.187PORT (If built after 7/24/00)

5132961

Unavailable

3

CALIPER-BRAKE,MACH,LH,.187PORT (If built after 7/24/00)

5132960

Unavailable

3

CALIPER,LH,BRAKE,MACH. Substituted by 5131261 (If built before 7/24/00)

5131115

Unavailable

3

CALIPER,RH,BRAKE,MACH. Substituted by 5131262 (If built before 7/24/00)

5131116

Unavailable

4

PISTON & SEAL,KIT (Incl. 5-7)

1930665

$55.99

5

SQUARE RING-MOLDED (.094) (.094)

5410779

$10.51

6

RING,SQUARE,MOLDED (.103 x .134)

5410780

$10.51

7

PISTON-BRAKE,LONG Substituted by 1930665

5132294

$54.04

8

Boot, Pin Seal

5410494

Unavailable

9

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

10

LOCK WASHER(10)

7552901

$1.49

11

SCREW, CAP(10)

7512365

$1.49

12

Boot, Bushing

5410495

Unavailable

13

MOUNT,ASM,CALIPER

1910412

Unavailable

14

BRAKE PADS,AFT,FRONT

2201398

Unavailable
