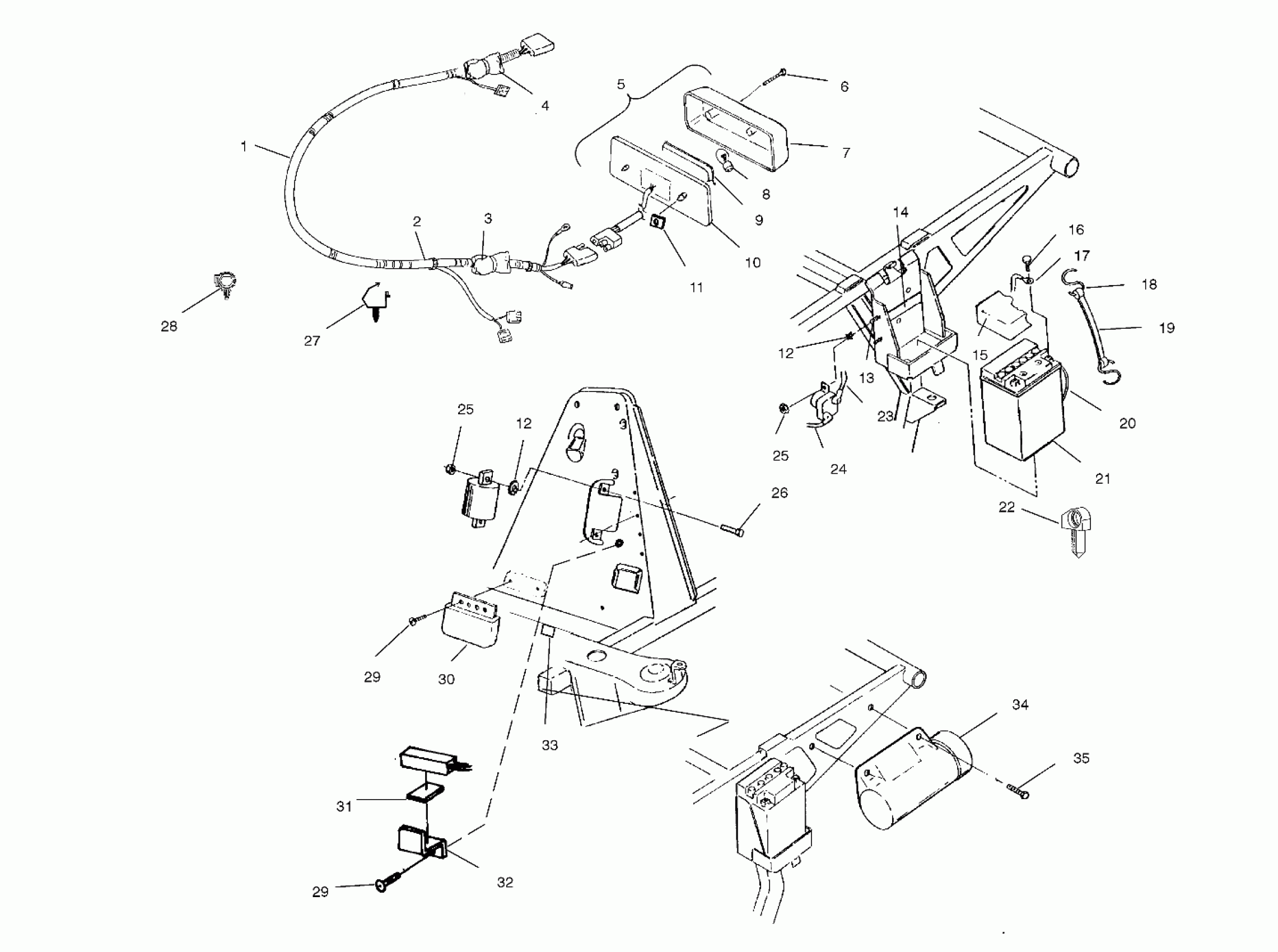

Polaris SCRAMBLER 500 2X4 - A01BA50AB ELECTRICAL/TAILLIGHT - A01BA50AA (4963716371C006) Diagram

#

Description
Price

1

HARNESS-MAIN WIRE,SCR 500 2X4

2460905

$331.99

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CKT.BREAKER,20 AMP.

2434012

$38.89

4

KIT-CIRCUT BREAKER,FAN

2201795

$68.79

5

LIGHT,TAIL/BRAKE (Incl. 6-10)

2432038

$81.07

6

SCREW,TAIL LIGHT

7512088

$2.39

7

LENS,STOP&T/L.

4032085

$36.41

8

BULB,TAILLIGHT

4030043

$6.46

9

GASKET,T/L&STOP/L

4032086

Unavailable

10

BACKING,(STOP&TAIL)

4032087

Unavailable

11

CLIP, RETAINER(10)

7670093

$5.99

12

WASHER(10)

7571602

$4.79

12

WASHER(10)

7571602

$4.79

13

SCREW(10)

7512027

$1.49

14

PAD-BATTERY

5810290

$7.27

15

COVER,BATTERY

5431769

$14.39

16

BOLT,BATT,KIT(SHORT)

2200361

$3.99

17

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

18

HOOK-BATT.H/D(10)

7010032

$1.59

19

STRAP,BATTERY HOLDDOWN

5410424

Unavailable

20

TUBE,BATTERY VENT

5432077

$8.08

21

Battery

4140006

$99.99

22

CLIP,SILENCER,(10)

7670102

$2.39

23

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

24

CABLE,SOL/STARTER

4010093

$47.99

25

NUT(10)

7541925

$1.49

25

NUT(10)

7541925

$1.49

26

SCREW(10)

7512007

$3.99

27

CLIP-ROUTING

7670109

$2.39

28

CLIP,ROSEBUD

4020149

$6.39

29

SCREW,(10)

7512024

$4.79

29

SCREW,(10)

7512024

$4.79

30

LIMITER,RPM,350 HZ,LR44-3

4010137

Unavailable

31

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

32

BRACKET-CDI

5241416

$5.75

33

EDGE TRIM - BLACK Substituted by 5521131

8360012

Unavailable

34

TOOLBOX ASM. (If built before 2/19/01) (If built before 2/19/01)

2620087

Unavailable

34

GASKET,TOOLBOX LID (If built before 2/19/01) (If built before 2/19/01)

5811079

Unavailable

34

Lid (If built after 2/19/01) (If built after 2/19/01)

5433777

Unavailable

34

Gasket (If built after 2/19/01) (If built after 2/19/01)

5812027

$13.99

34

Asm., Tool Box (If built after 2/19/01) (If built after 2/19/01)

2632221

Unavailable

35

SCREW,(10)

7517386

$1.49
