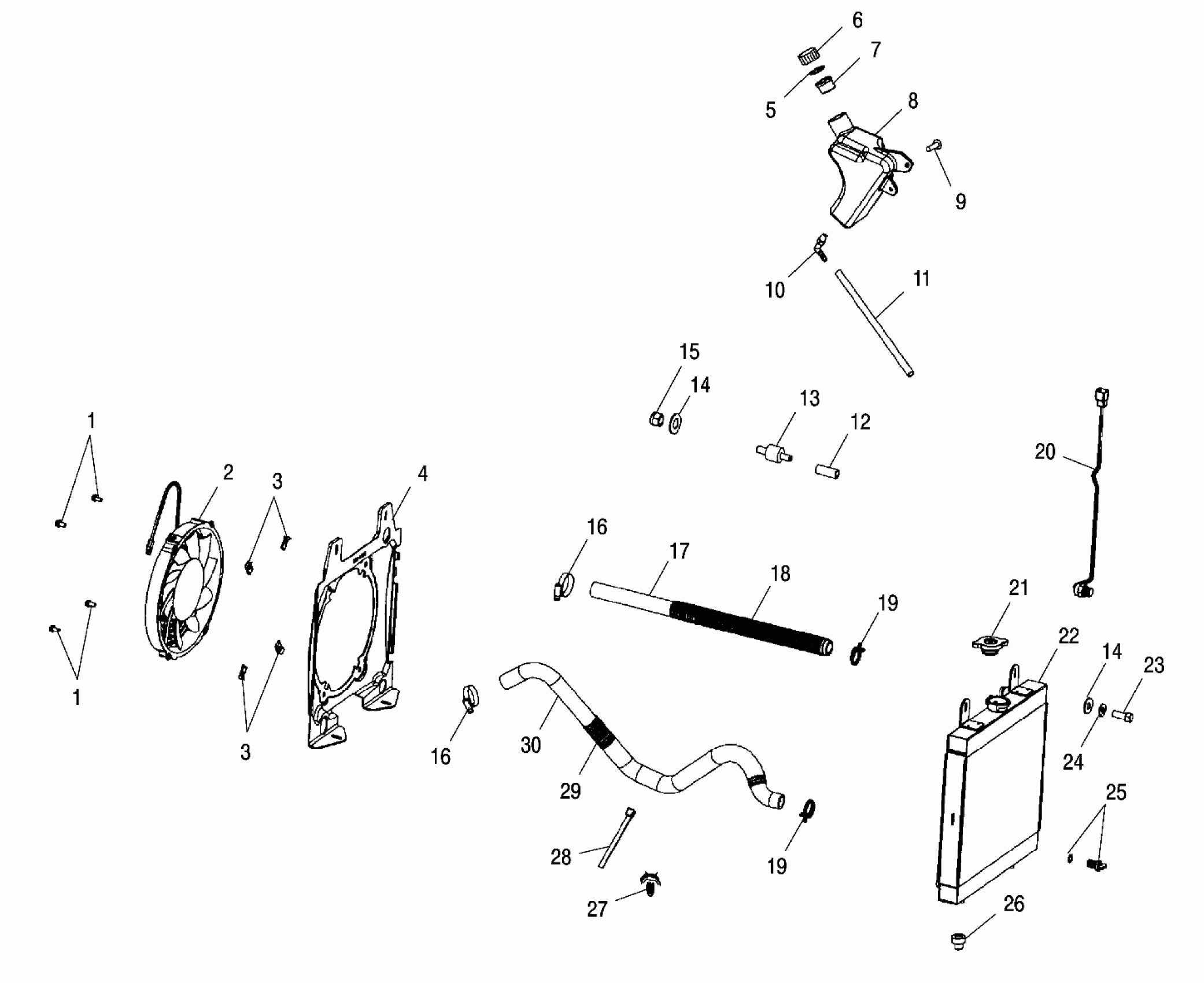

Polaris SCRAMBLER 500 2X4 - A01BA50AB COOLING SYSTEM - A01BA50AB (4963716371A008) Diagram

#

Description
Price

1

Screw

7517659

$3.99

2

FAN&MOTOR,ASM,SPAL

2410123

$180.79

3

CLIP,U,ZY

7670111

Unavailable

3

CLIP,U,ZY

7670111

Unavailable

4

SHROUD-FAN

5434043

$74.39

5

GASKET-OVERFLOW CAP

5810279

$2.41

6

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK,SURGE

5433410

Unavailable

9

SCREW(10)

7512084

$1.49

10

FITTING,90 DEGREE

7052065

$7.19

11

DESC NOT_AVAILABLE

8450003-600

Unavailable

12

SPACER,RADIATOR MNT

5020937

Unavailable

13

Mount, Rubber

3110032

$7.99

14

WASHER(10)

7558301

$1.49

14

WASHER(10)

7558301

$1.49

15

NUT-LOCK(10)

7542122

$1.49

16

CLAMP,HOSE,(10)

7080614

$7.19

16

CLAMP,HOSE,(10)

7080614

$7.19

17

HOSE-UPPER ENGINE

5411985

$66.39

18

GUARD-HOSE,12"

5521511

$7.43

19

CLAMP-ROTO CLIP

7080826

$4.79

19

CLAMP-ROTO CLIP

7080826

$4.79

20

SENSOR-THERMAL/HARNESS

4010161

$103.99

21

CAP-PRESSURE,13 LBS.

1240093

Unavailable

22

Radiator

1240090

Unavailable

23

BOLT(10)

7512240

$3.99

24

LOCK WASHER(10)

7552801

$1.59

25

VALVE-PLASTIC RAD/COOLER DRAIN

7052296

Unavailable

26

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.59

27

MOUNT-CABLE TIE,.25

7080965

$7.19

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

PLASTIC,HOSEGUARD 18"

5521550

Unavailable

30

HOSE-LOWER ENGINE

5411989

Unavailable
