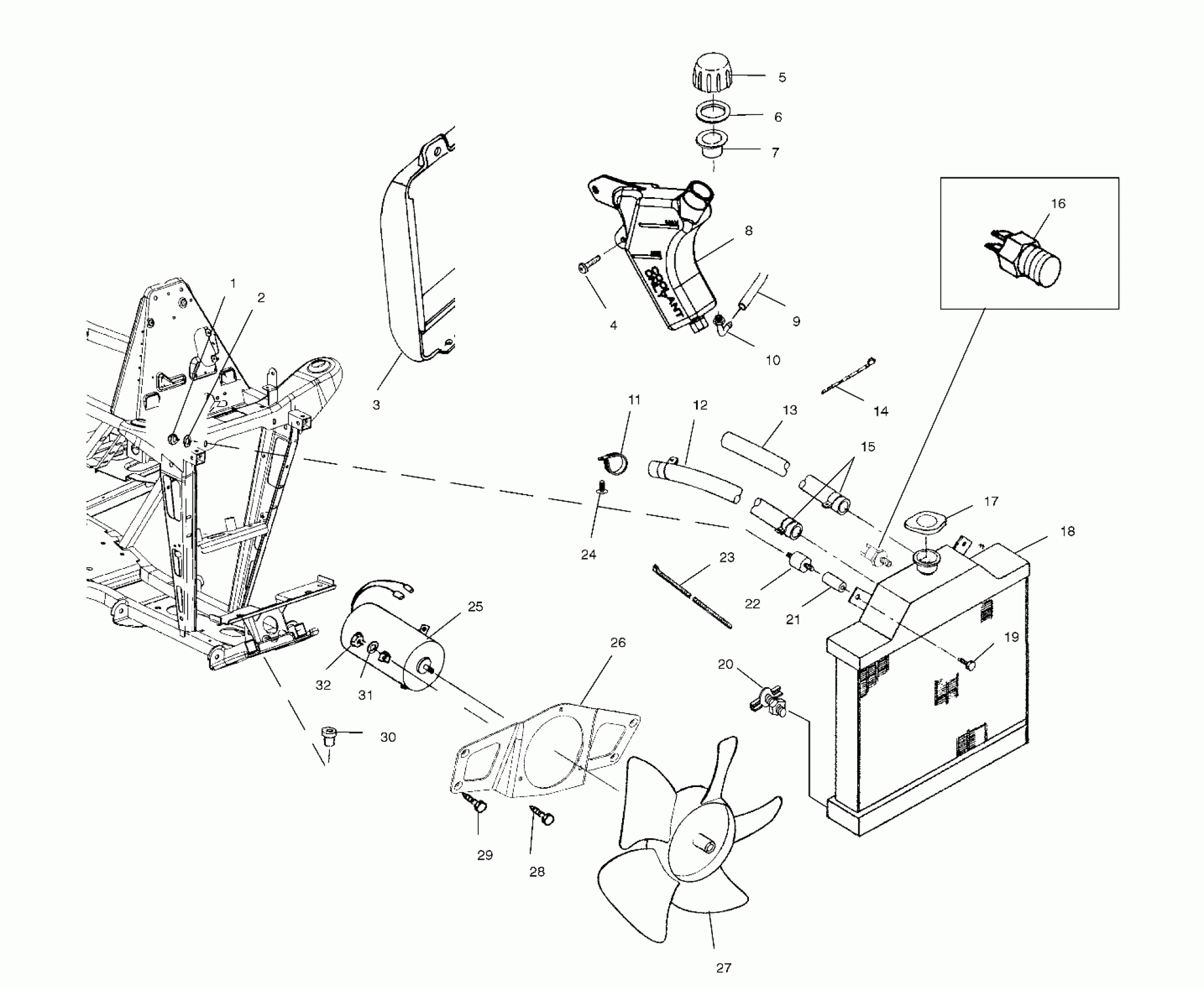

Polaris SCRAMBLER 500 2X4 - A01BA50AB COOLING SYSTEM - A01BA50AA (4963716371A007) Diagram

#

Description
Price

1

NUT-LOCK(10)

7542122

$1.19

2

WASHER(10)

7558301

$1.19

3

SHROUD,FAN,(ATV)

5432593

Unavailable

4

SCREW(10)

7512084

$1.19

5

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

6

GASKET-OVERFLOW CAP

5810279

$2.41

7

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

8

TANK,SURGE

5433410

Unavailable

9

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$89.99

10

FITTING,90 DEGREE

7052065

$7.14

11

CLAMP-P,CUSHIONED,1.25" I.D.

7080869

$11.11

12

HOSE, WATER Substituted by 8450050-305 (Lower)

8450050-63

Unavailable

13

HOSE,CHAFE-PROTECTED (Upper)

5411108

Unavailable

14

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

15

CLAMP,HOSE,(10)

7080614

$7.14

16

SWITCH-THERMAL,4 STROKE,500CC

4010202

$72.84

17

CAP, RADIATOR Substituted by 2511270

2511189

$24.27

18

RADIATOR,"U"FLOW

1240015

Unavailable

19

SCREW(10)

7515133

$3.97

20

VALVE,DRAIN COCK

7052181

Unavailable

21

SPACER,RADIATOR MNT

5020937

Unavailable

22

Mount, Rubber

3110032

Unavailable

23

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

24

CLIP-FIR TREE,DART,6.35MM

7670090

$1.19

25

MOTOR,FAN,LIQ,D-SHAFT,CONN

4170013

Unavailable

26

BRKT.COOL.FAN,BLK

5241355-067

Unavailable

27

BLADE,FAN,NYLON,8"

5242550

Unavailable

28

SCREW

7517475

Unavailable

29

BOLT(10)

7512232

$1.19

30

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

31

WASHER, FLAT(10)

7558201

$5.79

32

Nut

7547004

$4.76
