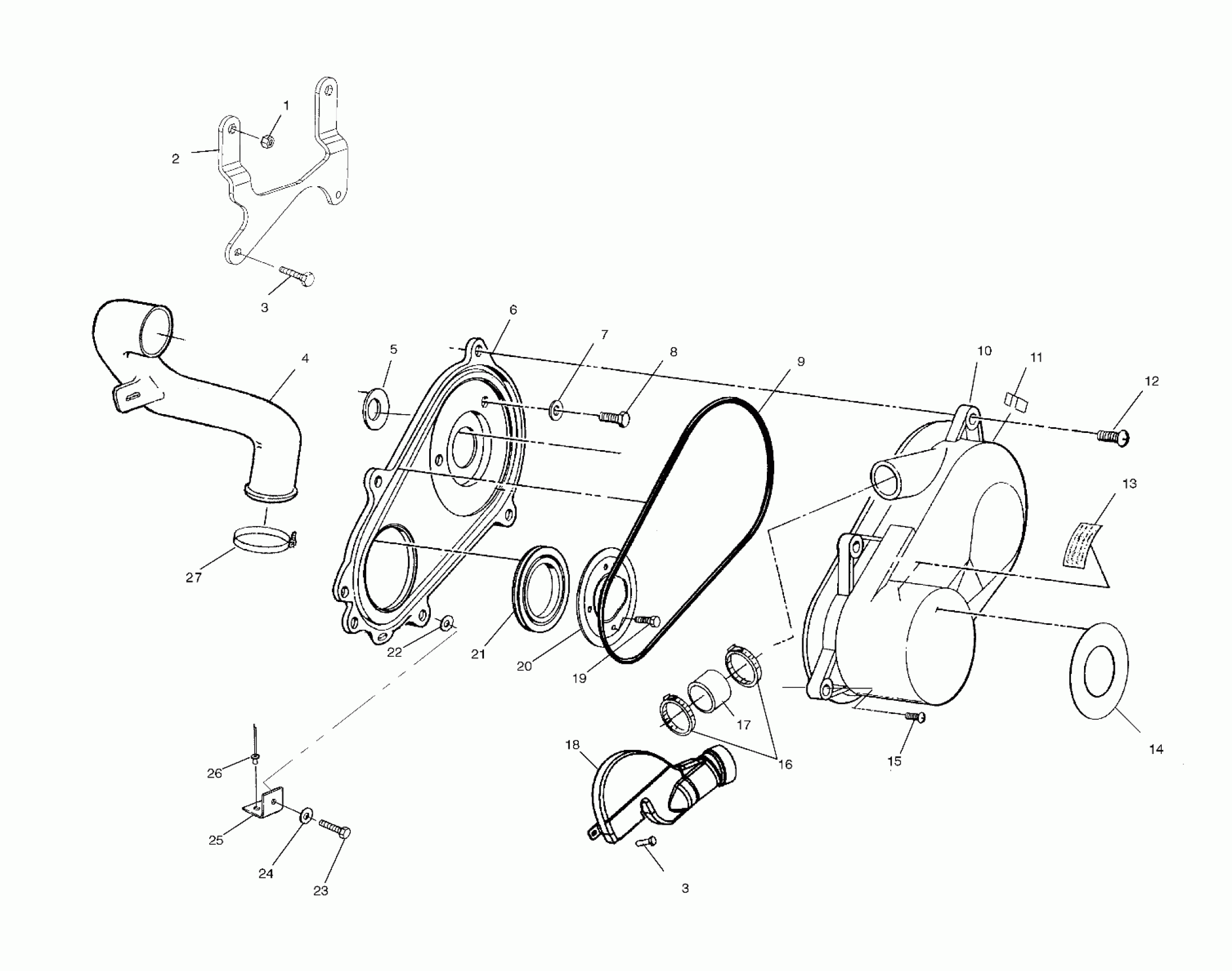

Polaris SCRAMBLER 500 2X4 - A01BA50AB CLUTCH COVER - A01BA50AA (4963716371C005) Diagram

#

Description
Price

1

NUTSERT,HEX

7547067

$6.23

2

BRKT,CLUTCH,LOW,BLK

5242208-067

Unavailable

3

BOLT(10)

7512232

$1.49

3

BOLT(10)

7512232

$1.49

4

DUCT,INLET,DOWN TUBE

5432698

Unavailable

5

SEAL,CVR,CASE 1/2

5411180

$24.27

6

COVER,CLUTCH,INNER,500,SVC,KIT (Incl. 15,23)

2201160

$121.41

7

WASHER-.28X.62-.14(RBR-BK)-Z (If built before 4/03/00)

7555748

$4.79

8

BOLT(10) (If built before 4/03/00)

7512278

Unavailable

9

SEAL,OUTER CLUTCH COVER Substituted by 5521301

5521560

$30.88

10

COVER-CLUTCH,OUTER,HV,ST-801

5433540

$175.99

11

CLIP,CLUTCH COVER(10)

7670051

$2.99

12

SCREW(10)

7512093

$1.49

13

DECAL,WARNING,CLUTCH CVR

7078689

Unavailable

14

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

15

SCREW(10)

7512094

$1.59

16

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

17

BOOT,DUCT,HI-FLOW

5411489

Unavailable

18

DUCT-CLUTCH,OUT,HI-FLOW,13.6

5434160

Unavailable

19

SCREW AND WASHER (See Crankcase Pg. D1, Ref. 6)

-------

Unavailable

20

BRKT,RETAINER SEAL,BLK. Substituted by 5242046-067

5240409-067

Unavailable

21

Seal, Cover Case

5410575

Unavailable

22

WASHER,NYLON

7555932

$2.39

23

Screw

7512098

$1.59

24

WASHER(10)

7555935

$2.39

25

BRKT,CLUTCH COVER,BLK

5242693-067

Unavailable

26

RIVET-3/16-.090-.290

7661637

$1.49

27

CLAMP, NARROW BAND(10)

7080511

$4.79
