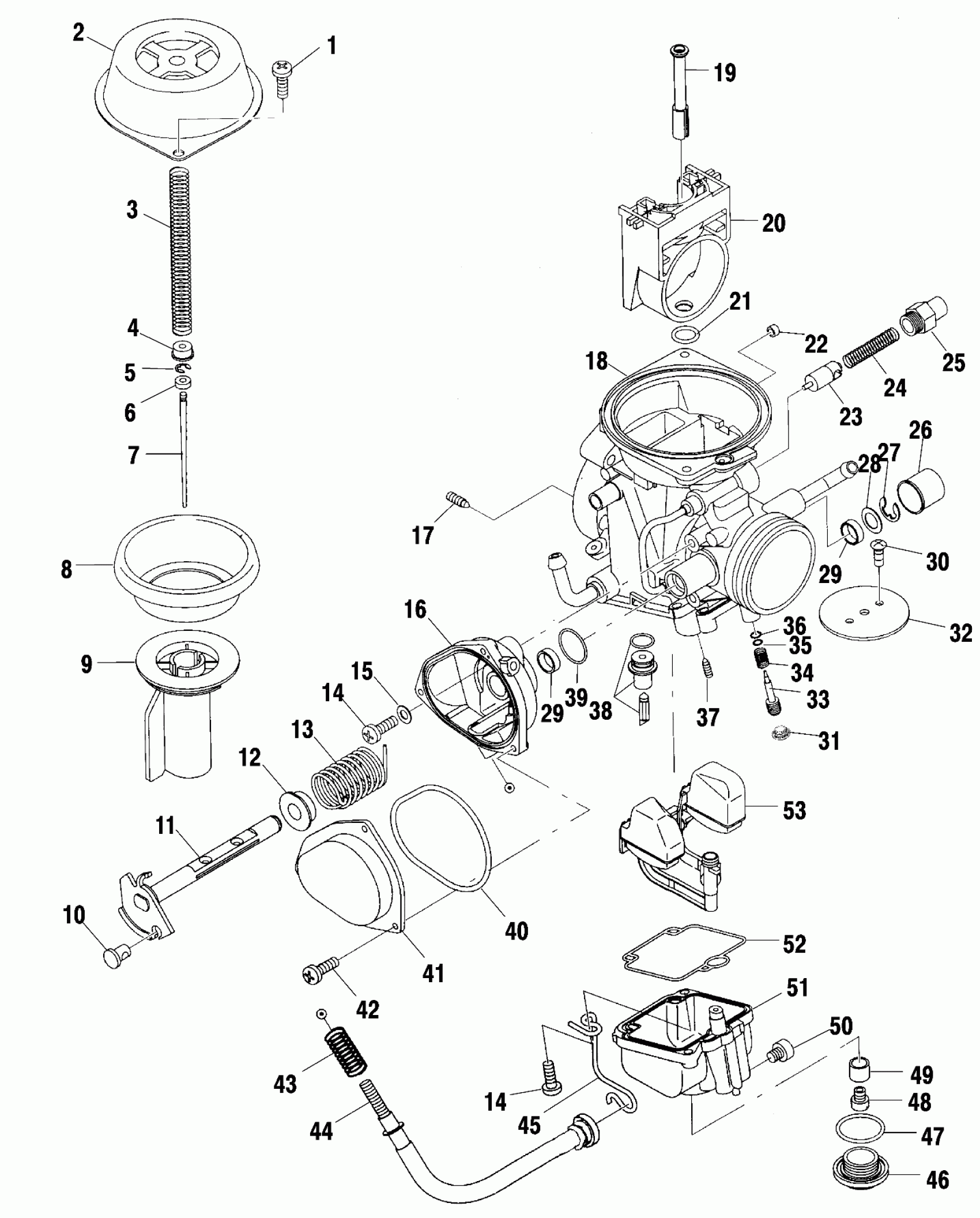

Polaris SCRAMBLER 500 2X4 - A01BA50AB CARBURETOR - A01BA50AA (4963716371D003) Diagram

#

Description
Price

1

Screw

3130821

$7.14

2

COVER,DIAPHRAGM

3130914

$48.56

3

SPRING

3130911

$11.32

4

RING

3130913

$5.65

5

RING,"E"

3130908

$6.46

6

RING

3130915

$5.65

7

NEEDLE,JET

3130918

$44.51

8

DIAPHRAGM

3130910

$68.79

9

VALVE,PISTON

3130912

$71.10

10

GUIDE,CABLE

3130543

$32.37

11

THROTTLE SHAFT ASSM.

3130931

$64.75

12

RING

3130932

$1.99

13

SPRING

3130927

$6.99

14

SCREW

3130933

$2.38

14

SCREW

3130933

$2.38

15

WASHER

3130926

$3.97

16

CASE

3130925

$69.99

17

JET, (PAJ1)

3130619

$8.08

18

CARBURETOR Substituted by 3131307 (Incl. 1-53)

3130903

$622.24

19

NEEDLE JET

3130920

Unavailable

20

BLOCK,JET

3130909

$47.49

21

RING,"O"

3130916

$4.84

22

DESC NOT_AVAILABLE

3131208

Unavailable

23

PLUNGER ASM. Substituted by 3130539

3130593

$40.46

24

SPRING

3130538

$5.65

25

HOLDER,GUIDE

3130199

$28.32

26

CAP

3130519

$10.51

27

E-RING

3130518

$1.60

28

PACKING

----

Unavailable

29

SEAL

3130515

$12.13

29

SEAL

3130515

$12.13

30

Screw

3130906

$3.97

31

PLUG

3130905

$5.11

32

VALVE,THROTTLE (120)

3130907

$54.99

33

ADJUSTER

3130934

$12.99

34

Spring

3130525

$5.65

35

Washer

3130523

$2.38

36

O-Ring

3130522

$5.65

37

JET,PILOT,#40 (#40)

3130624

$28.32

38

VALVE,NEEDLE (1.5)

3130922

$72.84

39

O-RING

3130928

$6.46

40

O-RING

3130929

$14.24

41

COVER

3130930

$36.41

42

SCREW

3130924

$1.59

43

SPRING,THROTTLE ADJ.

3130010

$9.70

44

CABLE ADJUSTER ASSM. Substituted by 3131295

3130938

Unavailable

45

CLIP Substituted by 3131242

3130937

$33.24

46

BOLT,BANJO

3130321

$23.81

47

O RING

3130239

Unavailable

48

MAIN JET,#155 (#155)

3130571

$8.89

49

RING

3130919

Unavailable

50

SCREW

3130935

$6.64

51

FLOAT BODY ASSM.

3130923

$75.54

52

SEAL

3130917

$7.27

53

FLOAT ASM.

3130921

$75.54
