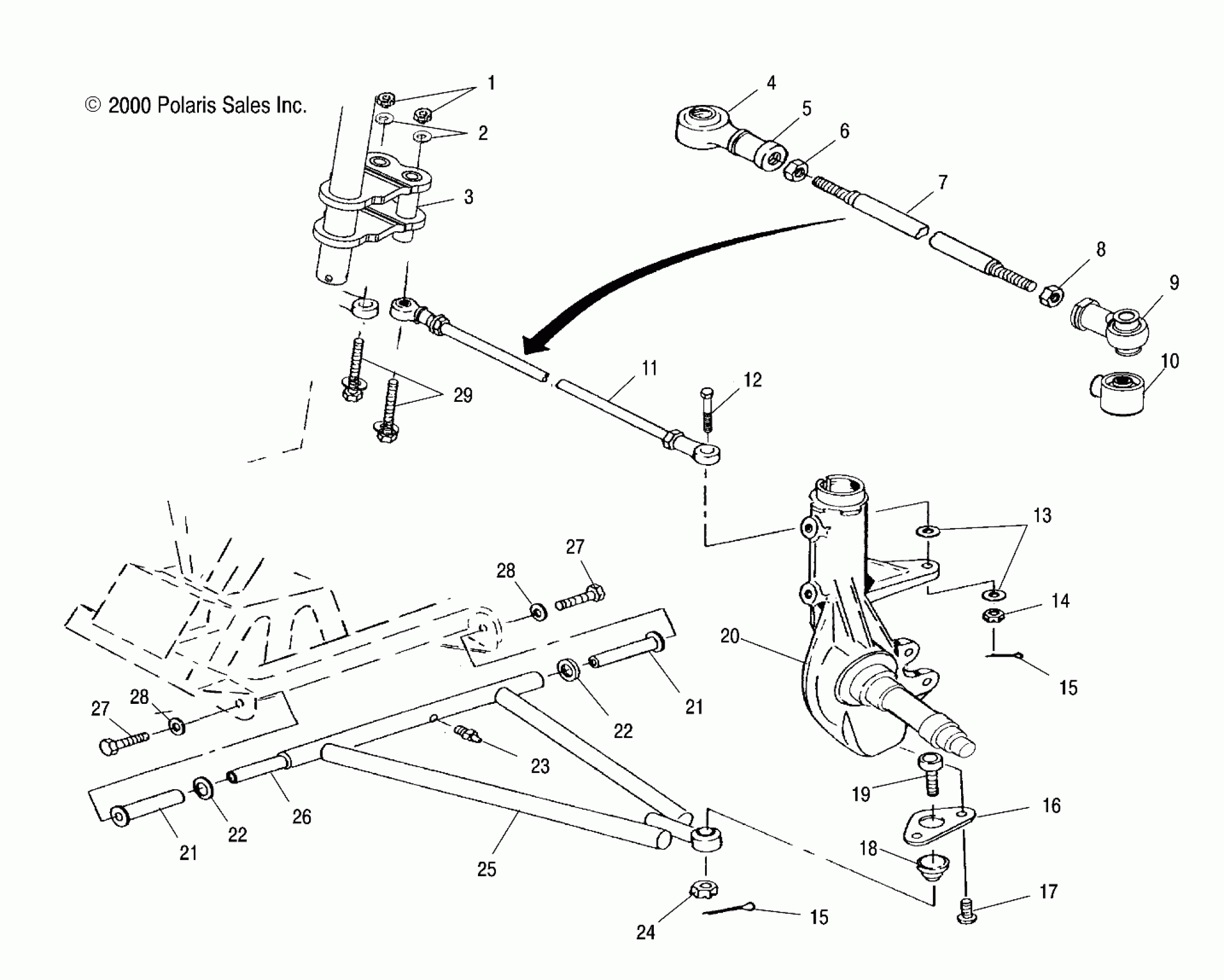

Polaris SCRAMBLER 500 2X4 - A01BA50AB A-ARM/STRUT MOUNTING - A01BA50AA (4963716371B004) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

$3.99

2

WASHER WROUGHT(10)

7558403

$4.79

3

BUSHING

5333367

$6.63

4

SEAL,BOOT,ROD END,1/2 IN

5411291

Unavailable

5

ROD END,RH

7061034

$54.04

6

NUT-JAM(10)

7542711

$2.39

7

ROD,TIE

5020927

$39.99

8

NUT,LH,JAM(10)

7547028

$2.39

9

ROD,END,10MM,1/2-20LH,42 DEG

7061054

Unavailable

10

BOOT,SEAL,ROD END,10MM

5411920

Unavailable

11

TIE,ROD,1/2-20X14.0,ASM.

1820806

Unavailable

12

BOLT-M10X1.25X57 HX WASH HD Substituted by 7517909

7517674

Unavailable

13

Washer

7556099

$1.59

14

NUT, CASTLE(10)

7546904

$4.79

15

PIN COTTER(10)

7661203

$1.49

15

PIN COTTER(10)

7661203

$1.49

16

BRACKET,BALLJOINT

5240717

Unavailable

17

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.49

18

Boot, Rubber

5410548

Unavailable

19

BALL-JOINT,52 DEG,ATV

7080927

$76.89

20

Support, Strut and Spindle (See Strut Pg. B1, Ref. 16)

-------

Unavailable

21

BUSHING,A ARM,LONG

5433066

$5.01

21

BUSHING,A ARM,LONG

5433066

$5.01

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

22

BUSHING,A-ARM SPACER(10)

5020677

$10.39

23

ZERK,FITTING,THREADED(10)

7080433

$1.49

24

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

25

A-FRAME,KIT,LH (1541454)

2201601

Unavailable

25

A-FRAME,KIT,RH (1541455)

2201602

Unavailable

26

Shaft, A-Arm

5020681

Unavailable

27

SCREW(10)

7512492

$1.49

27

SCREW(10)

7512492

$1.49

28

WASHER(10)

7552603

$1.49

28

WASHER(10)

7552603

$1.49

29

BOLT (10) (AA)

7517527

$29.99

29

BOLT-3/8-24X4,HX SEM/Y .86D (AB)

7517930

Unavailable
