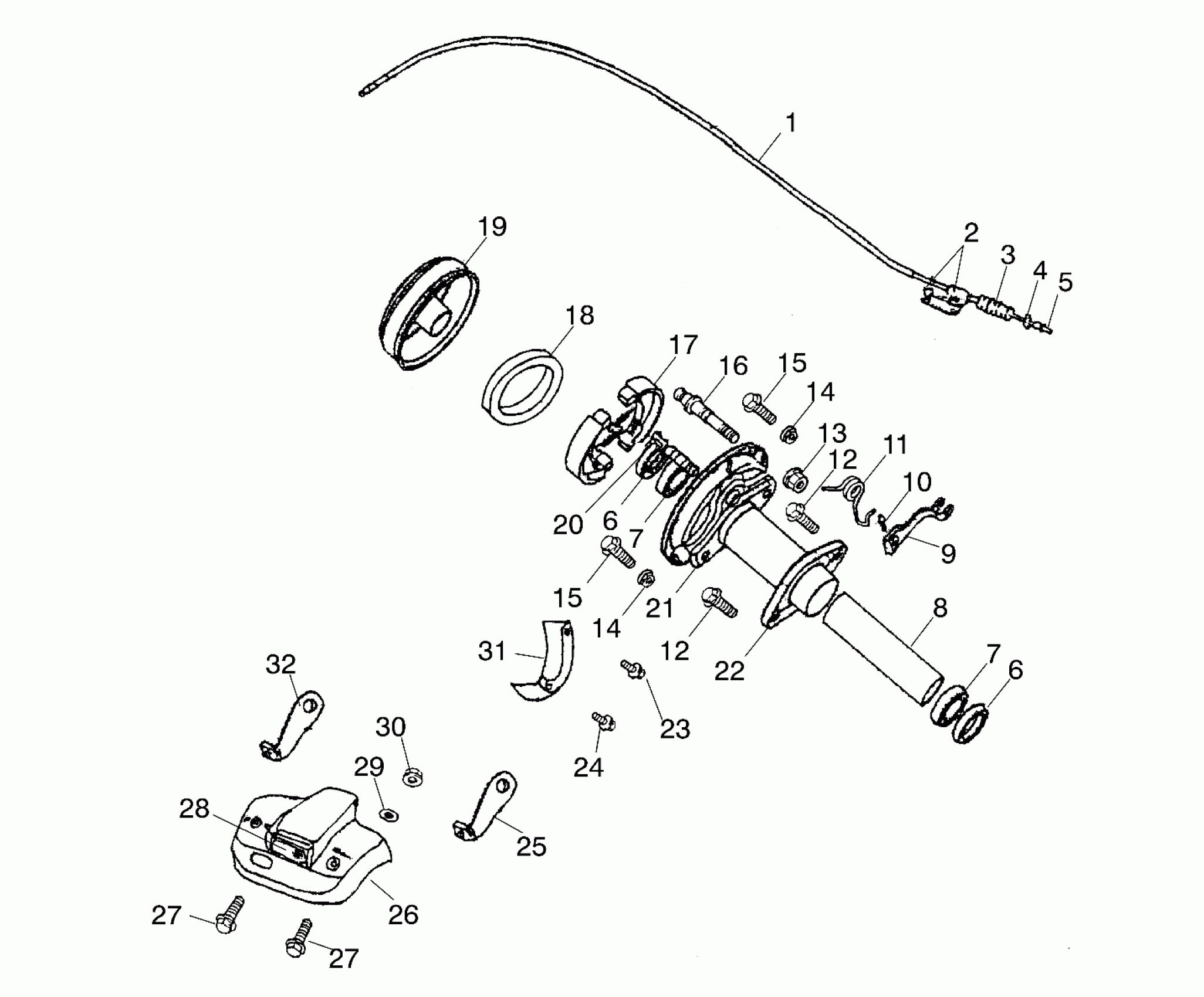

Polaris SCRAMBLER 50 - A02EA05CA REAR BRAKE - A02EA05CA (4970887088B10) Diagram

#

Description
Price

1

Cable, Rear Brake

0450731

Unavailable

2

Bolt, Hex

0450268

$0.79

3

Spring, Cable, Rear Brake

0450435

$4.84

4

Thru-Shaft, Rear Brake

0450437

$3.97

5

Nut, Adjust, Brake

0450436

$5.56

6

Seal, Oil

0450430

$16.17

6

Seal, Oil

0450430

$16.17

7

Bearing

0450429

$47.62

7

Bearing

0450429

$47.62

8

Tube, Spacer

0450428

$40.46

9

Arm, Rear Brake

0450687

Unavailable

10

Bolt, Hex

0450433

$3.97

11

Spring, Arm, Rear Brake

0450453

$4.84

12

Bolt, Hex, Washer Face

0450451

$3.17

12

Bolt, Hex, Washer Face

0450451

$3.17

13

Nut, Lock

0450881

$4.76

14

NUT, FLANGE

0450529

$2.38

14

NUT, FLANGE

0450529

$2.38

15

Bolt, Hex

0450452

$7.14

15

Bolt, Hex

0450452

$7.14

16

Shaft, Fixed, Rear Brake

0450854

$14.56

17

Shoe, Rear Brake

0450434

$33.24

18

Rubber, Protective

0450442

$9.70

19

Drum, Rear Brake

0450441

$128.24

20

Shaft, Cam, Rear Brake

0450431

$32.37

21

Plate, Rear Brake

0450440

$79.99

22

Seat, Fix, Rear Axle

0450427

Unavailable

23

BOLT, HEX

0450325

$4.76

24

BOLT, HEX

0450298

$2.38

25

Plate, Fixed, Rear Cover, RH

0450812

Unavailable

26

Cover, Rear

0450751

$47.49

27

Bolt, Hex

0450340

$3.97

27

Bolt, Hex

0450340

$3.97

28

Reflector, Rear

0450446

$5.71

29

Washer

0450643

Unavailable

30

Nut, Flange

0450447

$3.29

31

Cover, Protective

0450833

$25.40

32

Plate, Fixed, Rear Cover, LH

0450813

Unavailable
