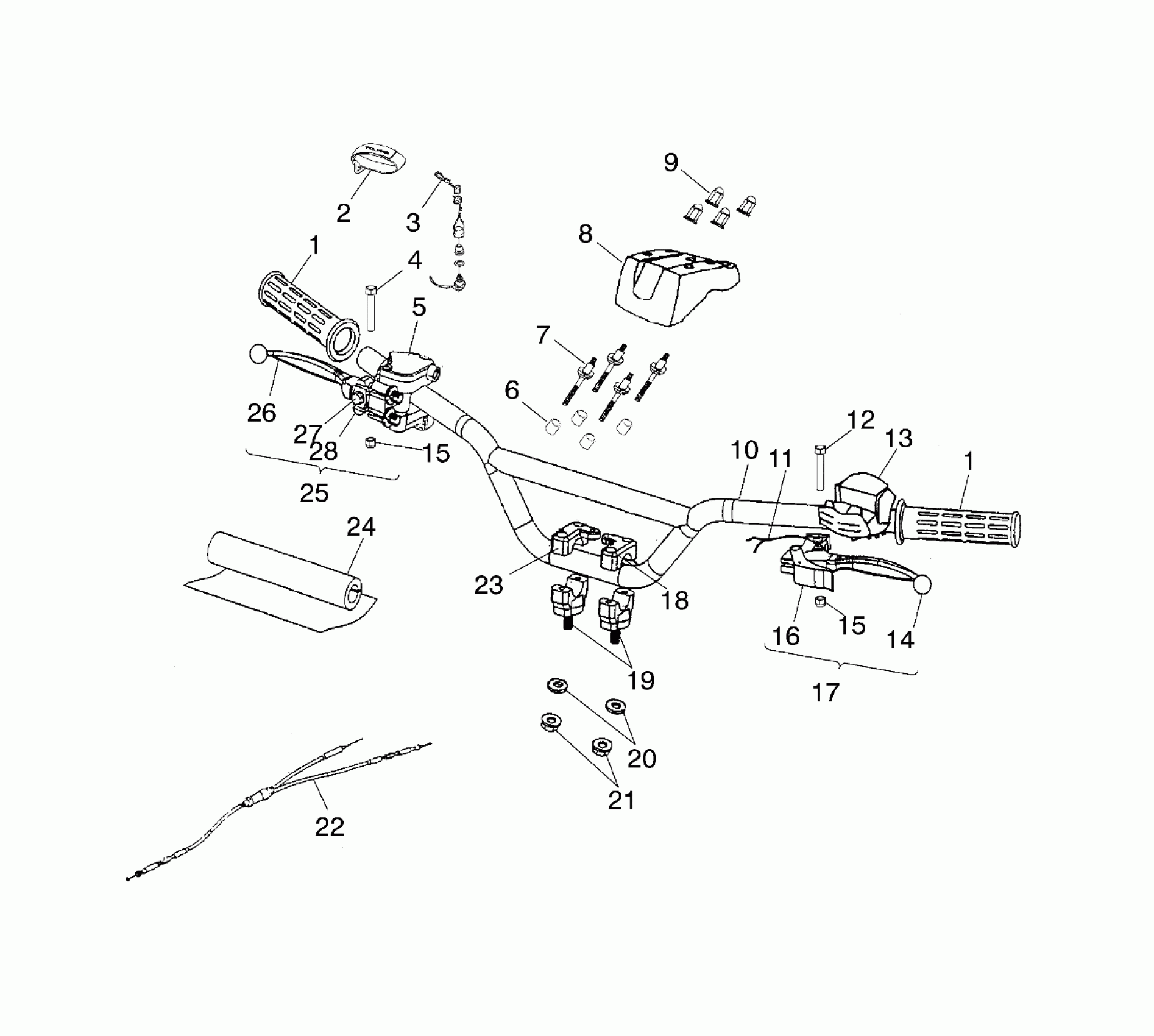

Polaris SCRAMBLER 50 - A02EA05CA HANDLEBAR - A02EA05CA (4970857085B11) Diagram

#

Description
Price

1

Grip, Handlebar

0450835

Unavailable

1

Grip, Handlebar

0450835

Unavailable

2

Wristband

7080891

Unavailable

3

Switch, Safety

0450550

Unavailable

4

BOLT, BRAKE LEVER, RH

0450806

$2.39

5

Asm., Throttle

0450689

Unavailable

6

Bushing

0450838

$3.19

7

Bolt, Stud

0450716

Unavailable

8

Cover, Handlebar

0450644

Unavailable

9

Nut, Round Head

0450717

Unavailable

10

Handlebar

0450646

Unavailable

11

Harness, Sensor Switch

0450836

$31.99

12

Bolt, Brake Lever, LH

0450807

$7.19

13

Asm., Switch, LH

0450914

Unavailable

14

Lever, Brake, LH

0450690

$27.99

15

NUT, LOCK

0450808

$2.39

15

NUT, LOCK

0450808

$2.39

16

Lock, Park Brake

0450688

$10.39

17

Asm., Brake Lever, LH (Incl. 12,14,15,16)

0450665

Unavailable

18

COVER, CLAMP, LH

0450460

$35.99

19

CLAMP, SADDLE

0450459

$39.99

20

WASHER

0450279

$3.19

21

NUT, LOCK

0450276

$3.99

22

Cable, Throttle

0450471

$51.99

23

COVER, CLAMP, RH

0450461

$27.99

24

Rubber, Protective

0450476

Unavailable

25

Asm., Brake Lever, RH (Incl. 5,26-28)

0450666

Unavailable

26

Lever, Brake, RH

0450691

$27.99

27

Bolt

0450309

Unavailable

28

BRACKET, BRAKE CABLE

0450994

$31.99
