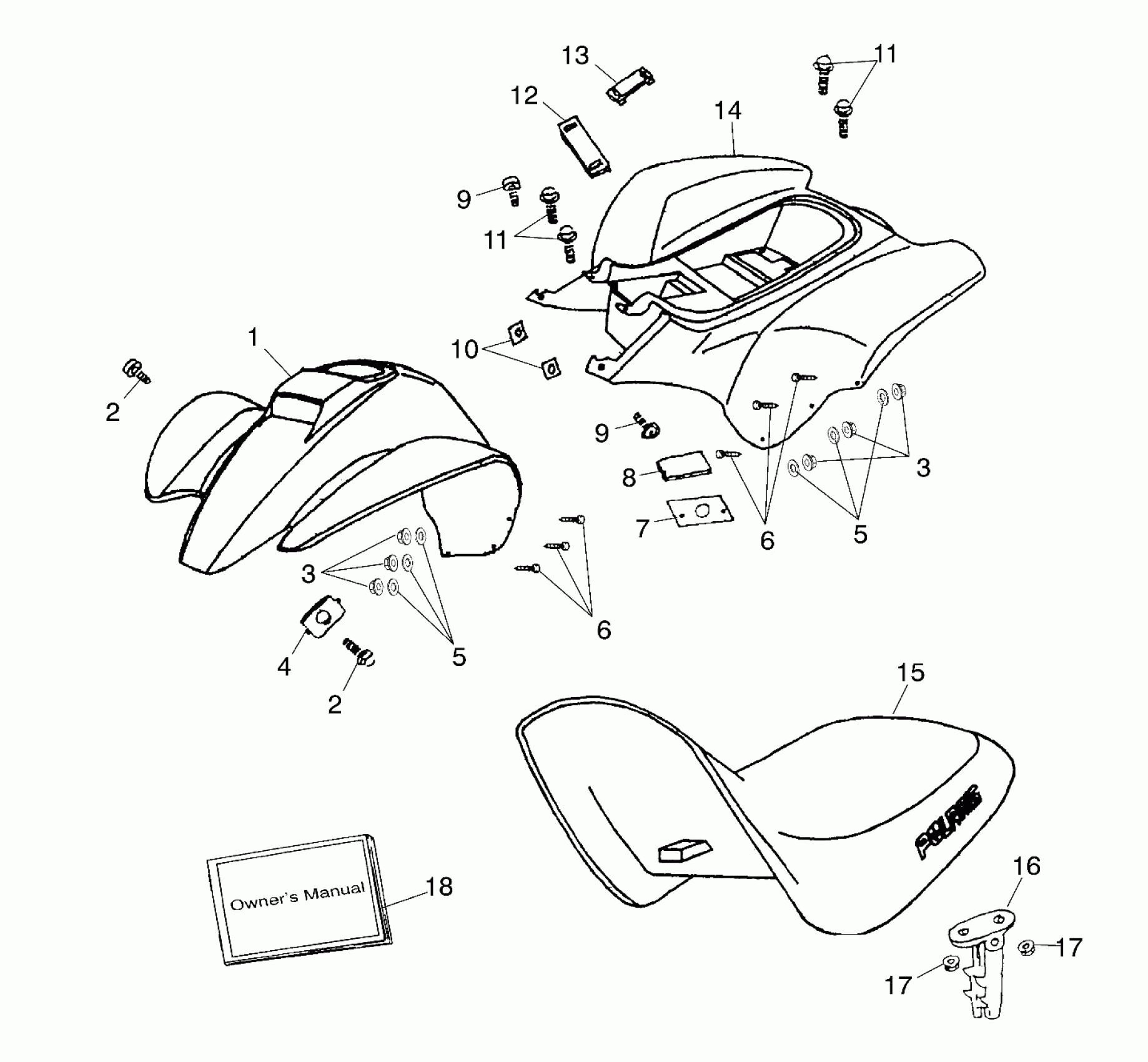

Polaris SCRAMBLER 50 - A02EA05CA FENDER/SEAT - A02EA05CA (4978757875B04) Diagram

#

Description
Price

1

Fender, Front

0450619

Unavailable

2

Bolt w/Washer, Hex

0450824

$2.39

2

Bolt w/Washer, Hex

0450824

$2.39

3

Nut, Lock

0450741

$3.19

3

Nut, Lock

0450741

$3.19

4

Plate, Fix

0450353

Unavailable

5

Washer, Plain

0450710

$1.49

5

Washer, Plain

0450710

$1.49

6

Bolt, Phillips

0450667

$5.59

6

Bolt, Phillips

0450667

$5.59

7

Pad, Protector

0450345

$39.99

8

Rubber, Battery

0450346

$2.39

9

Bolt, Pan

0450297

$4.79

9

Bolt, Pan

0450297

$4.79

10

Nut, U-Plate

0450342

$4.79

11

Bolt, Hex

0450340

Unavailable

11

Bolt, Hex

0450340

Unavailable

12

Strap, Battery

0450897

Unavailable

13

Strap, Battery, Tool Box

0450898

$5.40

14

Fender, Rear

0450620

Unavailable

15

Asm., Seat

0450355

Unavailable

16

Hook, Seat

0450356

$28.32

17

NUT, FLANGE, HEX

0450880

$3.99

17

NUT, FLANGE, HEX

0450880

$3.99

18

Manual, Owner's, 2002 Youth ATV

9917080

$27.99
