- SCRAMBLER 50 - A02EA05CA
DRIVE PULLEY - A02EA05CA (4978757875A12)

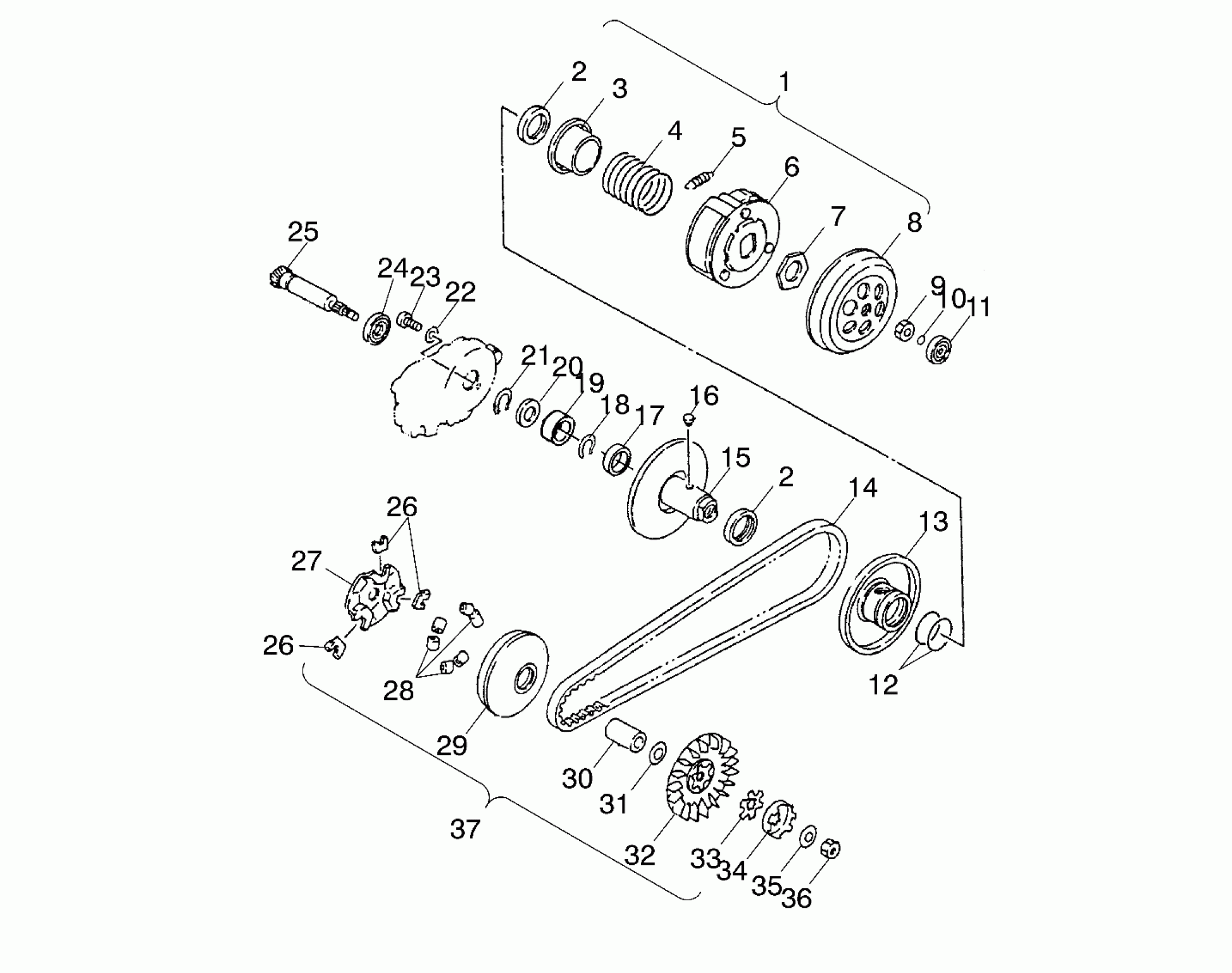

Polaris SCRAMBLER 50 - A02EA05CA DRIVE PULLEY - A02EA05CA (4978757875A12) Diagram
#
Description
Price
1
Asm., Secondary Sheave [Incl. 2,-8,12,13,15,16]
0450201
$239.99
2
SEAL, OIL
0450211
$9.59
2
SEAL, OIL
0450211
$9.59
3
Seat, Spring, Secondary
0450218
$9.91
4
Spring, Compression
0450216
Unavailable
5
Spring, Weight, Clutch
0450205
$2.63
6
Carrier, Clutch
0450203
Unavailable
7
Nut
0450220
Unavailable
8
Cover, Clutch
0450222
Unavailable
9
Nut, Hex
0450224
$4.79
10
O-RING
0450226
$1.49
11
BEARING
0450225
$39.99
12
Ring, Oil
0450212
$1.67
13
Wheel, Slot, Sliding, Secondary
0450209
$42.39
14
V-Belt
0450238
$56.73
15
Wheel, Slot, Fixed, Secondary
0450207
$56.99
16
Pin, Guide
0450214
$2.23
17
Bearing, Ball
0451016
$31.99
18
Circlip
0451017
$5.99
19
Bearing, Needle
0451015
Unavailable
20
Seal, Oil
0450200
$11.99
21
Circlip, External
0450198
$4.79
22
WASHER, PLAIN
0450041
$4.79
23
Bolt, Socket, Hex
0450158
$5.59
24
BEARING
0450199
$31.99
25
Asm., Primary Drive
0450194
$132.79
26
Slider
0450233
$2.38
26
Slider
0450233
$2.38
27
Plate, Cam
0450231
Unavailable
28
Roller, Weight
0450229
Unavailable
29
Wheel, Slot, Sliding, Primary
0450227
Unavailable
30
Bushing
0450235
$14.39
31
Washer
0450237
$0.95
32
Sheave, Fixed, Primary
0450240
Unavailable
33
Washer, Claw
0450242
Unavailable
34
Clutch, One-Way
0450244
Unavailable
35
Washer, Spring, Cone
0450247
Unavailable
36
NUT, FLANGE
0450249
$3.99
37
Asm., Sliding Drive [Incl. 26,27,28,29,30,31,32,33]
0450250
Unavailable
