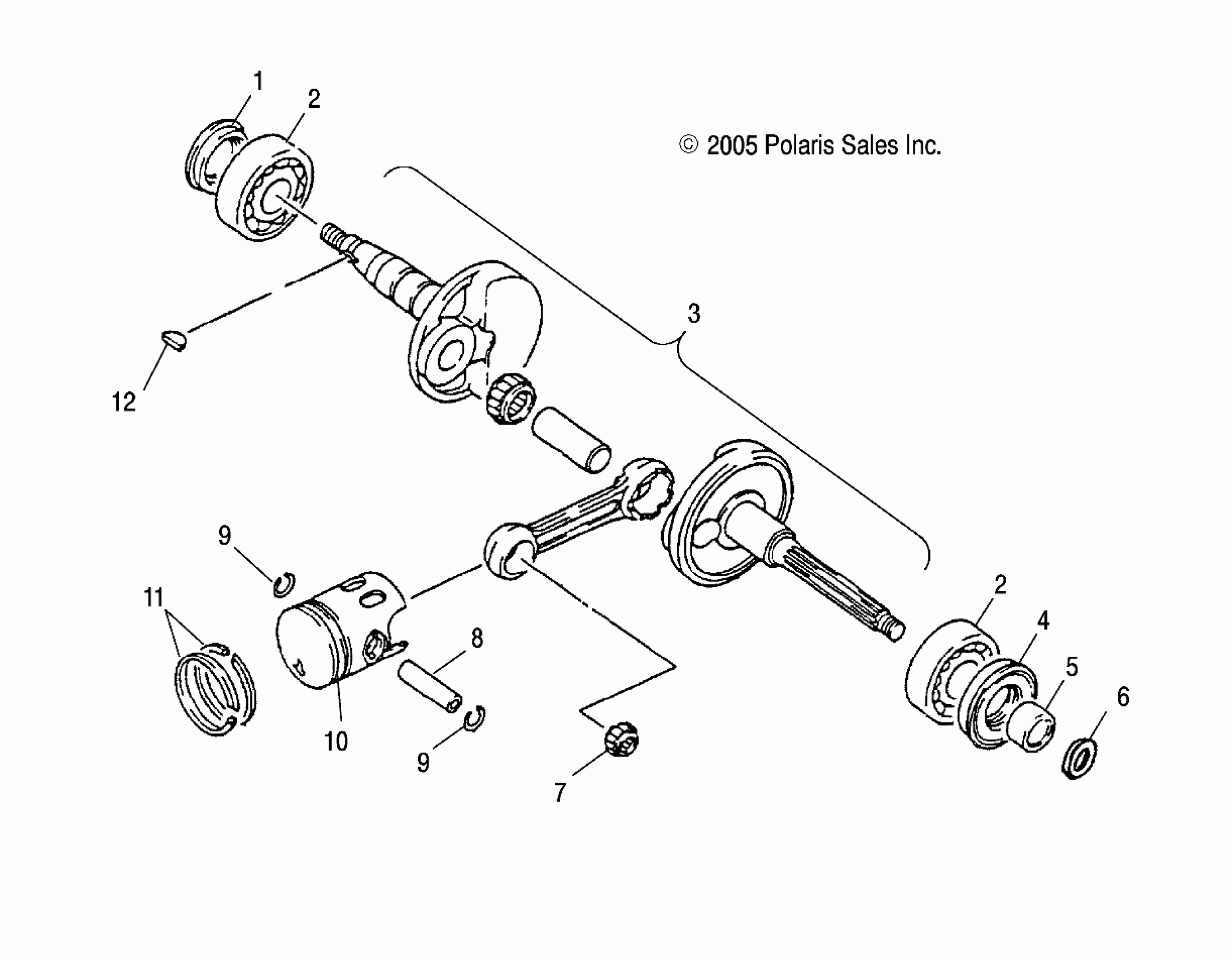

Polaris SCRAMBLER 50 - A02EA05CA CRANKSHAFT - A02EA05CA (4999202399920239A04) Diagram

#

Description
Price

1

Seal, Oil

0450018

$28.32

2

Bearing, Ball, Radial

0450016

$31.75

2

Bearing, Ball, Radial

0450016

$31.75

3

Crankshaft

0450013

$489.99

4

Seal, Oil

0450017

$12.13

5

Collar, Crank, LH

0450019

Unavailable

6

Washer, Plain

0450654

Unavailable

7

Bearing, Needle

0450028

$31.75

8

Pin, Piston

0450022

$27.78

9

Clip, Piston Pin

0450026

Unavailable

9

Clip, Piston Pin

0450026

Unavailable

10

Piston [.25 mm O/S]

0450652

Unavailable

10

Piston [.50 mm O/S]

0450733

Unavailable

10

Piston [Std]

0450801

Unavailable

11

Ring Set, Piston [.50 mm O/S]

0450734

Unavailable

11

Ring Set, Piston [.25 mm O/S]

0450810

$38.08

11

Ring Set, Piston [Std]

0450024

Unavailable

12

Key, Semicycle

0450015

$5.56
