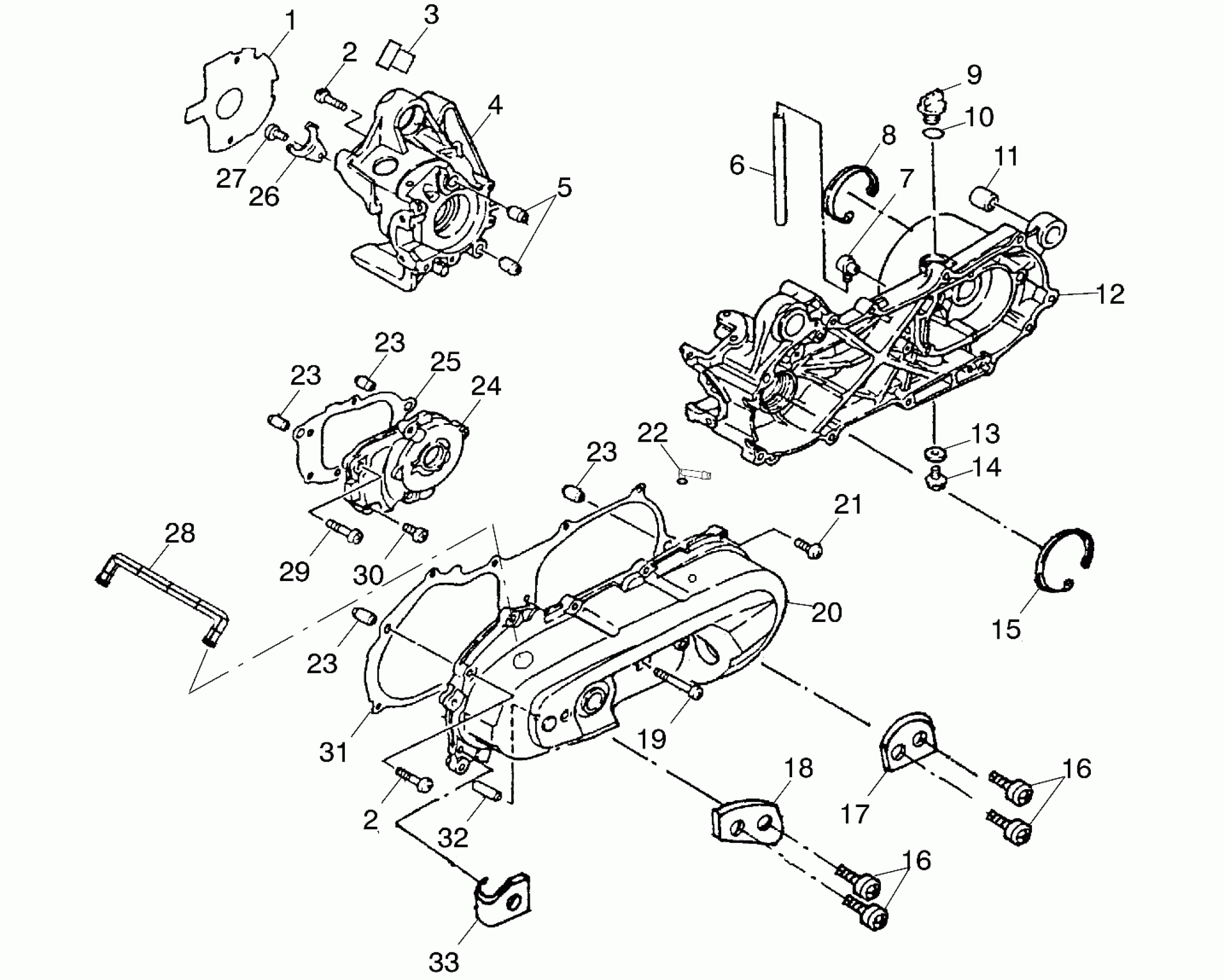

Polaris SCRAMBLER 50 - A02EA05CA CRANKCASE - A02EA05CA (4978757875A10) Diagram

#

Description
Price

1

Gasket, Generator

0450159

$8.08

2

Bolt, Socket

0450138

Unavailable

2

Bolt, Socket

0450138

Unavailable

3

Plug, Rubber

0450170

$5.65

4

Crankcase, RH

0450134

$133.99

5

Pin, Dowel

0450137

$2.22

6

Hose, Breather

0450136

Unavailable

7

Head, Breather Hose

0450133

Unavailable

8

Circlip, Internal

0450161

$5.56

9

Plug, Oil

0450153

Unavailable

10

O-Ring

0450154

$1.60

11

Bushing, Rubber

0450132

Unavailable

12

Crankcase, LH

0450130

$454.99

13

Washer

0450156

Unavailable

14

BOLT, HEX

0450298

$2.38

15

Circlip, Internal

0450162

$5.56

16

Bolt, Pan, Phillips

0450149

$1.19

16

Bolt, Pan, Phillips

0450149

$1.19

17

Protector B

0450169

$18.10

18

Protector A

0450165

$19.68

19

Bolt, Socket, Hex

0450151

Unavailable

20

Cover, Crankcase, LH

0450145

$164.99

21

Bolt, Socket, Hex

0450148

$3.97

22

Tube, Breather

0450674

$11.32

23

PIN, DOWEL

0450142

$3.97

23

PIN, DOWEL

0450142

$3.97

23

PIN, DOWEL

0450142

$3.97

23

PIN, DOWEL

0450142

$3.97

24

Cover, Mission

0450139

Unavailable

25

Gasket, Cover, Mission

0450140

$4.03

26

Bracket, Oil Seal

0450157

Unavailable

27

Bolt, Socket, Hex

0450158

$5.65

28

Duct

0450707

$36.41

29

Bolt, Pan Head

0450143

$0.82

30

Bolt, Pan Head

0450039

$3.97

31

Gasket, Crankcase Cover, LH

0450141

$32.37

32

Shaft, Pin

0450147

Unavailable

33

BRACKET, CARBURETOR TUBE

0450160

$4.84
