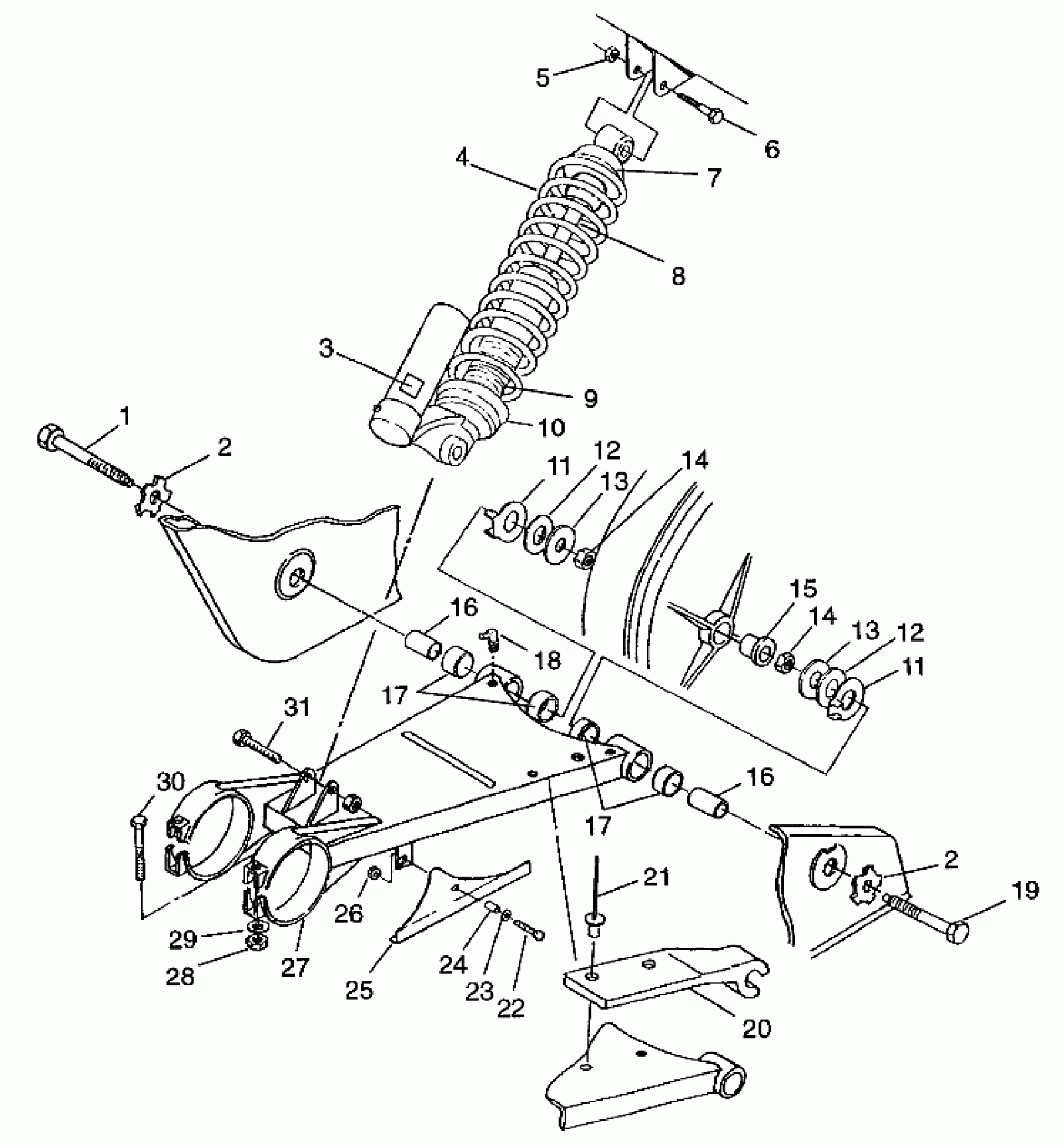

Polaris SCRAMBLER 4X4 - W957840 SWING ARM/SHOCK MOUNTING Scrambler W957840 (4927252725B014) Diagram

#

Description
Price

1

BOLT, SHOULDER

7512701

$23.99

2

PLATE,BOLT LOCK

5220958

$35.99

2

PLATE,BOLT LOCK

5220958

$35.99

3

DECAL,WARN.(FOX ATV SHOCK)

7075343

Unavailable

4

DESC NOT_AVAILABLE

7041389-171

Unavailable

5

NUT-LOCK(10)

7542439

$1.49

6

BOLT(10)

7515415

$1.49

7

RETAINER, SHOCK

5222118

Unavailable

8

SHOCK,GAS,RESERVOIR

7041383

Unavailable

9

RETAINER,SPRING,BODY,THREADED

1500063

$44.51

10

RING,SPRING PRELOAD ADJ.

5431734

$52.60

11

BUSHING

5240952

$34.99

11

BUSHING

5240952

$34.99

12

BUSHING Substituted by 5433414

5431977

Unavailable

12

BUSHING Substituted by 5433414

5431977

Unavailable

13

WASHER(10)

7555911

$4.79

13

WASHER(10)

7555911

$4.79

14

NUT, LOCK(10)

7542602

Unavailable

14

NUT, LOCK(10)

7542602

Unavailable

15

Bushing, Pivot (See Pg., Ref.)

-------

Unavailable

16

BUSHING,SWING ARM

5020793

$8.79

16

BUSHING,SWING ARM

5020793

$8.79

17

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

17

BUSHING,SWING ARM Substituted by 5433417

5431972

Unavailable

18

FITTING,LUBE,45 DEG.(10) (45

7080586

Unavailable

19

BOLT, SHOULDER

7512702

Unavailable

20

GUIDE, CHAIN

5431310

$32.37

21

RIVET(50)

7621433

$1.49

22

SCREW-FLANGED(10)

7515304

$5.59

23

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

24

Bushing

5332828

$9.59

25

GUIDE,CHAIN GUARD Substituted by 5430776

5431968

$34.74

26

NUT LOCK(10)

7542321

$1.49

27

ARM,SWING,BLK. Substituted by 1580088

1580087-067

Unavailable

28

NUT, LOCK,(10)

7542503

$10.39

29

WASHER(10)

7555883

$3.99

30

BOLT(10)

7512576

$7.99

31

BOLT(10)

7515438

$4.79
