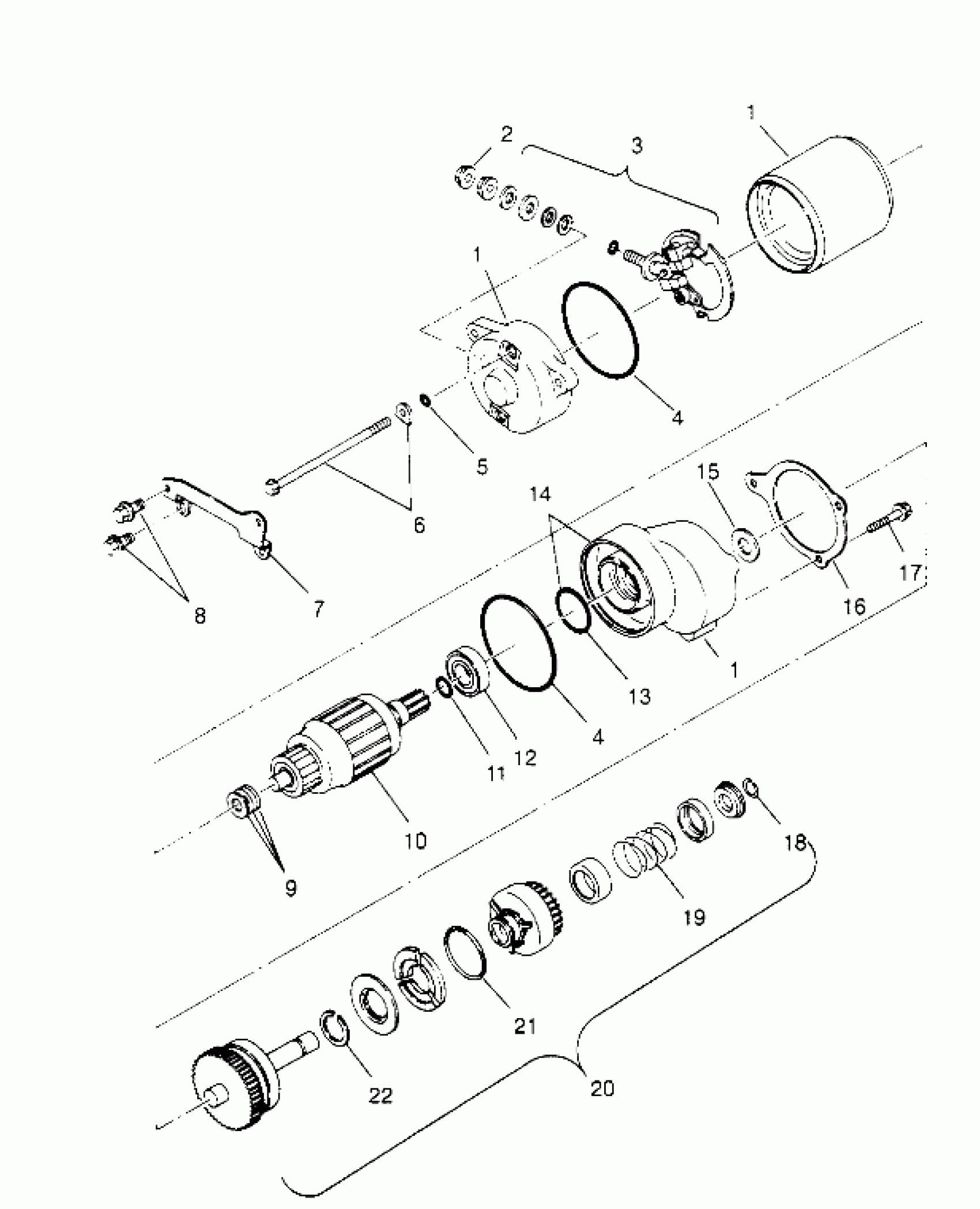

Polaris SCRAMBLER 4X4 - W957840 STARTING MOTOR Scrambler W957840 (4927252725D005) Diagram

#

Description
Price

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-6, 9-14)

3084403

Unavailable

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-6, 9-14)

3084403

Unavailable

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 1-6, 9-14)

3084403

Unavailable

2

NUT, FLANGE(10)

3083649

$3.99

3

BRUSH,COMPL.2-POLE *

3084406

Unavailable

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

O-RING

3084408

Unavailable

6

Bolt, Through

3084407

Unavailable

7

BRACKET Substituted by 3086780

3084214

Unavailable

8

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

9

Washer Set

3083754

$2.39

10

ARMATURE ASM. * (Incl. 11, 12)

3084404

$207.99

11

O RING Substituted by 3083934

3083755

Unavailable

12

BALL BEARING

3083777

$31.99

13

O RING

3083741

$9.37

14

COVER,FRT,STARTER(300-400) Substituted by 3085305 (Incl. 13)

3085031

$123.02

15

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

16

GASKET, STARTER Substituted by 3085283

3084018

Unavailable

17

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

18

CLIP

3084409

$7.19

19

SPRING, RETURN

3084410

$2.47

20

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 15, 18, 19, 21, 22)

3083647

Unavailable

21

SPRING, WEIGHT

3084411

$15.67

22

CLIP

3084412

$9.59
