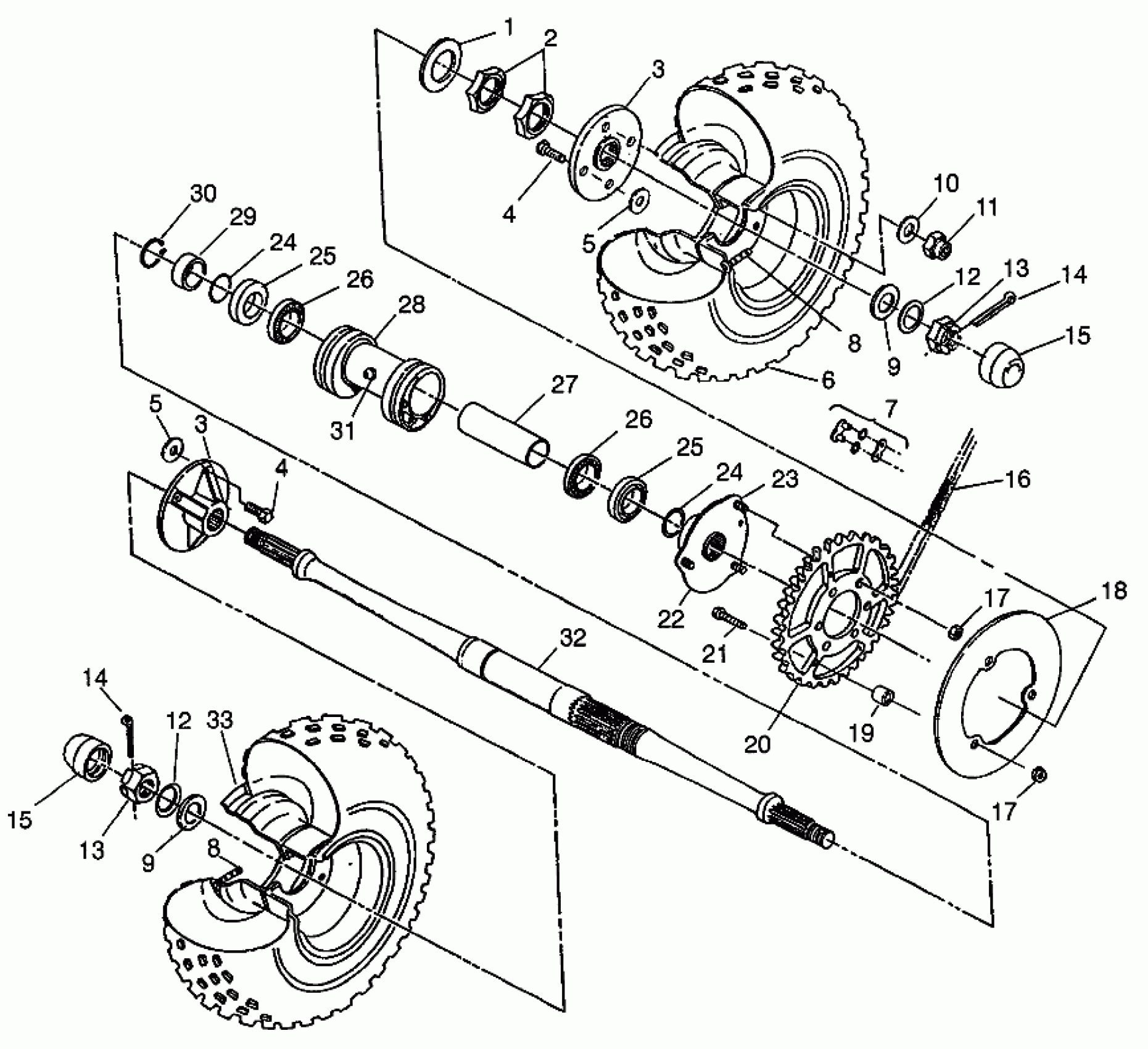

Polaris SCRAMBLER 4X4 - W957840 REAR WHEEL DRIVE Scrambler W957840 (4927252725C005) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

KIT, MACH.HUB (Incl. 12)

2200341

$93.08

3

KIT, MACH.HUB (Incl. 12)

2200341

$93.08

4

BOLT, WHEEL(10)

7512673

$3.17

4

BOLT, WHEEL(10)

7512673

$3.17

5

WASHER(10)

7555914

Unavailable

5

WASHER(10)

7555914

Unavailable

6

TIRE,REAR,(4X6) (22X11X10)

5410539

Unavailable

7

CONNECTOR LINK,CHAIN

3225026

$32.37

8

VALVE-RIM

1525017

$6.46

8

VALVE-RIM

1525017

$6.46

9

WASHER(10)

7555745

Unavailable

9

WASHER(10)

7555745

Unavailable

10

WASHER(10)

7558504

Unavailable

11

NUT, WHEEL(10)

7542714

$1.59

12

WASHER, CONE(10)

7555796

$7.94

12

WASHER, CONE(10)

7555796

$7.94

13

NUT, CASTLE(10)

7543005

Unavailable

13

NUT, CASTLE(10)

7543005

Unavailable

14

PIN, COTTER(10)

7661404

$4.76

14

PIN, COTTER(10)

7661404

$4.76

15

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

15

COVER,DUST,HUB Substituted by 5411164

5410404

$28.32

16

CHAIN, 84P

3224056-084

$145.70

17

NUT LOCK(10)

7542403

Unavailable

17

NUT LOCK(10)

7542403

Unavailable

18

GUARD,38T SPKT,BLK.ALUM.

5211585-067

Unavailable

19

SPACER

5020838

Unavailable

20

SPROCKET, 38T

3222065

$113.99

21

SCREW(10)

7515434

Unavailable

22

SPROCKET HUB ASM. (Incl. 23)

1520170

Unavailable

23

STUD(10)

7515513

$1.19

24

O RING, 1 5/16(10)

5410415

Unavailable

24

O RING, 1 5/16(10)

5410415

Unavailable

25

SEAL, REAR AXLE

3610013

Unavailable

25

SEAL, REAR AXLE

3610013

Unavailable

26

Bearing, Ball

3515501

$27.78

26

Bearing, Ball

3515501

$27.78

27

TUBE,BEARING SPACER

5010204

Unavailable

28

HOUSING, AXLE

5130663

Unavailable

29

SPACER,BEARING

5010206

Unavailable

30

RING, SNAP(10)

7710405

$4.76

31

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

32

AXLE,REAR,HVY.

5020790

$349.99

33

RIM,REAR,WHITE

1520204-133

Unavailable
