Description

Price

1

COVER,SEAT,BLK.

2681769-070

Unavailable

1

SEAT ASM,BLK. Substituted by 2682320-070

2681768-070

$524.99

2

TONGUE,SEAT

5431986

$9.59

3

RIVET(50)

7621479

$1.99

4

Bumper, Rubber

5410414

$3.19

5

CAB,REAR,WHITE Substituted by 5432606-133

5431871-133

Unavailable

6

DECAL,CARB.INFO.

7073761

Unavailable

7

Foil, Rear Cab, Small

5810991

Unavailable

8

BLIND RIVET(50)

7621403

$1.49

9

BRACKET,LEVER RETAINER

5211033

$29.25

10

LATCH,SEAT,BLK. Substituted by 1040412

1040412-067

Unavailable

11

SPRING, LATCH

7041158

Unavailable

12

BOLT(10)

7512232

$1.49

13

Grommet

5411042

Unavailable

14

RIVET,3/16X.402(50)

7621432

$1.49

15

BRKT,R.HOLDDOWN

5220880

Unavailable

16

BOLT, BLACK(10)

7512282

$1.49

16

BOLT, BLACK(10)

7512282

$1.49

16

BOLT, BLACK(10)

7512282

$1.49

17

Foil, Rear Cab

5810957

Unavailable

18

WASHER, FLAT(10)

7555859

$1.49

18

WASHER, FLAT(10)

7555859

$1.49

19

NUT-LOCK(10)

7542122

$1.49

20

BRKT, LH MUD FLAP

5211131-067

Unavailable

21

MUDFLAP,LH,REAR

5850122

$13.99

21

MUDFLAP,RH,REAR

5850123

Unavailable

22

FOIL,FOAM

5811113

Unavailable

22

SHIELD,MUFFLER,BLK. Substituted by 2632274

5431869-070

Unavailable

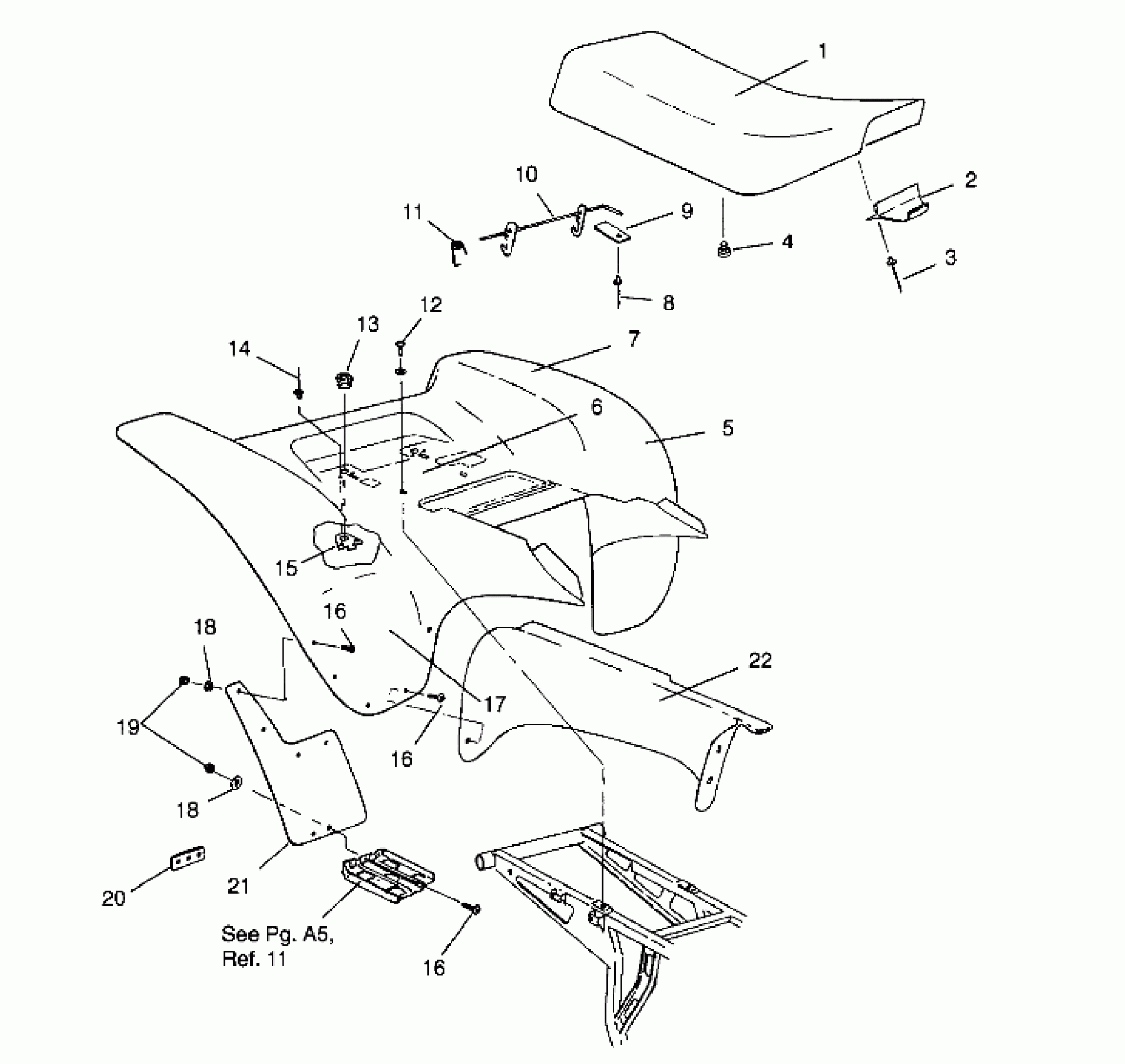

Polaris SCRAMBLER 4X4 - W957840 REAR CAB ASSEMBLY Scrambler W957840 (4927252725A006) Diagram

COVER,SEAT,BLK.

SEAT ASM,BLK. Substituted by 2682320-070

TONGUE,SEAT

RIVET(50)

Bumper, Rubber

CAB,REAR,WHITE Substituted by 5432606-133

DECAL,CARB.INFO.

Foil, Rear Cab, Small

BLIND RIVET(50)

BRACKET,LEVER RETAINER

LATCH,SEAT,BLK. Substituted by 1040412

SPRING, LATCH

BOLT(10)

Grommet

RIVET,3/16X.402(50)

BRKT,R.HOLDDOWN

BOLT, BLACK(10)

BOLT, BLACK(10)

BOLT, BLACK(10)

Foil, Rear Cab

WASHER, FLAT(10)

WASHER, FLAT(10)

NUT-LOCK(10)

BRKT, LH MUD FLAP

MUDFLAP,LH,REAR

MUDFLAP,RH,REAR

FOIL,FOAM

SHIELD,MUFFLER,BLK. Substituted by 2632274
