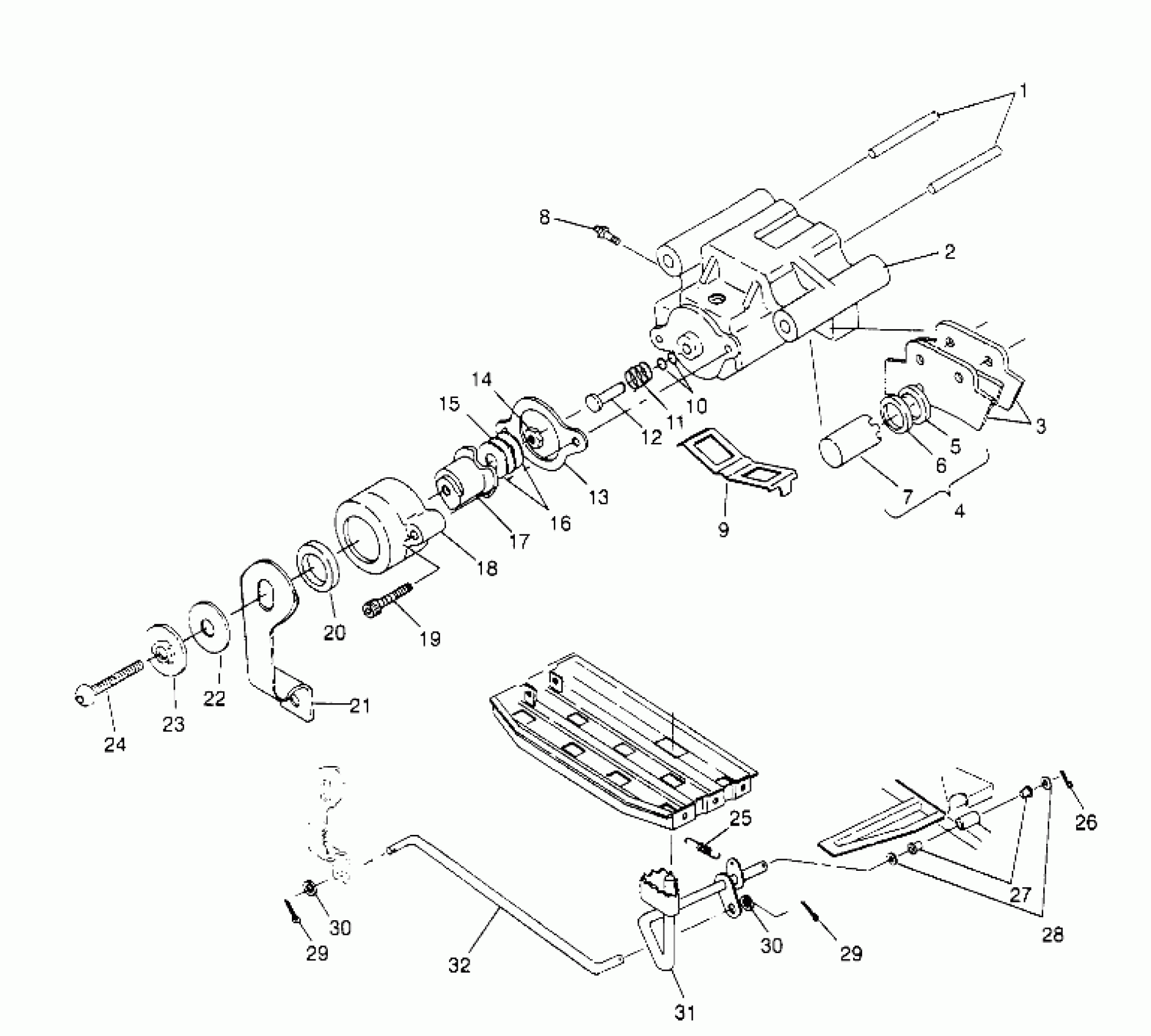

Polaris SCRAMBLER 4X4 - W957840 REAR BRAKE ASSEMBLY Scrambler W957840 (4927252725C004) Diagram

#

Description
Price

1

PIN, DOWEL(10)

7661820

$13.99

2

CALIPER,R.BRAKE,MACH. Substituted by 5131272

5131117

Unavailable

3

KIT,BRAKEPAD,REAR

2200464

$66.65

4

KIT-PISTON & SEAL (Incl. 5-7)

2200463

$97.76

5

Square Ring (.134 Sq.)

----

Unavailable

6

Square Ring (.099 Sq.)

----

Unavailable

7

Piston

----

Unavailable

8

SCREW,BLEEDER

7080352

$3.17

9

SPRING,ANTI-RATTLE

5240993

Unavailable

10

O RING-.364X.504X.07

5410542

$4.84

11

SPRING,BRAKE,COMP.

7041219

Unavailable

12

PIN,BRAKE CALIPER

5020791

Unavailable

13

GASKET, BRAKE

5830009

Unavailable

14

NUT, LH(10)

7542149

$5.40

15

WASHER(10)

7555921

Unavailable

16

WASHER(10)

7555827

$3.97

17

RAMP,MOVE.BRAKE Substituted by 2200906

5630538

Unavailable

18

RAMP, STAT.BRAKE Substituted by 2200905

5630457

Unavailable

19

SCREW(10)

7512173

Unavailable

20

SEAL, BRAKE

3610026

Unavailable

21

ARM,BRAKE CALIPER

5240901

Unavailable

22

WASHER, SPRING(10)

7555828

Unavailable

23

WASHER(10)

7571632

Unavailable

24

BOLT,LH SOC/HD.

7515160

Unavailable

25

SPRING-EXHAUST(10)

7042029

$5.65

26

COTTER PIN(10)

7661401

$0.79

27

BUSHING-PEDAL PIVOT

5431107

$8.73

28

WASHER THRUST(10)

7558702

$1.59

29

PIN COTTER(10)

7661203

$1.19

29

PIN COTTER(10)

7661203

$1.19

30

WASHER(10)

7555806

$0.79

30

WASHER(10)

7555806

$0.79

31

BRAKE,FOOT,BLK.

1910172-067

Unavailable

32

ROD, BRAKE

5224531

$51.59
