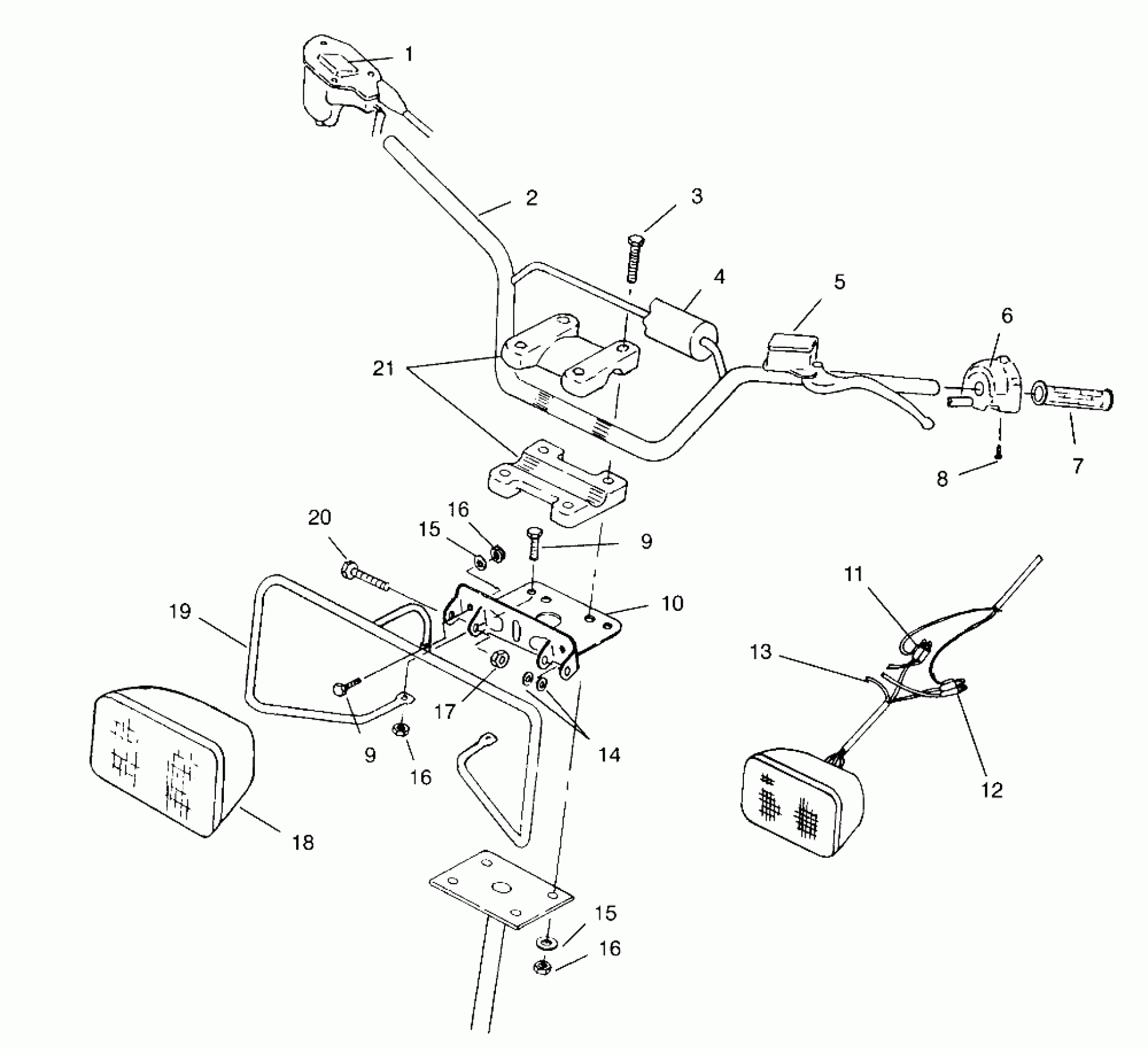

Polaris SCRAMBLER 4X4 - W957840 HANDLEBAR/HEADLIGHT ASSEMBLY Scrambler W957840 (4927252725B008) Diagram

#

Description
Price

1

THROTTLE CONTROL,AWD,PRD.EASY

2010149

Unavailable

2

HANDLEBAR,BLK. Substituted by 1820594-067

1823173-067

Unavailable

3

SCREW(10)

7515165

Unavailable

4

Pad, Handlebar

5521181

Unavailable

4

COVER,H'BAR PAD

2690093

$61.99

5

Asm., Master Cylinder (See Pg. , Ref. )

----

Unavailable

6

SWITCH,LH,H'BAR(ATV)

4110157

Unavailable

7

GRIP, HANDLEBAR

5431030

$28.32

8

SCREW

2010055

Unavailable

9

BOLT(10)

7512269

Unavailable

9

BOLT(10)

7512269

Unavailable

10

BRKT, H/L.

5240947-067

Unavailable

11

HARNESS,JUMPER,LO-BEAM

2460513

Unavailable

12

HARNESS,JUMPER,HI-BEAM

2460514

Unavailable

13

HARNESS,CONTROL PANEL

2460521

Unavailable

14

WASHER,5/16SHAKEPROOF(10)

7577909

Unavailable

15

WASHER(10) Substituted by 7558301

7555776

$1.19

15

WASHER(10) Substituted by 7558301

7555776

$1.19

16

NUT(10)

7542124

$1.19

16

NUT(10)

7542124

$1.19

16

NUT(10)

7542124

$1.19

17

NUT, NYLOK(10)

7542327

$4.76

18

H/L.ASM.

4032076

Unavailable

18

BULB,H/L

4032088

Unavailable

19

GUARD,H/L,BLK. Substituted by 1040579-067

1040433-067

Unavailable

20

BOLT(10)

7515319

$4.76

21

BLOCK,HANDLEBAR

5630187-067

$49.99
