Description

Price

-

GEARCASE ASM,(SCRAMBLER) (Incl. 1-49)

1341140

Unavailable

1

GEARCASE, LH.

3233095

$298.99

2

Screw

3233026

$6.46

3

SEAL Substituted by 3233248

3233096

Unavailable

3

SEAL Substituted by 3233248

3233096

Unavailable

4

BUSHING,PIVOT

3233024

Unavailable

5

STUD

3233025

Unavailable

6

SEAL Substituted by 3233248

3233097

$30.88

7

PIPE, KNOCK

3233021

Unavailable

7

PIPE, KNOCK

3233021

Unavailable

8

RAIL,SHIFT,ASM.

3233098

Unavailable

9

PLUG

3233178

Unavailable

10

SHAFT,SHIFT/BUTTON ASM.

3233188

Unavailable

11

O-RING

3233192

Unavailable

12

PLUNGER ASM.

3233186

$66.99

13

SCREW

3233193

Unavailable

14

O-RING

3233179

Unavailable

15

WASHER

3233119

$7.79

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

17

BELLCRANK, HI/REV

3233155

Unavailable

18

Washer

3233054

$6.46

19

Nut

3233055

Unavailable

20

PIN

3233031

$32.11

20

PIN

3233031

$32.11

21

SCREW Substituted by 3233747

3233033

Unavailable

22

BRACKET

3233030

$21.43

23

Spring

3233189

Unavailable

24

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

25

WASHER

3233099

Unavailable

26

DOG,REV.ENGAGE.

3233180

Unavailable

27

SHAFT, INPUT

3233181

$214.29

28

GEAR,REVERSE (19T)

3233182

Unavailable

29

BEARING, NEEDLE

3233103

$31.99

30

SPKT,19T,FWD. (19T)

3233183

Unavailable

31

Washer

3233105

$7.19

32

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

33

DOG,FWD.ENGAGE.

3233184

Unavailable

34

WASHER

3233007

Unavailable

35

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

36

BEARING

3233020

$47.99

36

BEARING

3233020

$47.99

37

WASHER

3233108

Unavailable

38

GEAR, 65T

3233109

Unavailable

39

SPROCKET, 51T

3233121

Unavailable

40

CHAIN,SILENT,60P (60P)

3233111

$79.19

41

SHAFT, OUTPUT

3233190

Unavailable

42

GEARCASE,RH

3233187

$262.36

43

Washer

3233035

Unavailable

44

PLUG Substituted by 3233448

3233114

$23.81

45

Vent

3233037

Unavailable

46

DIPSTICK Substituted by 3233478

3233115

$24.27

47

SPKT,13T,SPLINED

3221041

$43.99

48

RING,RETAINING(10) Substituted by 7710434

3233047

Unavailable

49

Disk, Brake (See Pg., Ref.)

-------

Unavailable

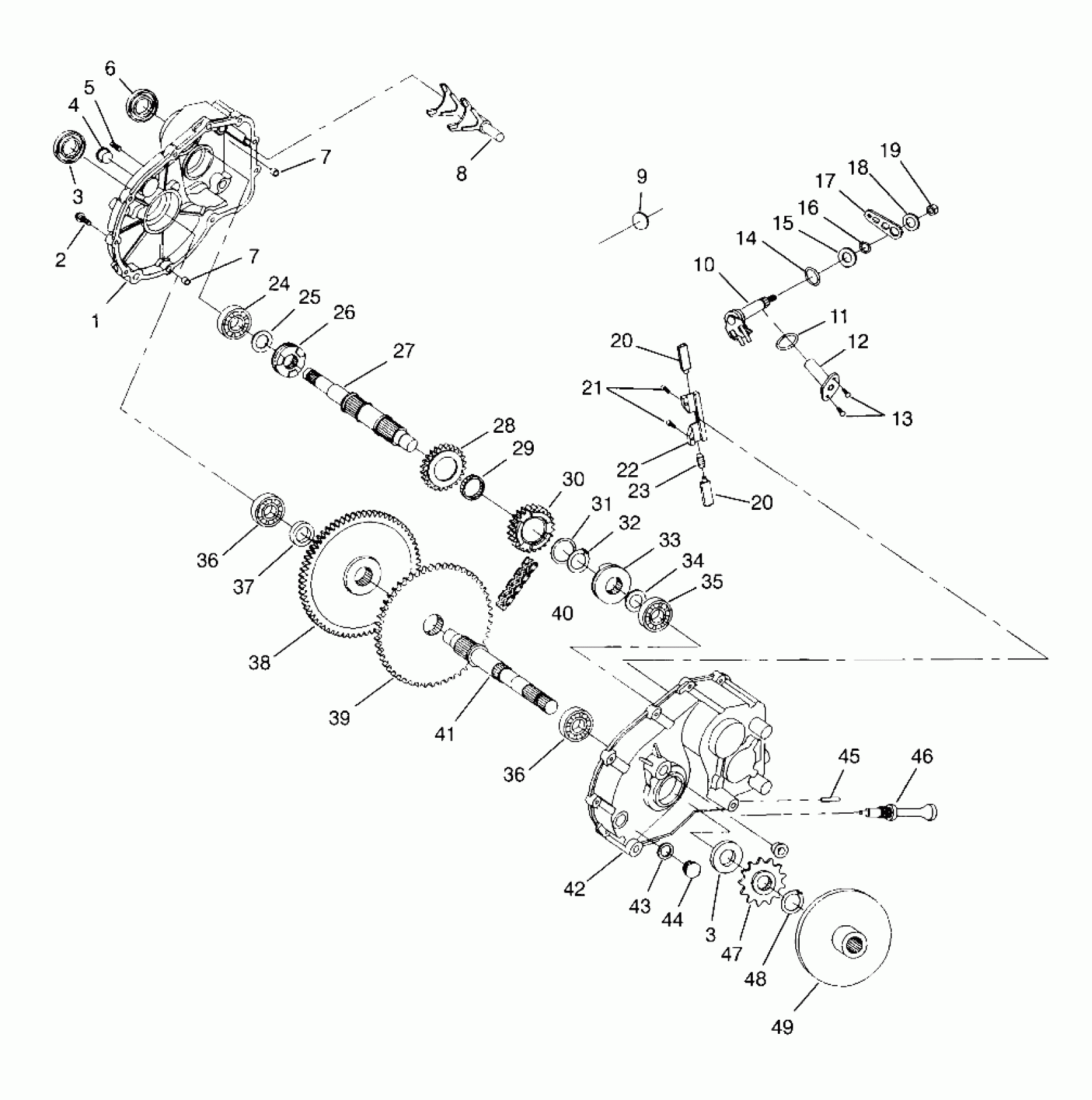

Polaris SCRAMBLER 4X4 - W957840 GEARCASE Scrambler W957840 (4927252725C009) Diagram

GEARCASE ASM,(SCRAMBLER) (Incl. 1-49)

GEARCASE, LH.

Screw

SEAL Substituted by 3233248

SEAL Substituted by 3233248

BUSHING,PIVOT

STUD

SEAL Substituted by 3233248

PIPE, KNOCK

PIPE, KNOCK

RAIL,SHIFT,ASM.

PLUG

SHAFT,SHIFT/BUTTON ASM.

O-RING

PLUNGER ASM.

SCREW

O-RING

WASHER

RING,RETAINING BASIC,EXTERNAL 0.75

BELLCRANK, HI/REV

Washer

Nut

PIN

PIN

SCREW Substituted by 3233747

BRACKET

Spring

BEARING, BALL, 6205 C3 25X52X15

WASHER

DOG,REV.ENGAGE.

SHAFT, INPUT

GEAR,REVERSE (19T)

BEARING, NEEDLE

SPKT,19T,FWD. (19T)

Washer

RING,RETAINING BASIC,EXTERNAL 0.984

DOG,FWD.ENGAGE.

WASHER

BEARING-BALL,6307 C3,35X80X21

BEARING

BEARING

WASHER

GEAR, 65T

SPROCKET, 51T

CHAIN,SILENT,60P (60P)

SHAFT, OUTPUT

GEARCASE,RH

Washer

PLUG Substituted by 3233448

Vent

DIPSTICK Substituted by 3233478

SPKT,13T,SPLINED

RING,RETAINING(10) Substituted by 7710434

Disk, Brake (See Pg., Ref.)
