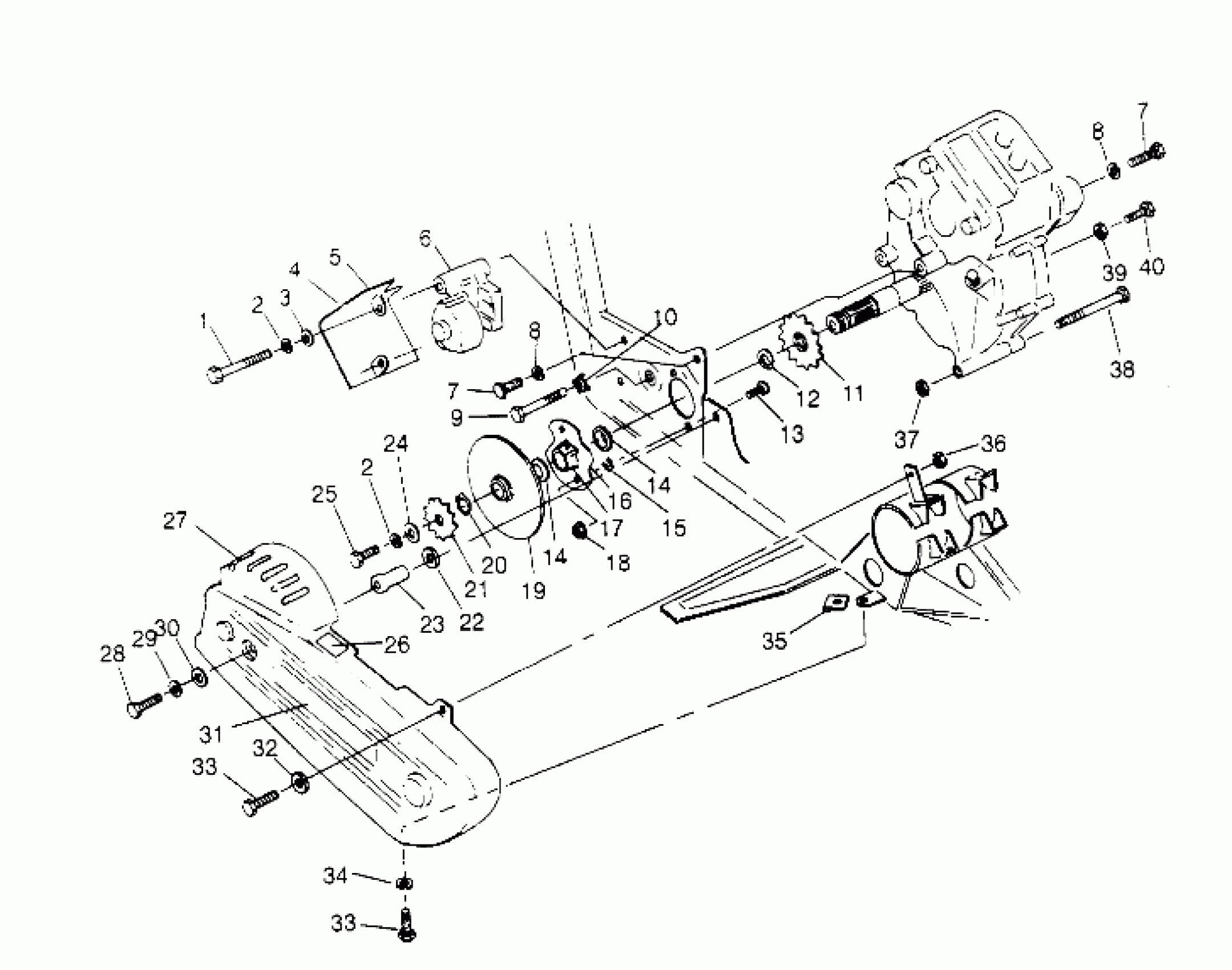

Polaris SCRAMBLER 4X4 - W957840 GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler W957840 (4927252725C003) Diagram

#

Description
Price

1

BOLT(10)

7515345

$5.56

2

LOCK WASHER(10)

7552901

$1.19

2

LOCK WASHER(10)

7552901

$1.19

3

WASHER-.344X.688X.063 FL-Y

7558402

$0.99

4

DECAL,BRAKE SHIELD

7075339

Unavailable

5

SHIELD,R.CALIPER,BLK.

5241018-067

Unavailable

6

CALIPER ASM,BRAKE Substituted by 1910227

1910175

Unavailable

7

BOLT(10)

7515522

$3.97

7

BOLT(10)

7515522

$3.97

8

WASHER(10)

7552603

$0.79

8

WASHER(10)

7552603

$0.79

9

Bolt, Shoulder (See Pg., Ref.)

----

Unavailable

10

Plate, Bolt Lock (See Pg., Ref.)

----

Unavailable

11

Sprocket, 11T (See Pg., Ref.)

----

Unavailable

12

Ring, Retaining (See Pg., Ref.)

----

Unavailable

13

BOLT,CARRIAGE(10)

7515484

Unavailable

14

SEAL, BRAKE

3610026

Unavailable

14

SEAL, BRAKE

3610026

Unavailable

15

SPACER,(10)

5210764

Unavailable

15

SHIM,(.030)

5211517

Unavailable

15

SHIM,(.010) Substituted by 5211065

5211518

Unavailable

16

BRG.ASM,O/P SHAFT

1590237

$84.99

17

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

18

NUT,FLANGE LOCK(10)

7542449

$3.97

19

DISC ASM,BRAKE

1910177

Unavailable

20

RING,RETAINING(10)

7710433

$4.76

21

SPKT, 11T

3221058

$74.99

22

WASHER(10)

7555734

$0.79

23

SPACER, CHAIN GUARD

5333244

Unavailable

24

WASHER FLAT(10)

7555701

$3.97

25

BOLT(10)

7515321

Unavailable

26

DECAL,LUBRICATION

7074214

Unavailable

27

GUARD,CHAIN,CTR.

5431717

Unavailable

28

BOLT(10)

7515346

$5.56

29

WASHER(10)

7552606

$4.76

30

WASHER(10) Substituted by 7558402

7555770

$0.99

31

Decal - Demand 4 Drive (See Pg., Ref.)

----

Unavailable

32

WASHER(10)

7555935

$2.38

33

BOLT(10)

7512269

Unavailable

33

BOLT(10)

7512269

Unavailable

34

WASHER(10)

7552605

$5.69

35

NUT, SPEED(10)

7670060

$3.97

36

NUT-LOCK(10)

7542122

$1.19

37

NUT LOCK(10)

7542403

Unavailable

38

BOLT(10)

7515472

$2.38

39

NUT(10)

7542404

$1.59

40

BOLT(10)

7515485

$3.02
