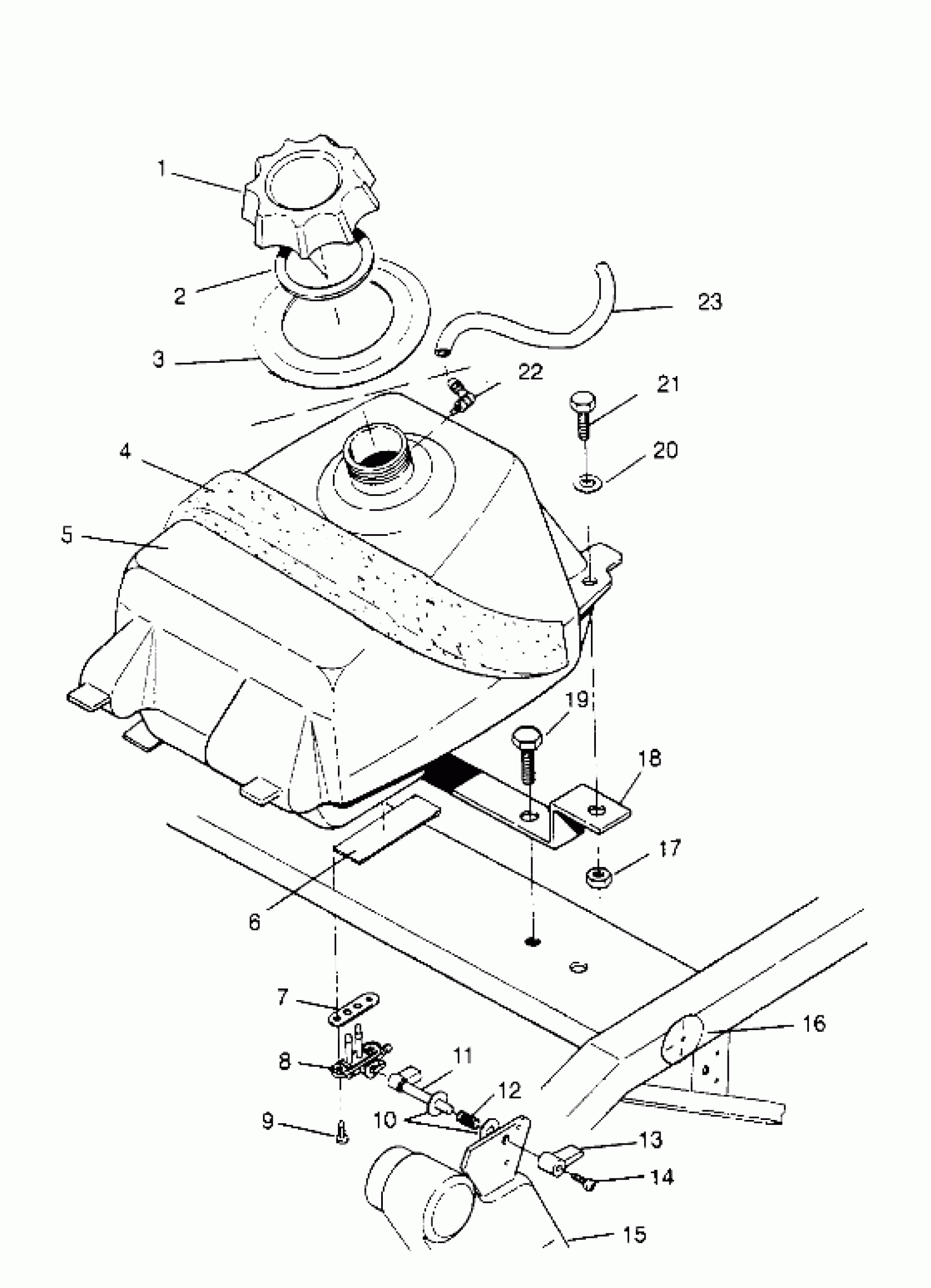

Polaris SCRAMBLER 4X4 - W957840 FUEL TANK ASSEMBLY Scrambler W957840 (4927252725A012) Diagram

#

Description
Price

1

CAP, GAS, (BLACK)

5430725

$24.27

2

GASKET-GAS CAP

5810144

$5.59

3

GROMMET,FUELTANK

5410842

Unavailable

4

Foam, Seal

5811052

Unavailable

5

TANK,FUEL Substituted by 2511323

5430968

Unavailable

6

PAD,FUELTANK BRKT. Substituted by 8360026

5810317

Unavailable

7

Gasket, Fuel Valve

5810859

$6.39

8

VALVE ASM, FUEL

7051006

$51.99

9

SCREW(10)

7515136

$1.49

10

WASHER(10)

7555726

$1.59

11

EXT.,FUEL LEVER

5431391

$7.19

12

SPRING,LEVER,COMPRESS.

7041209

$7.19

13

Lever, Fuel

5431021

$4.79

14

SCREW(10)

7511840

Unavailable

15

DUCT,INLET,DOWNTUBE Substituted by 5432337

5431870

Unavailable

16

DECAL,FUEL LEVER

7074637

Unavailable

17

NUT-5/16-18 NYLOK-Y

7542324

$1.49

18

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

19

BOLT(10)

7512232

$1.49

20

WASHER(10)

7555734

$1.49

21

SCREW(10)

7512310

$2.39

22

Vent, Tank

5431053

$19.99

23

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable
