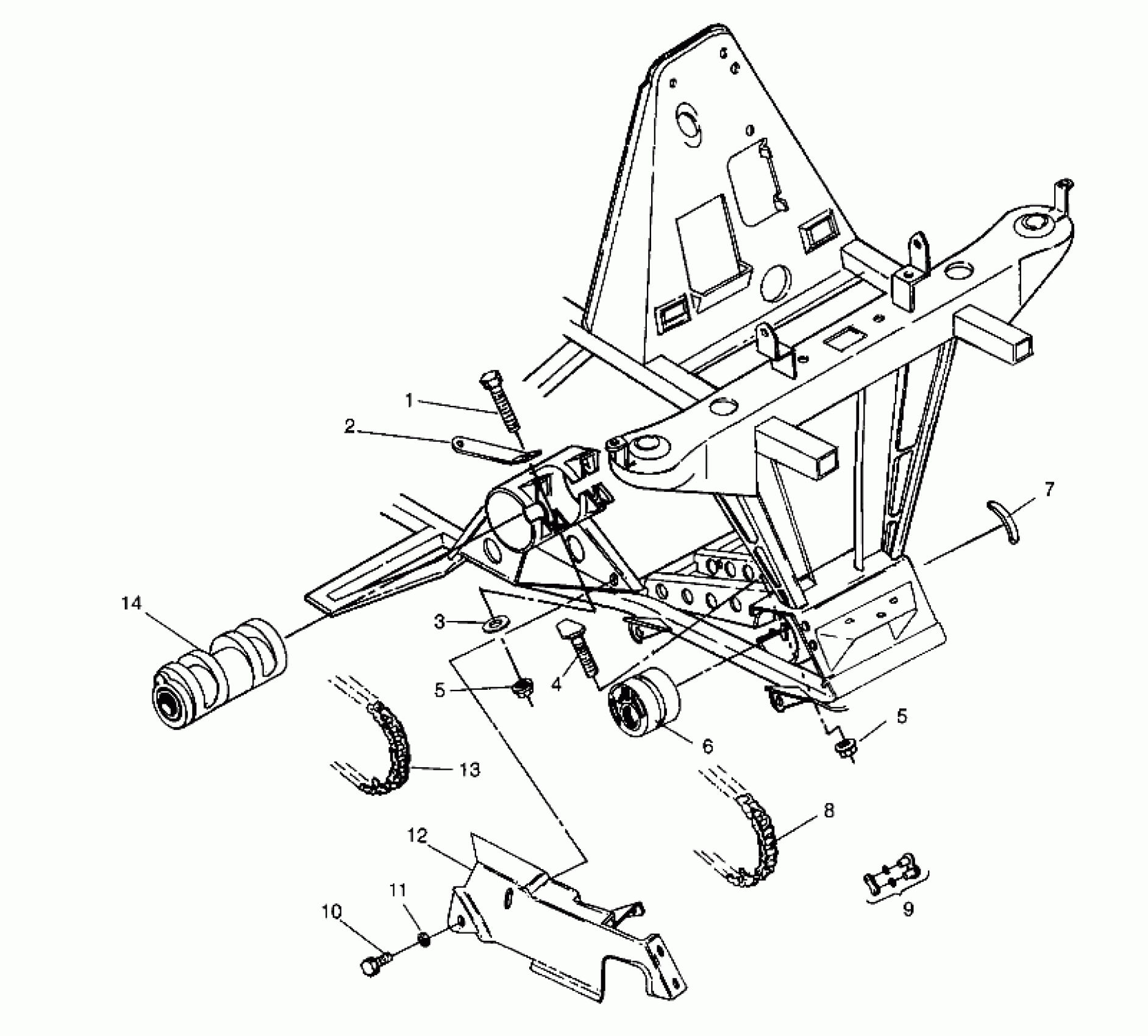

Polaris SCRAMBLER 4X4 - W957840 FRONT DRIVE ASSEMBLY Scrambler W957840 (4927252725B002) Diagram

#

Description

Price

1

BOLT(10)

7512583

Unavailable

2

BRKT,UP.COVER MT.

5222270-067

Unavailable

3

WASHER(10)

7555883

$3.99

4

BOLT, FLAG(10)

7512577

Unavailable

5

NUT, LOCK,(10)

7542503

$10.39

5

NUT, LOCK,(10)

7542503

$10.39

6

Asm., Front Tightener (See Pg. B2 for Details)

-------

Unavailable

7

SPACER,F.ECCENTRIC Substituted by 5811519

5431095

Unavailable

8

CHAIN, DRIVE Substituted by 3224056-064

3224041

Unavailable

9

CONNECTOR LINK,CHAIN

3225026

Unavailable

10

BOLT(10)

7512232

$1.49

11

WASHER(10) Substituted by 7558301

7555776

Unavailable

12

GUARD,CHAIN,FRONT

5431472

Unavailable

13

CHAIN, DRIVE Substituted by 3224056-070 (70P)

3224044

Unavailable

14

ASM., CENTER TIGHTENER (See Center Tightener Asm. Pg. B14 for Details)

-------

Unavailable
