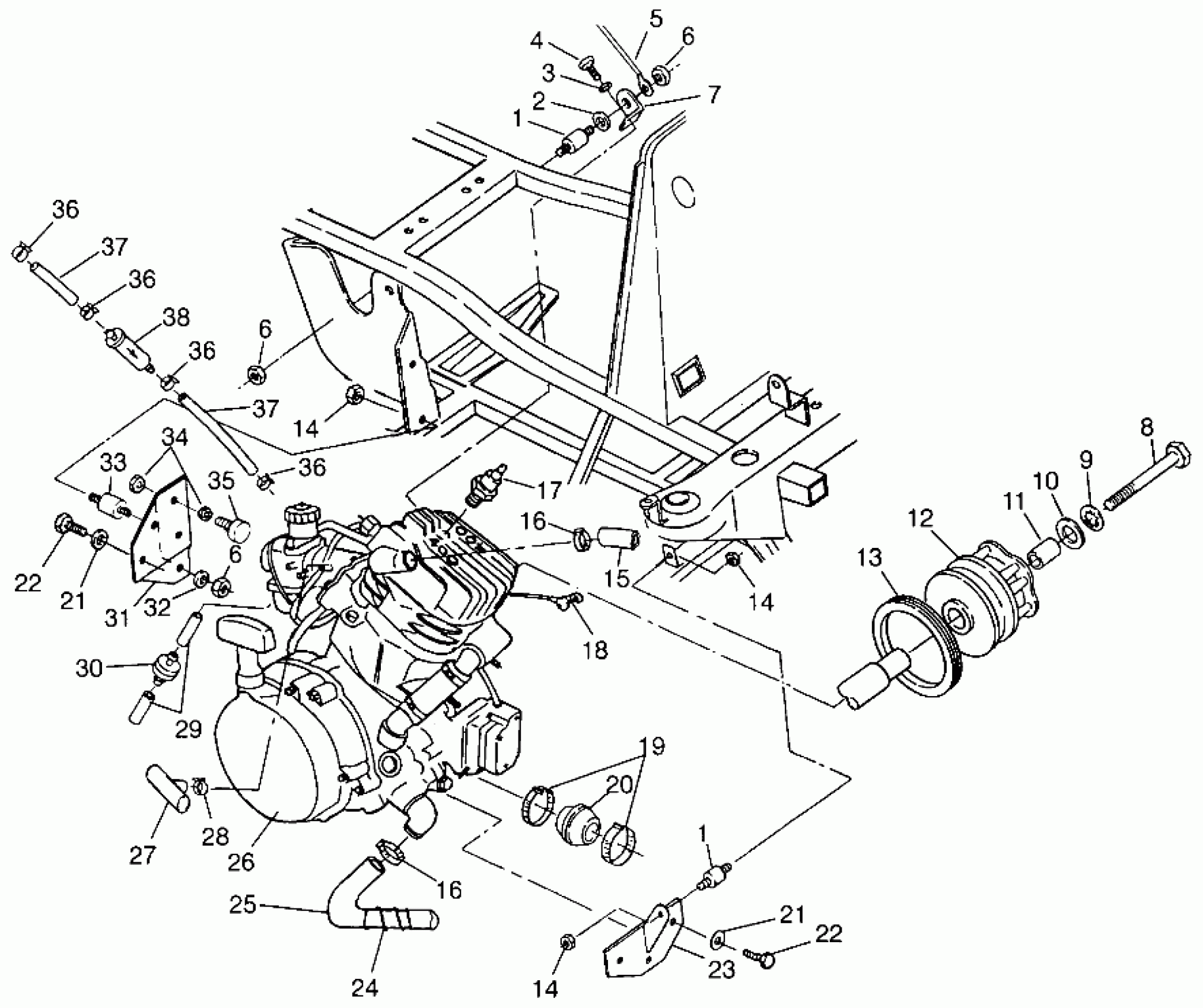

Polaris SCRAMBLER 4X4 - W957840 ENGINE MOUNTING Scrambler W957840 (4927252725A009) Diagram

#

Description
Price

1

MT.,RUBBER,ENG.

3110038

Unavailable

1

MT.,RUBBER,ENG.

3110038

Unavailable

2

INSULATOR,MOTOR MT.

5430802

$28.32

3

LOCK WASHER(10)

7552901

$1.19

4

BOLT(10)

7515321

Unavailable

5

CABLE,GROUND/ENG.

4010067

Unavailable

6

NUT LOCK(10)

7542411

$3.17

6

NUT LOCK(10)

7542411

$3.17

6

NUT LOCK(10)

7542411

$3.17

7

MOUNT,ENG.TOP

5222415-067

Unavailable

8

BOLT(10)

7512566

$33.24

9

WASHER-7/16-INT LK-(1222)-Z

7575202

$4.76

10

WASHER-.440X1.25X.190 FL-Y

5210748

$3.97

11

BUSHING-.437 X.770 X.50

5430261

$7.14

12

Asm., Drive Clutch (See Pg., Ref.)

----

Unavailable

13

Seal, Cover Case (See Pg., Ref.)

----

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

14

NUT LOCK(10)

7542403

Unavailable

15

HOSE,ENG,UPPER

5410570

$48.56

16

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

16

CLAMP-HOSE Substituted by 7080547

7080225

Unavailable

17

SPARKPLUG (10)

3070156

$3.97

18

CABLE,SOLENOID/STARTER

4010064

Unavailable

19

CLAMP, NARROW BAND(10)

7080511

$4.76

20

BOOT,CLUTCH INTAKE(400)

5410883

$7.94

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

21

WASHER SPRINGLOCK(10) Substituted by 7552603

7553001

$0.79

22

SCREW(10)

7512490

$3.97

22

SCREW(10)

7512490

$3.97

23

MOUNT,ENGINE

1040231-067

Unavailable

24

SPRING,HOSE RETAINER

7041079

$4.92

25

HOSE,LOWER ENGINE Substituted by 5411173

5410572

$97.13

26

ENG.(S.B.)EC38PL-SB [No Longer Available]

3084718

Unavailable

27

BOTTLE,BOOST

5431982

$15.56

28

CLAMP(10)

7080533

$3.97

29

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

30

CHECKVALVE,VENT Substituted by 7051011

7052047

Unavailable

31

MOUNT, REAR MOTOR, BLK.

5240542-067

$13.27

32

WASHER(10)

7555801

$3.97

33

MOUNT,RUBBER,ENG.

3110042

Unavailable

34

NUT, JAM(10)

7542432

$3.97

35

MT,TORQUE STOP,RUBBER

3110048

$7.38

36

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$0.79

36

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$0.79

36

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$0.79

36

CLAMP-HOSE, (LARGE GREEN) (Large Green)

7080307

$0.79

37

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

37

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

38

FILTER,SMALL,IN-LINE,(10)

2530009

$6.46
