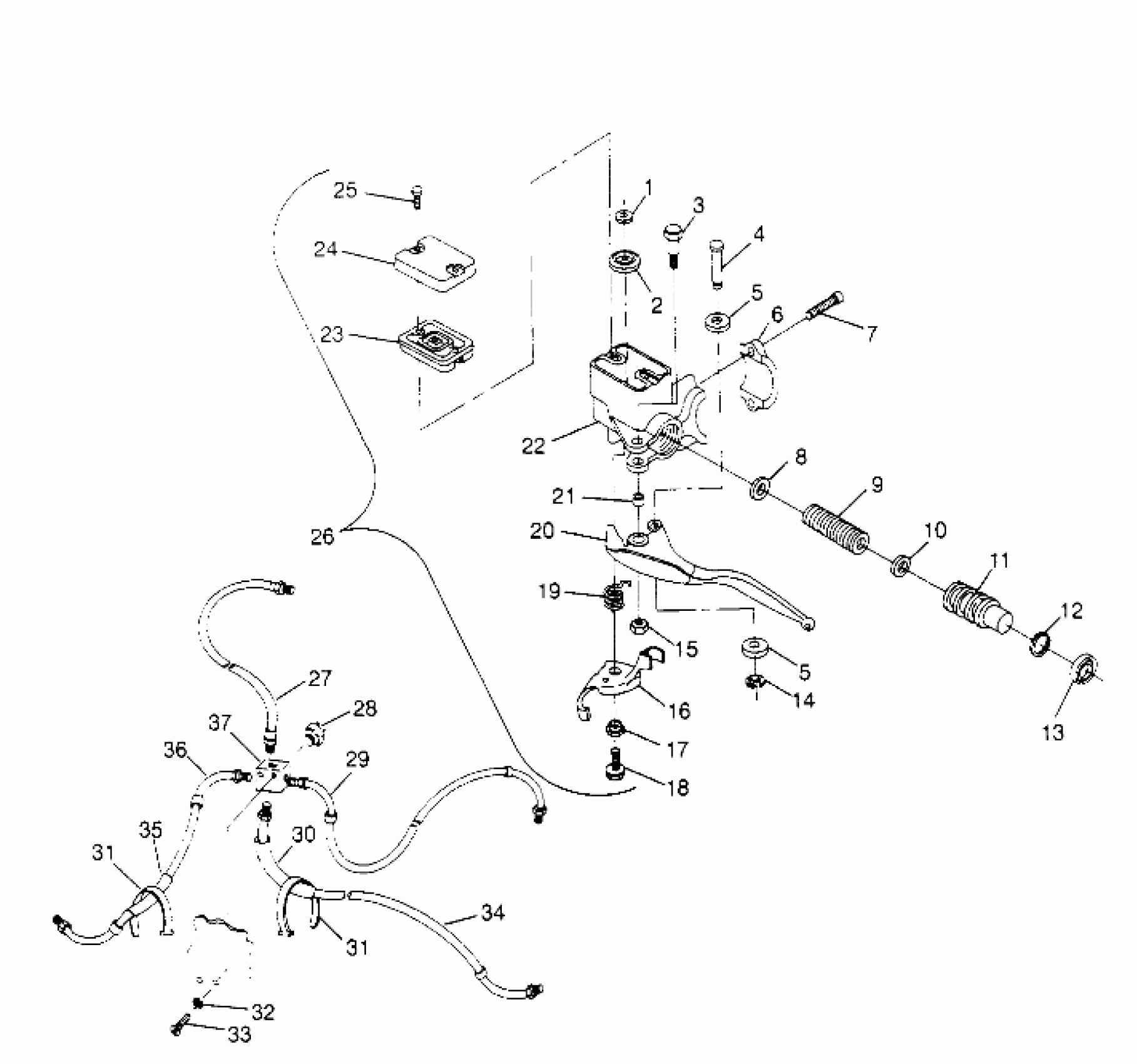

Polaris SCRAMBLER 4X4 - W957840 CONTROLS - MASTER CYLINDER/BRAKE LINE Scrambler W957840 (4927252725B012) Diagram

#

Description
Price

1

WASHER, BAFFLE(10)

1930662

Unavailable

2

BAFFLE,MASTER CYL.

1930673

Unavailable

3

BOLT,BRAKE LEVER(10)

7512287

Unavailable

4

PIN,BRAKELEVER ROLLER

7661627

Unavailable

5

ROLLER, BRAKE LEVER

5020598

Unavailable

5

ROLLER, BRAKE LEVER

5020598

Unavailable

6

CLAMP, MASTER CYL.

5630342

Unavailable

7

BOLT,SOCKET HEAD(10)

7512290

$4.79

8

WASHER(10)

7555708

$3.99

9

SPRING, MASTERCYL.

7041311

Unavailable

10

SEAL, CUP,(ATV)

5410994

Unavailable

11

PISTON, MASTER CYL.

5020671

$47.99

12

O RING

5410163

$1.60

13

SEAL, OIL

3610022

Unavailable

14

RING, RETAINING(10)

7710425

Unavailable

15

NUT(10)

7542124

Unavailable

16

LEVER,PARKBRAKE,ATV

5240865

Unavailable

17

BUSHING,PK.BRAKE LEVER

5020670

Unavailable

18

SCREW(10)

7511876

Unavailable

19

SPRING,PK.BRAKE

7041229

$32.37

20

LEVER, BRAKE,(ATV)

5630455

Unavailable

21

BUSHING,BRAKE LEVER

5332931

Unavailable

22

HOUSING,MASTERCYL.

5130955

$293.65

23

GASKET,MASTER CYL.

5410527

$8.99

24

COVER,MASTER CYL.

5630338

Unavailable

25

SCREW,W/WASHER(10)

7512050

$3.99

26

MASTER CYL.ASM. Substituted by 2050073 (Incl. 1-25)

2050062

$235.51

27

LINE,UP.BRAKE,W/FTGS.

1930762

Unavailable

28

SWITCH,STOPLIGHT

4110164

Unavailable

29

LINE,BRAKE,REAR

1930751

Unavailable

30

CONDUIT, 30 CM. Substituted by 8360011-34

8360031-30

Unavailable

31

STRAP, BLK

7080272

Unavailable

31

STRAP, BLK

7080272

Unavailable

32

WASHER,TOOTH-LOCK(10)

7555780

Unavailable

33

SCREW(10)

7512027

$1.49

34

LINE,BRAKE,LH,FR,W/FITTINGS

1930752

$87.99

35

CONDUIT, 38 CM.

8360031-38

$2.63

36

LINE,BRAKE,RH,FR.W/FITTINGS

1930753

$87.99

37

FITTING,CROSS INVERT.FLARE

7052103

Unavailable
