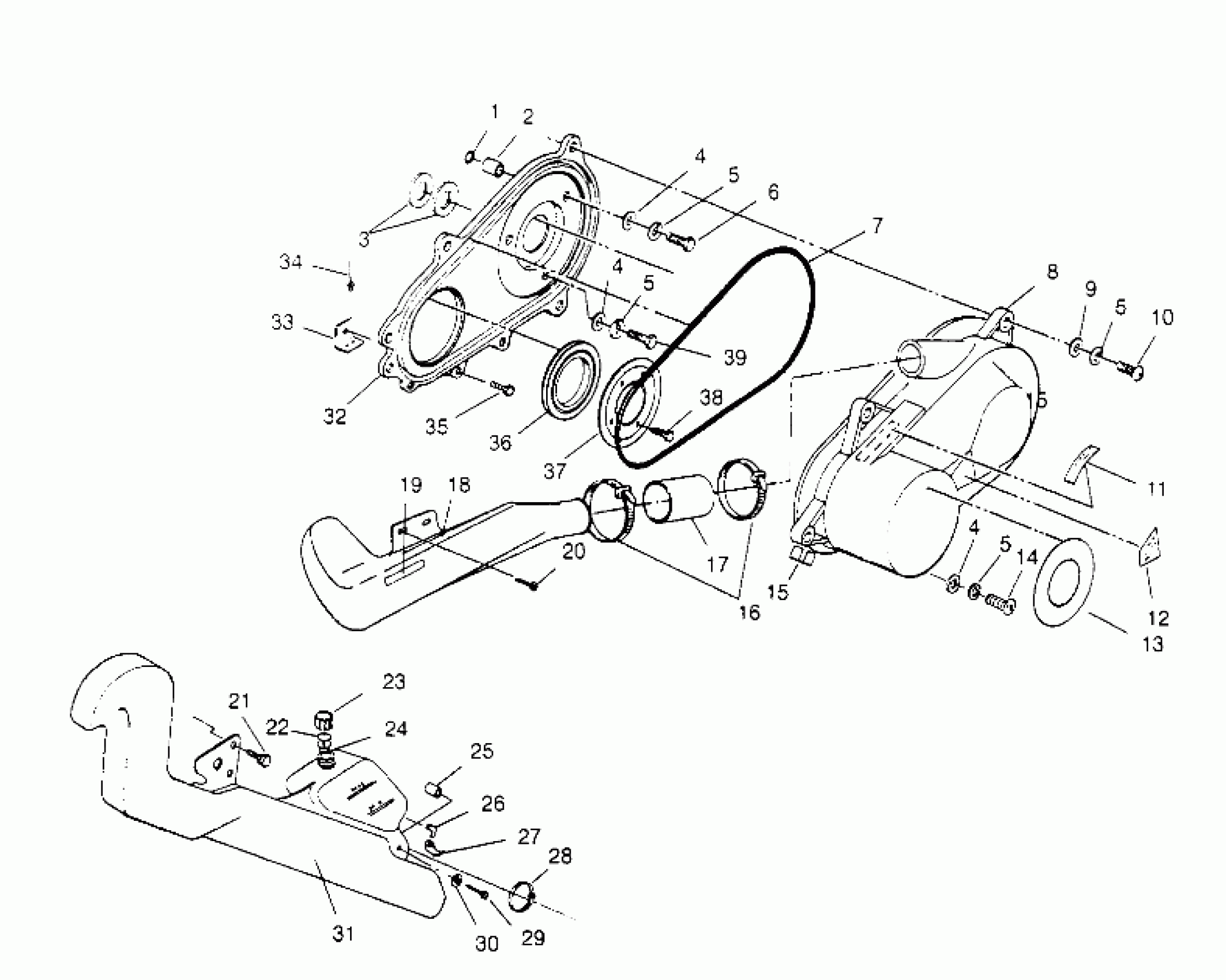

Polaris SCRAMBLER 4X4 - W957840 CLUTCH COVER ASSEMBLY Scrambler W957840 (4927252725C006) Diagram

#

Description
Price

1

O RING

5410565

Unavailable

2

SPACER

5333062

Unavailable

3

SEAL,COVER CASE

5410489

$13.59

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

4

WASHER-.28X.62-.14(RBR-BK)-Z

7555748

$4.79

5

WASHER(10)

7552605

$5.27

5

WASHER(10)

7552605

$5.27

5

WASHER(10)

7552605

$5.27

5

WASHER(10)

7552605

$5.27

6

BOLT(10)

7512277

$4.79

7

SEAL,CLUTCHCOVER

5521301

$30.88

8

COVER, CLUTCH,FRONT

5430771

Unavailable

9

WASHER(10) Substituted by 7558301

7555776

Unavailable

10

BOLT(10)

7512281

$3.99

11

DECAL(CPSC),CLUTCH COVER Substituted by 7074946

7072787

Unavailable

12

DECAL(CPSC),ENG/CLUTCH MOD. [No Longer Available]

7072789

Unavailable

13

DECAL,AUTO.TRANSMISSION

7074782

Unavailable

14

SCREW(10)

7512222

$2.39

15

CLIP,CLUTCH COVER(10)

7670051

$2.99

15

CLIP,CLUTCH COVER(10)

7670051

$2.99

16

CABLE-TIE,25-76MM,WEATH.-RES.

7080492

$2.41

17

BOOT,CLUTCH INTAKE

5410421

$11.19

18

DUCT, AIR OUTLET, CLUTCH Substituted by 5432615

5431671

Unavailable

19

DECAL"DEMAND-4-DRIVE"

7074892

Unavailable

20

BOLT(10)

7512232

$1.49

21

SCR-#10-24X3/4,PN/TR RD-TORX-Y

7512018

$3.19

22

GASKET-OVERFLOW CAP

5810279

$2.41

23

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

24

PLUG,CAP Substituted by 5433774

5431895

Unavailable

25

SPACER

5020577

Unavailable

26

FITTING,90 DEGREE

7052065

$7.19

27

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

$84.99

28

CLAMP, NARROW BAND(10)

7080511

$4.79

29

SCREW(10)

7512025

$4.79

30

WASHER(10)

7555783

$3.99

31

DUCT,INLET,DOWNTUBE Substituted by 5432337

5431870

Unavailable

32

COVER,CLUTCH,INNER Substituted by 2200792

5431716

$294.99

33

BRKT,CLUTCH COVER,BLK.

5241213-067

Unavailable

34

RIVET,3/16X.402(50)

7621432

$1.49

35

BOLT(10)

7512261

$4.99

36

Seal, Cover Case

5410575

Unavailable

37

BRKT,RETAINER,SEAL

5222446-067

Unavailable

38

SCREW & WASHER(10)

3084205

$3.99

39

BOLT(10)

7512278

Unavailable
