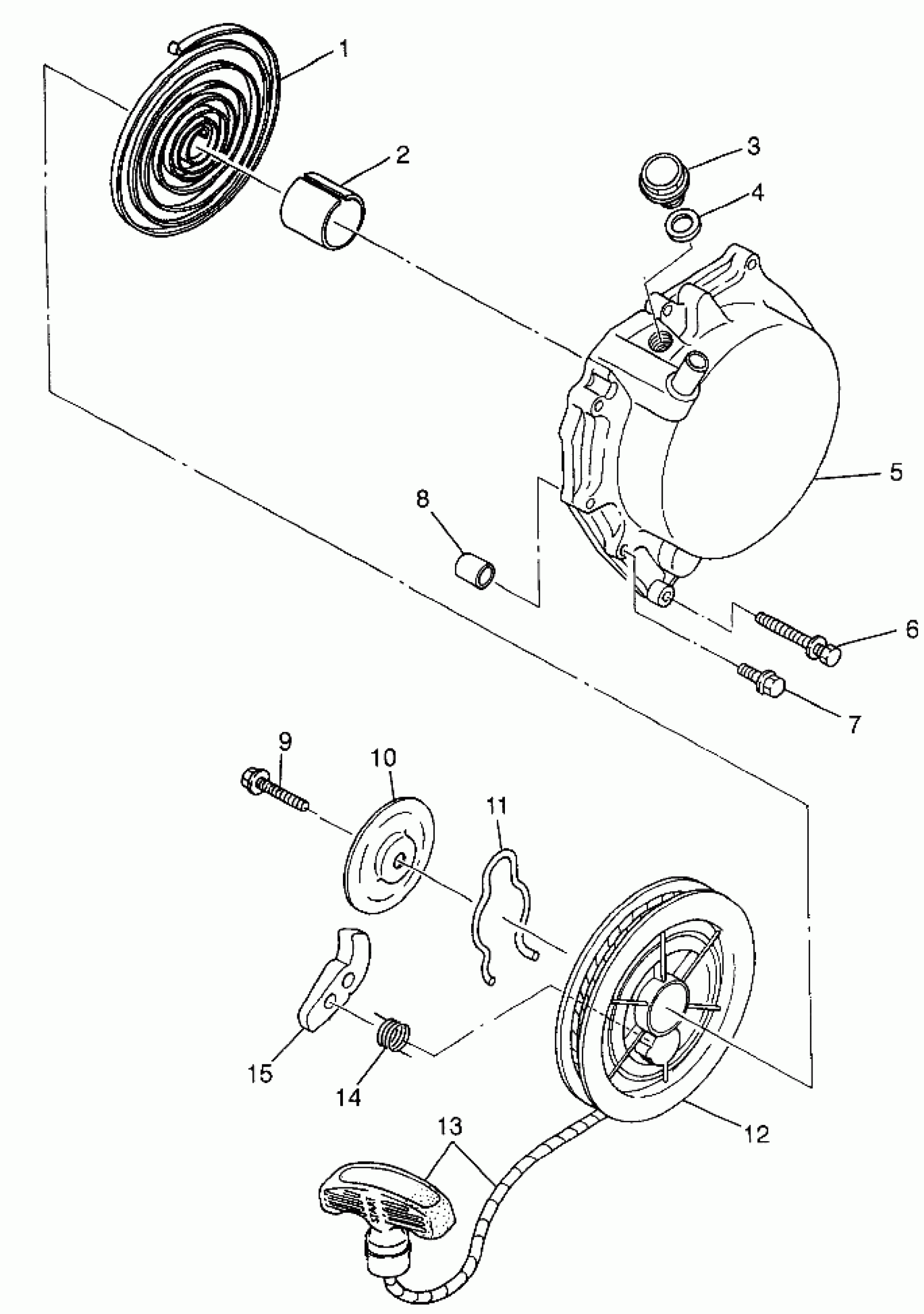

Polaris SCRAMBLER 400 - W98BC38C RECOIL STARTER - W98BC38C (4947254725d006) Diagram

#

Description
Price

1

SPRING

3083185

$32.95

2

BUSH

3084750

$7.19

3

PLUG Substituted by 3086749

3083453

Unavailable

4

GASKET

3082956

$4.84

5

STARTER ASM,RECOIL (Incl. 1,2,5,9-15)

3085651

Unavailable

5

CASE,STARTER

3085656

Unavailable

6

BOLT&WASHER

3084782

Unavailable

7

BOLT, FLANGE Substituted by 3086751

3084177

Unavailable

8

BUSHING, STARTER

3083669

Unavailable

9

BOLT&WASHER ASM.

3085266

Unavailable

10

Plate, Friction

3084744

Unavailable

11

Spring, Friction

3083379

$24.27

12

REEL,STARTER

3084822

$87.99

13

ROPE ASM

3085083

$39.99

14

Spring, Return

3083463

$4.03

15

Ratchet

3083378

$20.22
