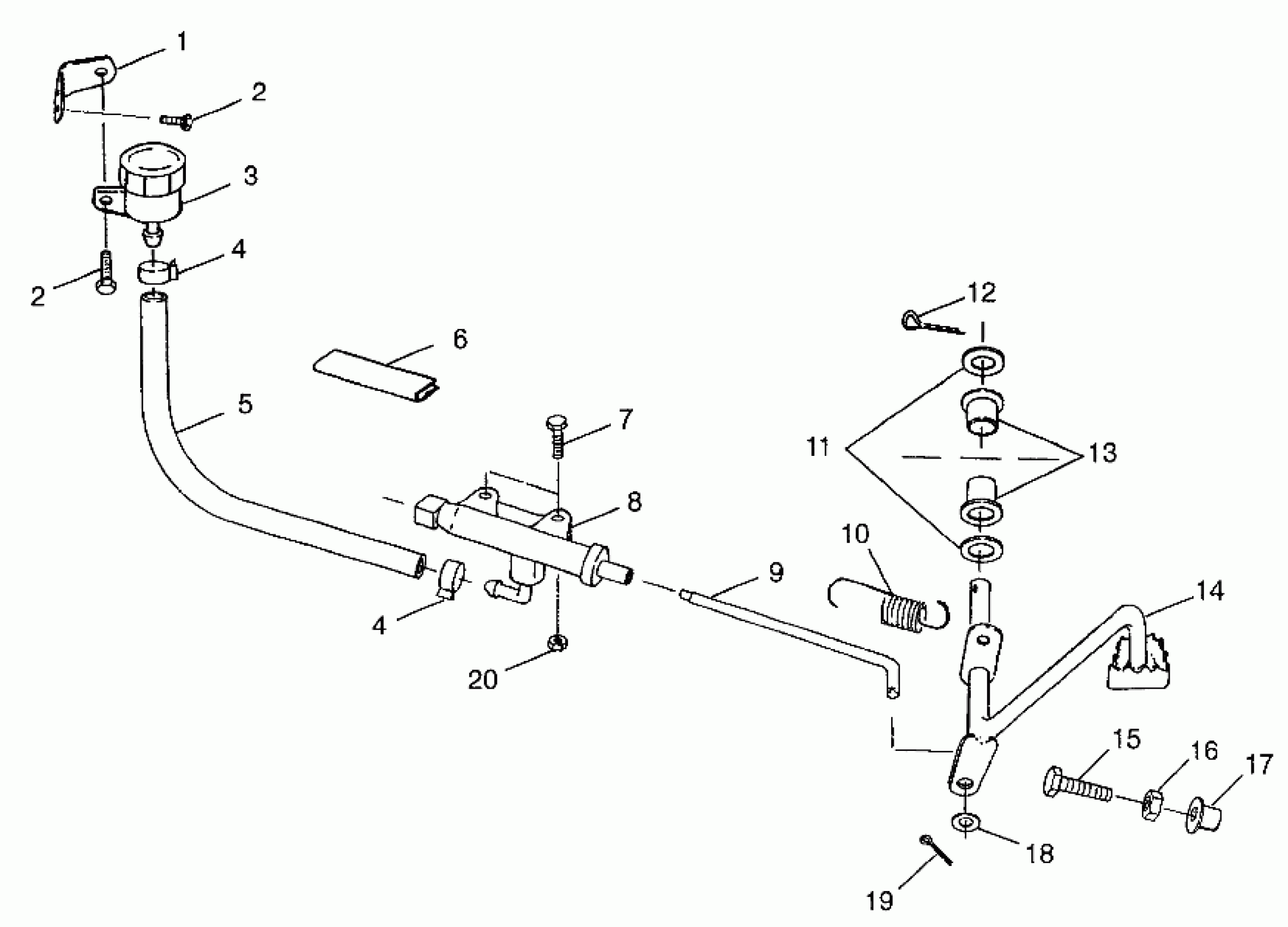

Polaris SCRAMBLER 400 - W98BC38C REAR BRAKE MASTER CYLINDER Scrambler 400 W98BC38C (4947254725C003) Diagram

#

Description
Price

1

BRKT,RESERVOIR,BLK

5242614-067

$5.11

2

SCREW(10)

7512208

$2.74

2

SCREW(10)

7512208

$2.74

3

RESERVOIR ASM,R.BRAKE

1930854

$36.41

4

HOSE CLAMP, RED

7080003

$1.19

4

HOSE CLAMP, RED

7080003

$1.19

5

HOSE,RESERVOIR,HYBRID

1930889

Unavailable

6

EDGE TRIM - BLACK Substituted by 5521131

8360012

$44.51

7

BOLT(10)

7512247

Unavailable

8

MASTER CYL.ASM,FOOTBRAKE

1930899

Unavailable

9

ROD,BRAKE,HYBRID

5242789

Unavailable

10

SPRING,EXTENSION

7041720

Unavailable

11

WASHER(10)

7555919

$4.99

12

COTTER PIN(10)

7661401

$0.79

13

BUSHING-PEDAL PIVOT

5431107

$8.73

14

FOOTBRAKE,HYBRID,BLK.

1910275-067

Unavailable

15

BOLT(10)

7512103

$3.17

16

NUT HEX(10)

7542105

$3.97

17

NUTSERT,HEX(10)

7547069

$3.97

18

WASHER(10)

7555806

$0.79

19

PIN COTTER(10)

7661203

$1.19

20

NUT-LOCK(10)

7542122

$1.19
