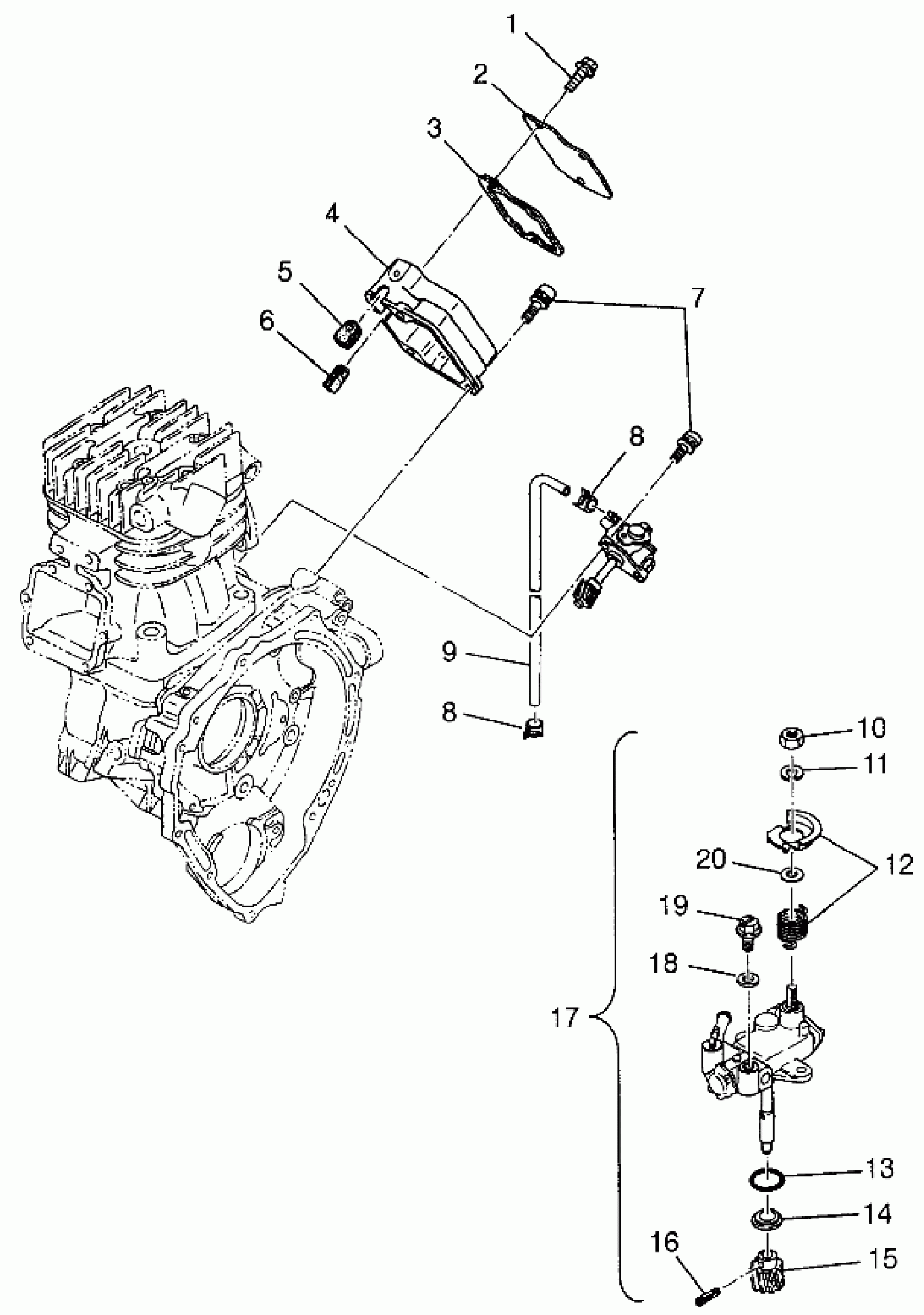

Polaris SCRAMBLER 400 - W98BC38C OIL PUMP - W98BC38C (4947254725d004) Diagram

#

Description
Price

1

BOLT&WASHER ASM.(10)

3084757

Unavailable

2

COVER, OILPUMP CASE (Oil Pump Case)

3085281

Unavailable

3

GASKET,OILPUMP CASE (Oil Pump Case)

3085280

Unavailable

4

CASE, OILPUMP (Oil Pump)

3085520

$23.65

5

GROMMET Substituted by 3086777

3084201

Unavailable

6

GROMMET Substituted by 3086779

3084758

Unavailable

7

SCREW&WASHER,(10)

3083783

$2.38

8

CLAMP-HOSE,(10)

3083141

$1.19

8

CLAMP-HOSE,(10)

3083141

$1.19

9

PIPE, RUBBER Substituted by 3086776

3084199

Unavailable

10

NUT(10)

3083120

$2.19

11

WASHER-SPRING(10)

3083121

$395.22

12

SPRING&LEVER SET(FOR 3085285)

3085571

Unavailable

13

O RING

3083127

Unavailable

14

Spacer

3084195

Unavailable

15

Wheel

3084196

Unavailable

16

Pin, Spring

3084197

Unavailable

17

PUMP, OIL (Incl. 10-19)

3085285

Unavailable

18

Washer

3084194

$6.19

19

SCREW-AIR VENT

3083125

Unavailable

20

COLLAR, CAMSHAFT(10)

3083445

$1.64
