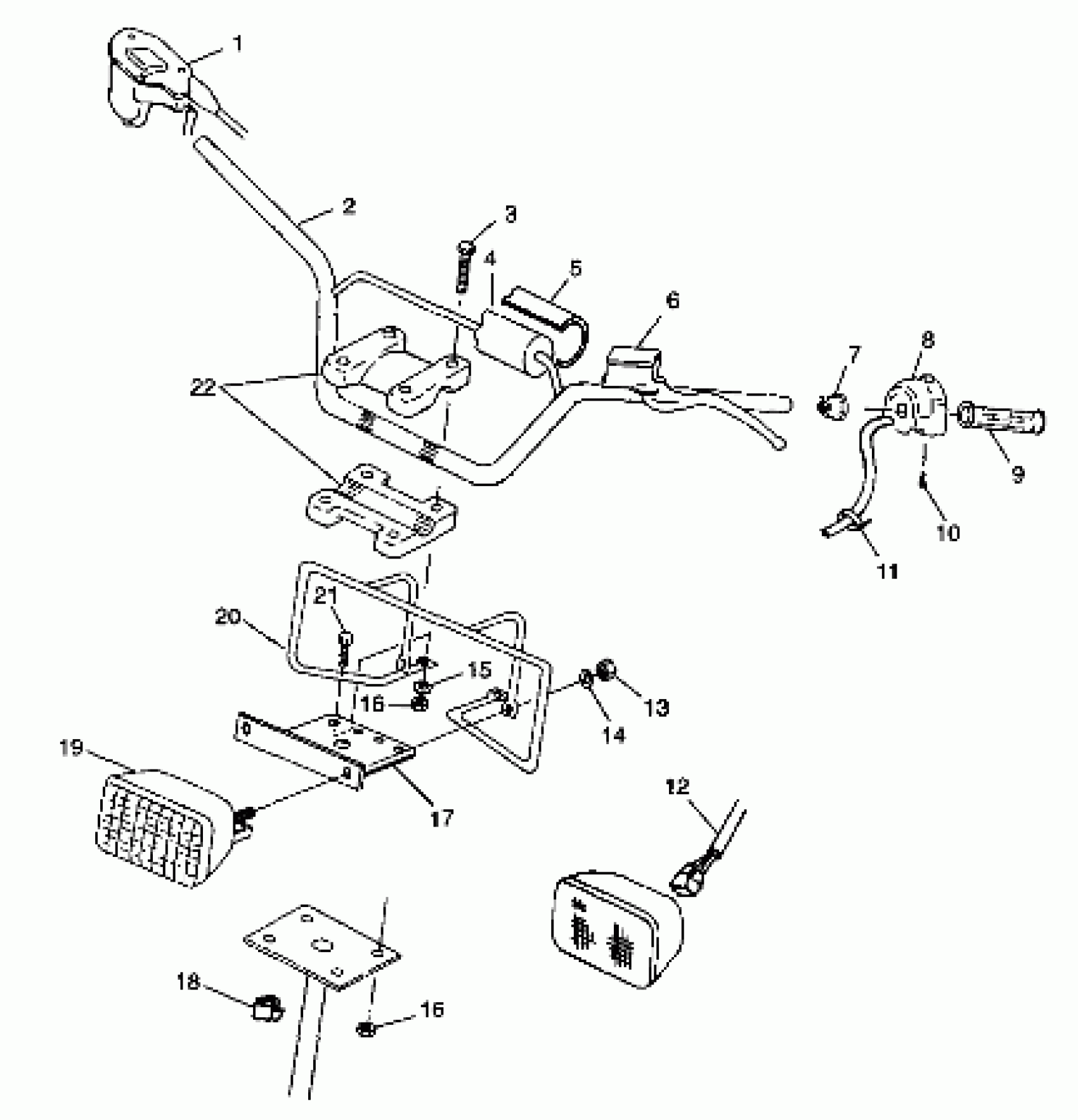

Polaris SCRAMBLER 400 - W98BC38C HANDLEBAR/HEADLIGHT Scrambler 400 W98BC38C (4947254725B009) Diagram

KIT,H'BAR BLOCK (Incl. 3, 16, 22)

2200774

Unavailable

Asm., Throttle Control (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

HANDLEBAR,BLK. Substituted by 1820594-067

1823173-067

Unavailable

SCREW(10)

7515189

Unavailable

Pad, Handlebar

5521181

Unavailable

COVER ASM,H'BAR PAD

2690149

$39.67

Asm., Master Cylinder (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

SPACER,SWITCH,LH

5432926

$2.63

SWITCH,HI/LOW/OFF,LH,H'BAR

4110193

$184.99

GRIP, HANDLEBAR

5431030

$24.27

SCREW

2010055

Unavailable

CLAMP, POLY

7080303

Unavailable

HARNESS,H/L,HI/LO

2460612

Unavailable

NUT-5/16-18 NYLOK-Y

7542324

$1.49

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

WASHER(10)

7558301

$1.49

NUT-LOCK(10)

7542122

$1.49

NUT-LOCK(10)

7542122

$1.49

BRKT,H/L,BLK

5241973-067

Unavailable

CLIP,CABLE RETAIN,(10)

7080631

$6.29

BULB,H/L,30/30 W.

4030061

Unavailable

H/L ASM,35/35W,BOTT.MT.

2431016

Unavailable

GUARD,H/L,BLK.

1040579-067

Unavailable

BOLT(10) Substituted by 7512240

7512111

Unavailable

BLOCK,H'BAR RETAINER,BLK

5630616-067

Unavailable
