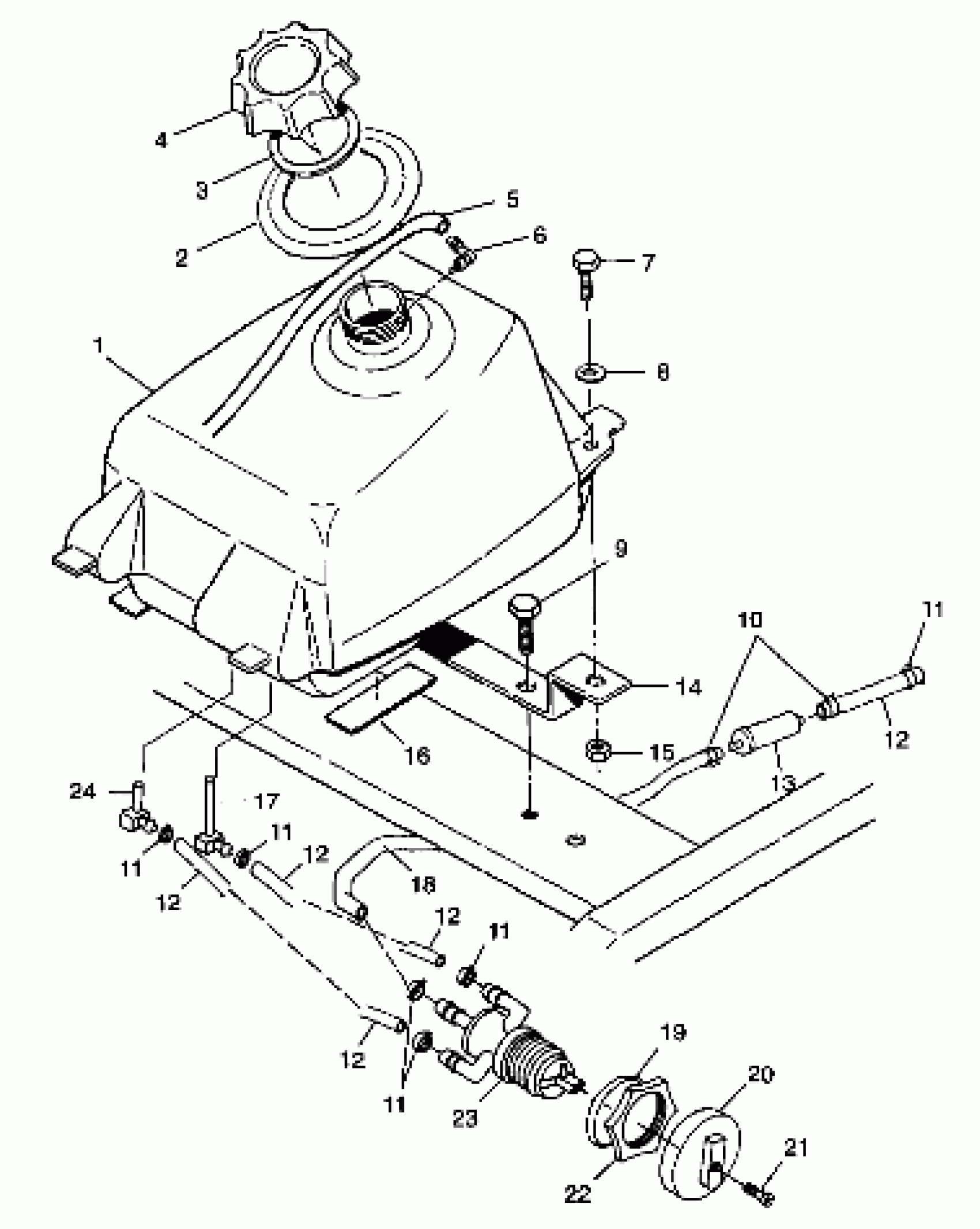

Polaris SCRAMBLER 400 - W98BC38C FUEL TANK Scrambler 400 W98BC38C (4947254725A013) Diagram

#

Description
Price

1

FUELTANK ASM,(300) Substituted by 1240048 (Incl. 6, 17, 24)

2511272

Unavailable

2

GROMMET,FUELTANK

5410842

Unavailable

3

GASKET-GAS CAP

5810144

$5.59

4

CAP, GAS, (BLACK)

5430725

$24.27

5

FUEL LINE,1/8 ID,600 CM.

8360009-600

Unavailable

6

Vent, Tank

5431053

$19.99

7

SCREW(10)

7512310

$2.39

8

WASHER(10)

7555734

$1.49

9

BOLT(10)

7512232

$1.49

10

CLAMP,SPRING,(10)

7080534

$1.59

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

11

HOSE CLAMP, RED

7080003

$1.49

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

12

FUEL LINE,1/4 ID(600 CM.)

8450040-600

Unavailable

13

FILTER,SMALL,IN-LINE,(10)

2530009

$5.65

14

BRKT,R.TANK MT,BLK.

5220916-067

Unavailable

15

NUT-5/16-18 NYLOK-Y

7542324

$1.49

16

PAD,BULK FUEL

8360026

Unavailable

17

ELBOW, MAIN

7052147

Unavailable

18

HOSE,FUEL,1/4 IN.

5411272

Unavailable

19

SPACER,FUEL VALVE

5242977

Unavailable

20

KNOB,FUEL VALVE

5432559

$10.39

21

SCREW(10)

7517505

$1.59

22

NUT,FUELVALVE,ATV

5432733

Unavailable

23

VALVE,3-WAY,HORIZ PORTS

7052154

$39.99

24

FITTING,FUEL OUT,90DEG,RES,Z

7052148

Unavailable
