Description

Price

1

BOLT(10)

7512325

$2.39

2

DISC,BRAKE,NOTCHED

5211869

Unavailable

3

SEAL, FR. HUB

3610019

$35.99

4

Plate, Armature

5211148

$23.99

5

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281 (Splined Drive Shaft)

1520214

$354.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

6

BRG,TAPER.ROLL.CONE

3554506

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

7

BRG,TAPER,ROLL CUP

3554507

$31.99

8

STUD(10)

7515523

$3.19

9

ASM, HUB, SHORT (Incl. 3, 7, 8)

1520243

Unavailable

10

Cage, Roll

3250028

$218.56

11

ROLLS

3250010

$35.99

12

SPRING,GARTER

3250032

$17.59

13

SPACER Substituted by 1321814 (Splined Drive Shaft)

3250031

$24.99

14

CAM (Splined Drive Shaft)

3250030

$198.48

15

PLUG,PIPE

7052045

$12.79

16

TIRE,23X7-10,TITAN (23x7x10), Titan

5411264

Unavailable

17

WASHER

7556004

$7.19

18

COTTER PIN(10)

7661401

$1.49

19

O RING

5410470

$2.41

20

CAP,HUB,3-LOBE,AWD

5432611

$14.39

21

SCREW(10)

7512027

$1.49

22

NUT, SLOTTED(10)

7542810

$3.19

23

NUT-HXFL-3/8-24 B ZTB P-A

7542459

$1.59

24

RIM,FRT.,WHITE

1520207-133

Unavailable

25

VALVE-RIM

1525017

$5.59

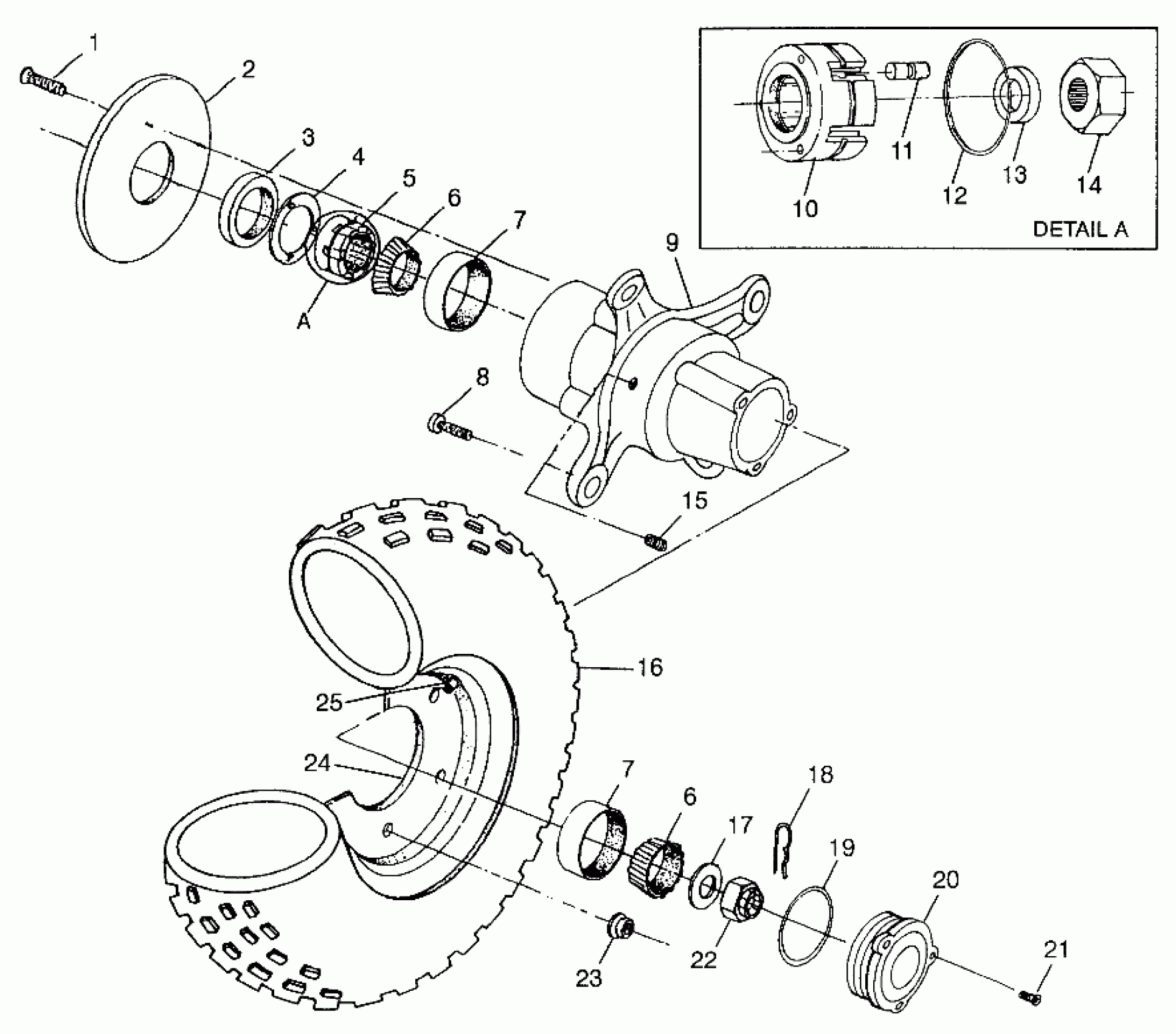

Polaris SCRAMBLER 400 - W98BC38C FRONT WHEEL Scrambler 400 W98BC38C (4947254725B006) Diagram

BOLT(10)

DISC,BRAKE,NOTCHED

SEAL, FR. HUB

Plate, Armature

CLUTCH ASM,FR.HUB,E/M,HVY. Substituted by 1520281 (Splined Drive Shaft)

BRG,TAPER.ROLL.CONE

BRG,TAPER.ROLL.CONE

BRG,TAPER,ROLL CUP

BRG,TAPER,ROLL CUP

STUD(10)

ASM, HUB, SHORT (Incl. 3, 7, 8)

Cage, Roll

ROLLS

SPRING,GARTER

SPACER Substituted by 1321814 (Splined Drive Shaft)

CAM (Splined Drive Shaft)

PLUG,PIPE

TIRE,23X7-10,TITAN (23x7x10), Titan

WASHER

COTTER PIN(10)

O RING

CAP,HUB,3-LOBE,AWD

SCREW(10)

NUT, SLOTTED(10)

NUT-HXFL-3/8-24 B ZTB P-A

RIM,FRT.,WHITE

VALVE-RIM
