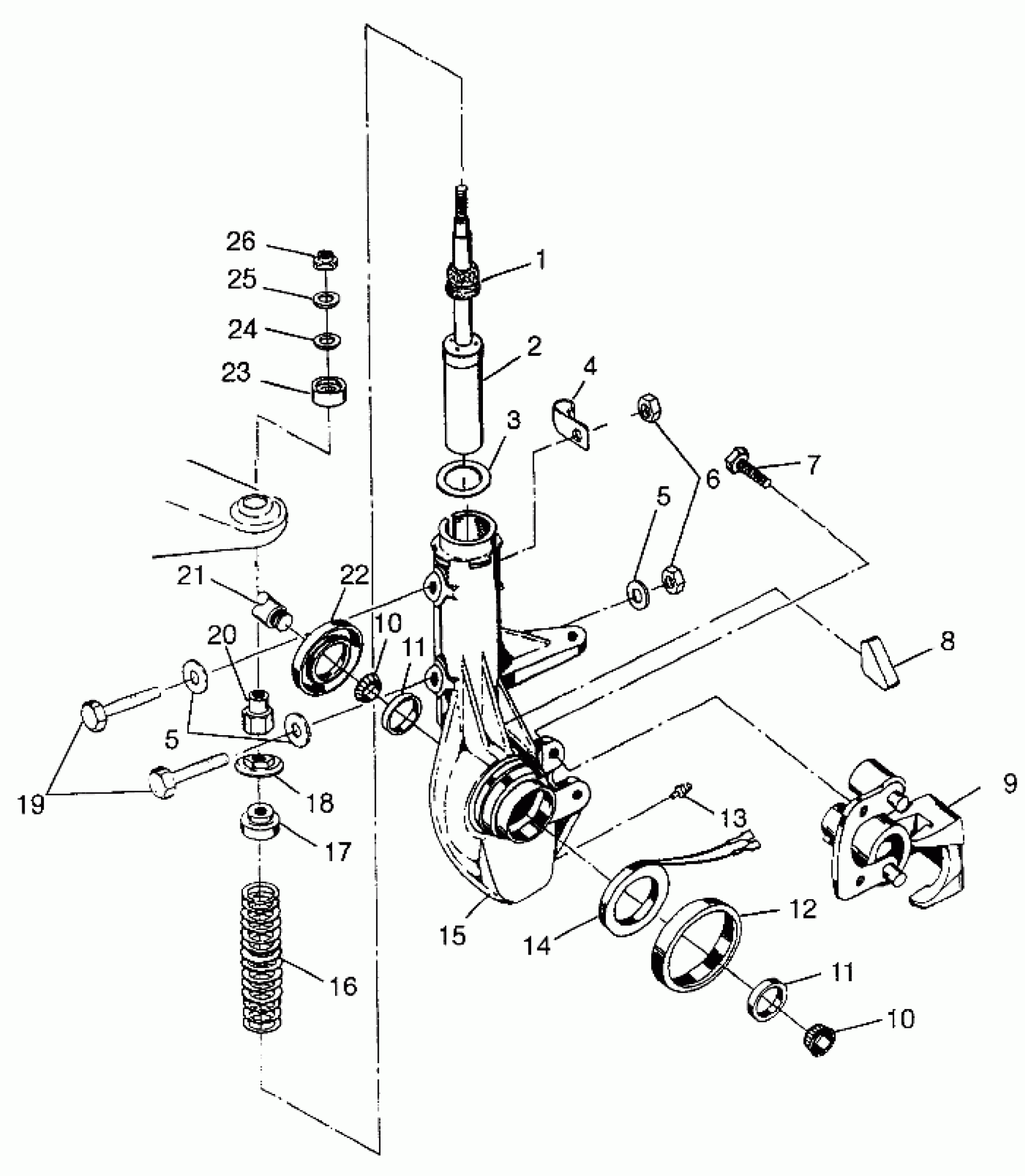

Polaris SCRAMBLER 400 - W98BC38C FRONT STRUT Scrambler 400 W98BC38C (4947254725B005) Diagram

#

Description
Price

1

BUMPER,STRUT

5411468

Unavailable

2

STRUT,FR,LT,32MM Substituted by 2201463

7041756

$168.87

3

WASHER-2.06X2.62X.105-Y

5211115

$3.99

4

CLAMP,RUBBER-COATED,.562(10)

7080573

$7.19

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

5

WASHER-.344X.688X.063 FL-Y

7558402

$1.49

6

NUT FLEX-LOC(10)

7542303

$6.39

7

SCREW

7517445

Unavailable

8

RETAINER,WIRE,STRUT CAST

5810439

Unavailable

9

Asm., Front Brake Caliper, RH (See Pg. NO TAG for Details)

-------

Unavailable

10

BEARING,TAPERED ROLLER

3554509

$23.99

10

BEARING,TAPERED ROLLER

3554509

$23.99

11

BRG,TAPER,ROLL CUP

3554507

$31.99

11

BRG,TAPER,ROLL CUP

3554507

$31.99

12

SLEEVE,STRUT HUB SEAL

5222193

$59.99

13

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.19

14

COIL,MAGN.,GRY,BRN/WHT,42" Substituted by 2201313

2410122

$121.41

15

HUBSTRUT ASM,RH,HVY Substituted by 2201312 (Incl. 8, 12-15)

2200767

Unavailable

15

HUBSTRUT ASM,LH,HVY Substituted by 2201311 (Incl. 8, 12-15)

2200766

Unavailable

16

SPRING,COIL(STRUT),LT.

7041603-067

Unavailable

17

RETAINER,SPRING,TOP

5220602

Unavailable

18

PIVOT BALL,BOTTOM Substituted by 5432871

5430807

Unavailable

19

SCR-HH-5/16-18X2.25 GR5 ZY3

7515339

$4.79

20

SPACER,THREADED

5130668

$27.99

21

Asm., Drive Shaft w/Sleeve (See Pg. NO TAG, Ref. NO TAG)

-------

Unavailable

22

SEAL, HUB STRUT

3610028

$31.99

23

PIVOT BALL, TOP Substituted by 5432872

5430806

Unavailable

24

SPACER-RUBBER

5810291

$3.99

25

WASHER(10)

7555749

$1.49

26

NUT,FLEX LOC(10)

7542507

$3.99
