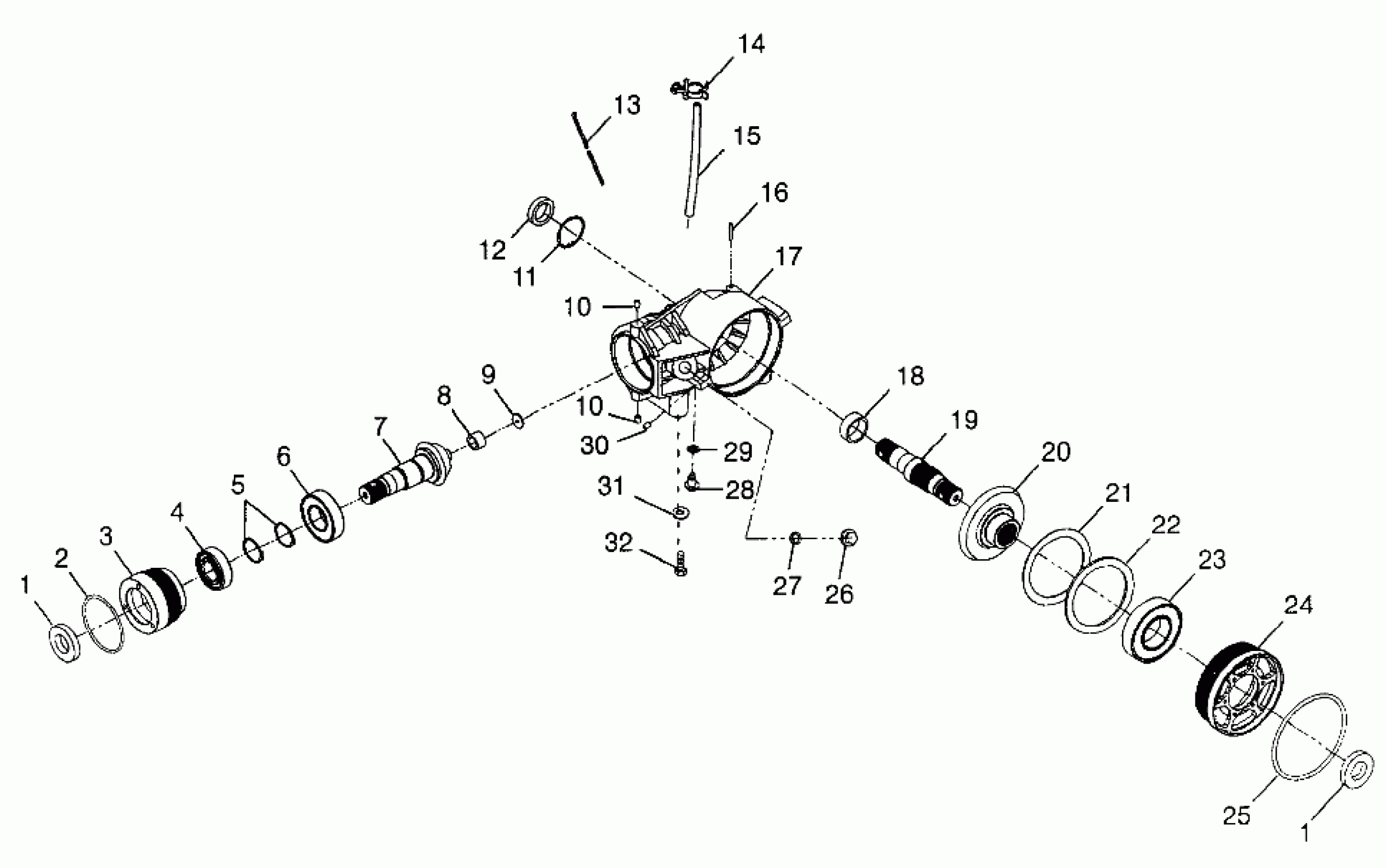

Polaris SCRAMBLER 400 - W98BC38C FRONT HOUSING Scrambler 400 W98BC38C (4947254725B003) Diagram

#

Description
Price

-

GEARCASE ASM,FRONT Substituted by 1341276 (Incl. 1-12, 16-25)

1341265

$1,204.99

1

Seal

3233248

$30.88

1

Seal

3233248

$30.88

2

O-RING

3233315

Unavailable

3

COVER,F.HSG INPUT

3233316

Unavailable

4

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

5

RING,RETAINING

3233306

$4.79

6

BEARING

3233020

$47.99

7

SHAFT,INPUT,FRONT HSG.

3233489

Unavailable

8

BEARING,NEEDLE

3233479

Unavailable

9

WASHER

3233480

Unavailable

10

SCREW SET

3233522

Unavailable

10

SCREW SET

3233522

Unavailable

11

RING,RETAINING

3233320

Unavailable

12

Seal

3233319

$27.99

13

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

14

CLAMP,WIRE ROUTING(10)

7080409

$2.39

15

FUEL LINE,1/4 ID(1525 CM.)

8450003-1525

Unavailable

16

TUBE,VENT

3233524

$7.19

17

HOUSING,FR.GEARCASE

3233523

Unavailable

18

BEARING,NEEDLE

3233326

Unavailable

19

SHAFT,O/P,FR.HSG.

3233327

Unavailable

20

GEAR,31T,FRT.HSG.

3233328

$160.82

21

WASHER,THRUST

3233346

Unavailable

22

WASHER,THRUST

3233347

Unavailable

23

BEARING,BALL

3233329

Unavailable

24

COVER,FR.HSG,OUTPUT

3233330

Unavailable

25

O-RING

3233331

Unavailable

26

DIPSTICK,(PLUG) Substituted by 3233711

3233325

Unavailable

27

Washer

3233324

$8.99

28

PLUG, DRAIN Substituted by 3233777

3233253

$34.99

29

PLUG, WASHER

3233254

$7.99

30

RIVET

3233463

Unavailable

31

WASHER(10)

7552603

$1.49

32

BOLT(10) Substituted by 7512492

7515458

Unavailable
